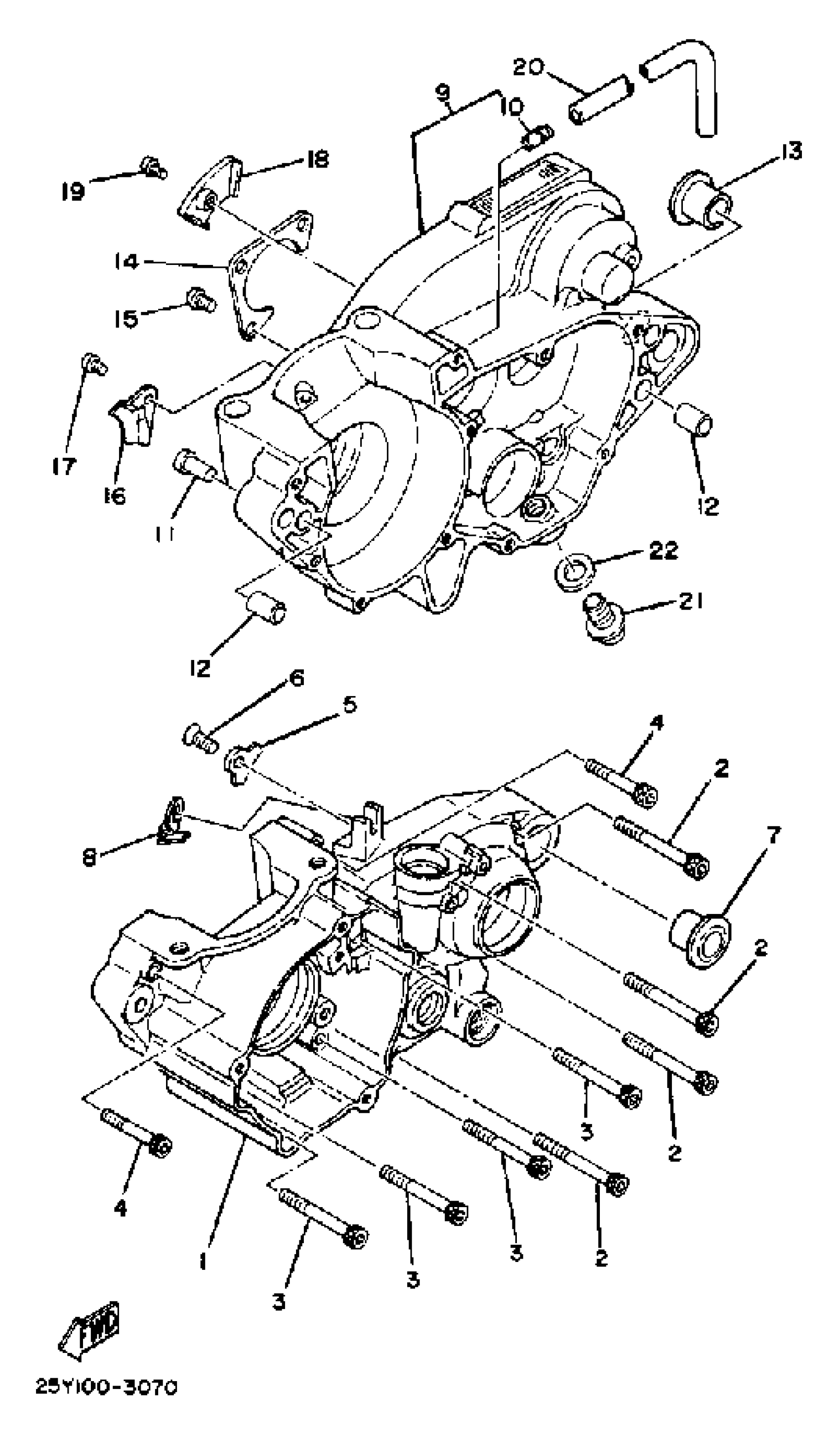

Yamaha IT250K (IT250) 1983 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

3R4-15111-03-00

Unavailable

2

BOLT,SOCKET

91317-06060-00

$3.76

3

BOLT,SOCKET

91317-06055-00

$4.19

4

BOLT,SOCKET

91317-06040-00

$3.76

5

PLATE, BEARING COVER

3AK-15383-01-00

$8.99

6

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

7

COLLAR

90387-160H4-00

Unavailable

8

HOLDER

3R4-26393-00-00

$56.99

9

CRANKCASE 2

3R4-15121-02-00

Unavailable

10

. CONNECTOR, SUCTION PIPE

137-13115-01-00

Unavailable

11

PLUG (17J)

90338-07124-00

$10.49

12

PIN, DOWEL

99530-12016-00

$4.89

13

COLLAR

90387-160H4-00

Unavailable

14

PLATE, BEARING COVER

23X-15381-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

HOLDER

3R4-15118-00-00

Unavailable

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

PLATE

3R4-15113-00-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

HOSE (L1500)

90445-084J0-00

Unavailable

21

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

22

GASKET (3JD1)

90430-12207-00

Unavailable
