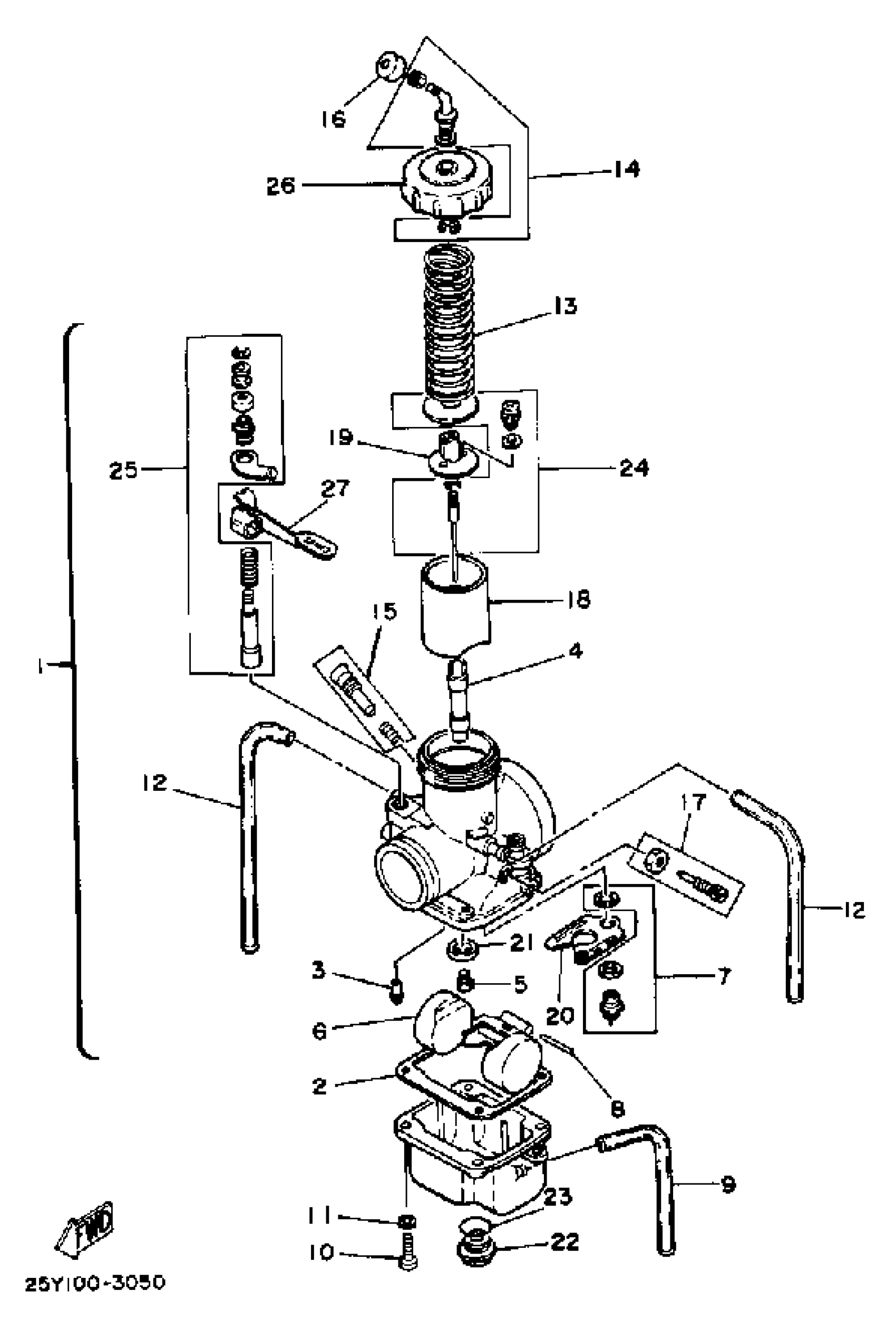

Yamaha IT250K (IT250) 1983 CARBURETOR Diagram

CARBURETOR ASSEMBLY 1

25Y-14101-00-00

Unavailable

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

JET, PILOT (# 50)

193-14142-50-00

$8.99

. NOZZLE, MAIN (0-2)

239-14141-32-00

Unavailable

JET,MAIN #380

137-14143-76-00

$7.99

JET,MAIN #390

137-14143-78-00

$6.99

JET,MAIN #400

137-14143-80-00

$7.99

FLOAT

2N7-14185-00-00

$85.99

NEEDLE VALVE SET

24X-14107-30-00

$44.99

PIN, FLOAT

537-14186-00-00

$7.99

HOSE

88R-14987-00-00

Unavailable

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

HOSE

89A-14987-00-00

$16.49

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

. AIR SCREW SET (1W3-14123-00)

26A-14104-00-00

Unavailable

CAP

3X3-14169-00-00

Unavailable

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

VALVE, THROTTLE 2.0

(2X7-14112-20-00)

Unavailable

. CONNECTOR

509-14274-00-00

Unavailable

. PLATE

3R4-14146-00-00

Unavailable

RING

(2X7-14194-00-00)

Unavailable

. PLUG, SCREW

510-14115-00-00

Unavailable

O-RING (541)

558-14147-00-00

Unavailable

. NEEDLE SET

25Y-1490J-00-00

Unavailable

. STARTER SET

26A-1410A-00-00

Unavailable

. TOP, MIXING CHAMBER

1W3-14158-00-00

Unavailable

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

Unavailable
