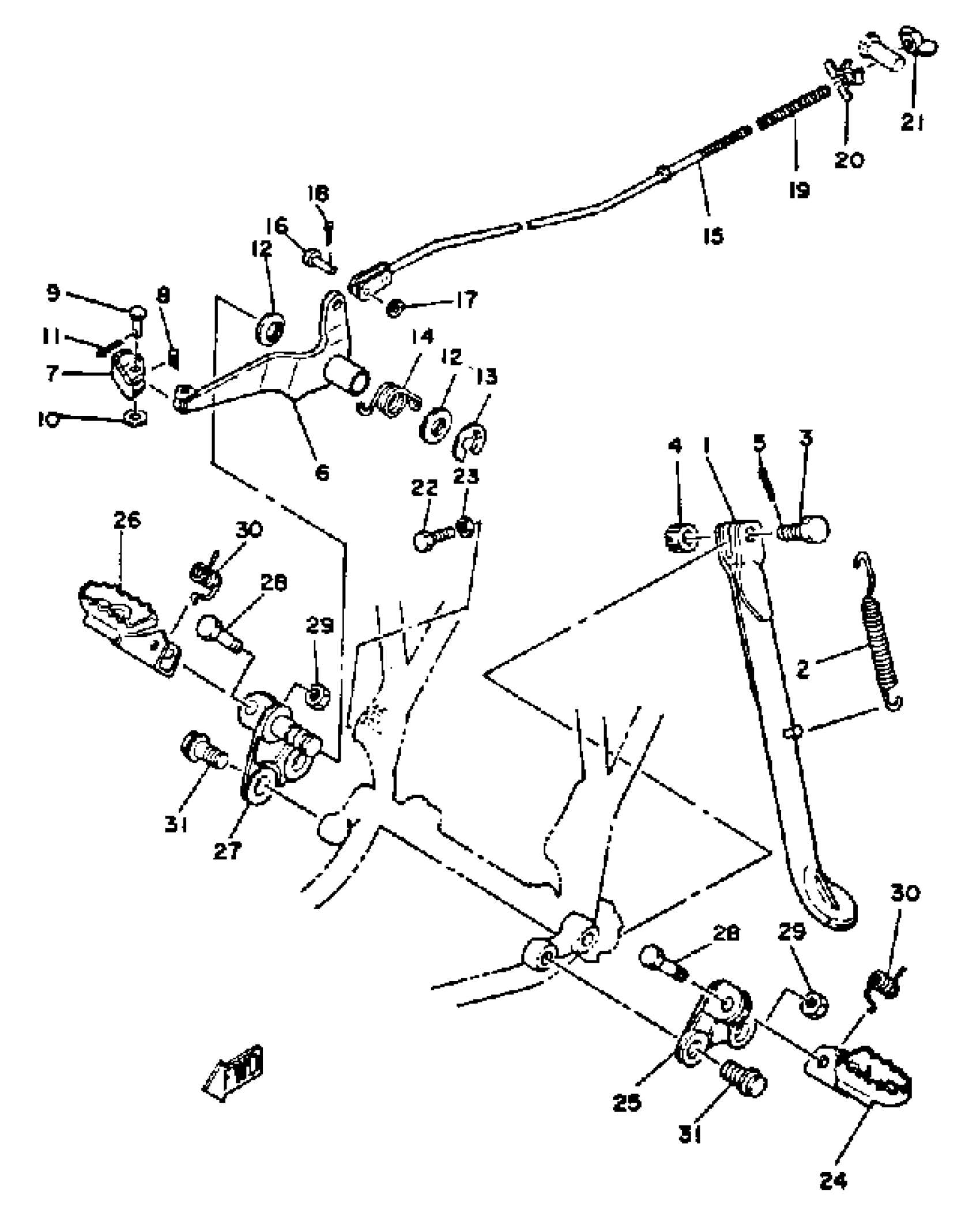

Yamaha IT250J (IT250) 1982 STAND-FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

4V5-27311-01-33

Unavailable

2

SPRING (434)

90507-29008-00

$28.99

3

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

4

NUT, CASTLE

95307-10900-00

Unavailable

5

PIN, COTTER

91490-20025-00

$1.99

6

PEDAL, BRAKE

5L4-27211-00-00

Unavailable

7

PEDAL, BRAKE

3R8-27242-00-00

Unavailable

8

SPRING, TORSION

90508-14429-00

Unavailable

9

PIN, CLEVIS

91702-06028-00

$7.49

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

PIN, COTTER

91490-20025-00

$1.99

12

COVER, DUST

4V5-27286-00-00

Unavailable

13

CIRCLIP (137)

93430-10015-00

$9.49

14

SPRING, TORSION

90508-32478-00

Unavailable

15

ROD, BRAKE

2X4-27231-01-00

Unavailable

16

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

PIN, COTTER

91490-20025-00

$1.99

19

SPRING, (180-27236-00)

90501-10245-00

Unavailable

20

SEAT, SPRING

1W2-27239-00-00

Unavailable

21

NUT (25K)

90179-06411-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

NUT(650)

95380-06700-00

Unavailable

24

FOOTREST 1

22W-27411-01-90

Unavailable

25

BRACKET, FOOTREST 1

4V5-27412-00-00

Unavailable

26

FOOTREST 2

22W-27421-01-90

Unavailable

27

BRACKET, FOOTREST 2

4V5-27422-00-00

Unavailable

29

BOLT (2W6)

90101-08428-00

Unavailable

29

NUT, U

95617-08100-00

Unavailable

30

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

31

BOLT, WASHER BASED

90105-12096-00

Unavailable
