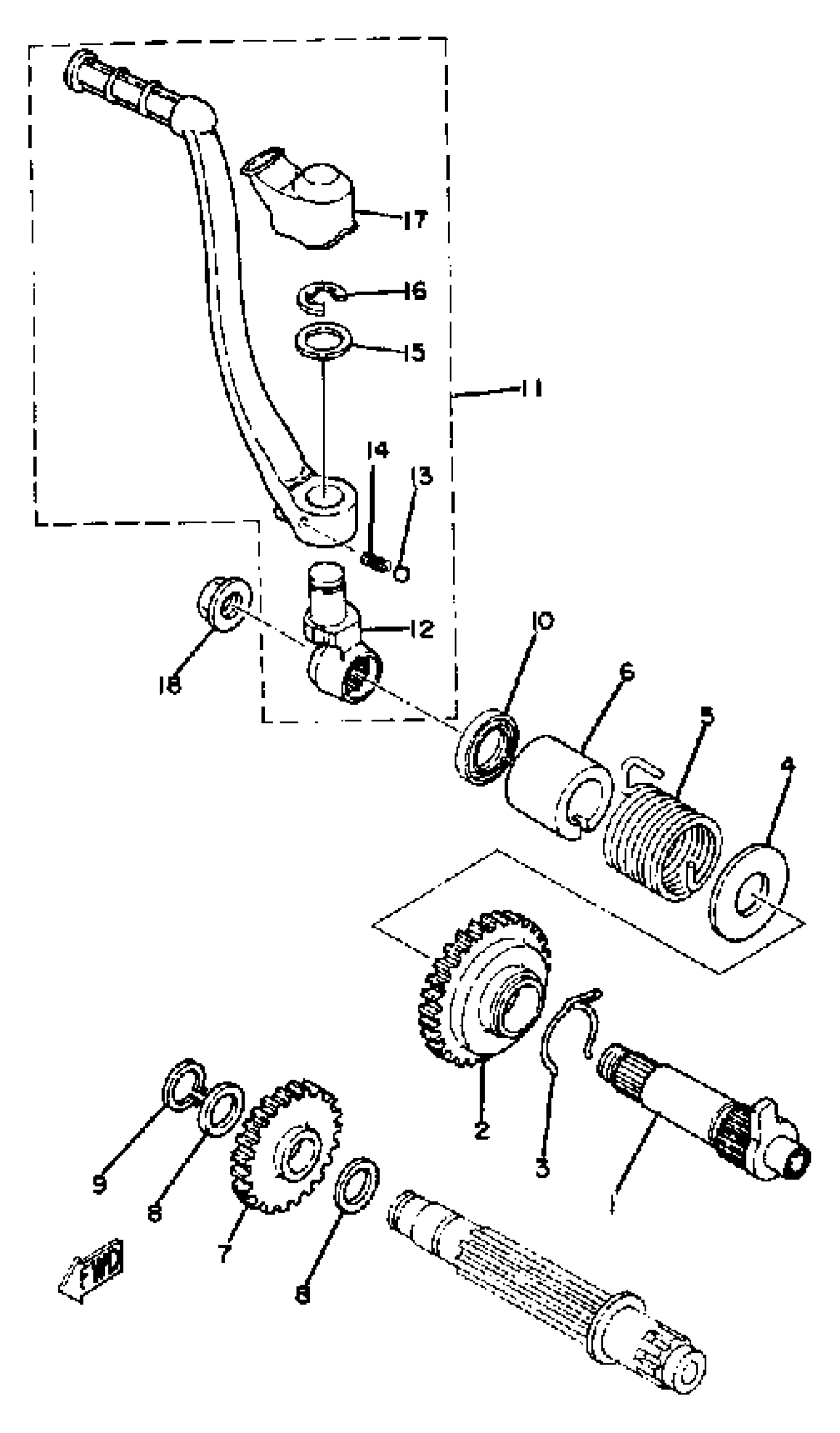

Yamaha IT250J (IT250) 1982 KICK STARTER Diagram

#

Description
Price

1

AXLE, KICK

56A-15661-01-00

Unavailable

2

GEAR, KICK

3R4-15641-00-00

Unavailable

3

CLIP 315156870000

90468-26048-00

$8.49

4

WASHER, PLATE

90201-20358-00

Unavailable

5

SPRING, TORSION (3R4)

90508-30422-00

$21.99

6

GUIDE, SPRING

3R4-15664-00-00

Unavailable

7

GEAR, KICK IDLE

3R4-15651-00-00

Unavailable

8

WASHER, PLATE (525)

90201-17545-00

$8.49

9

CIRCLIP(1EY)

99009-17400-00

$4.73

10

OIL SEAL,SD-TYPE

93102-20309-00

$10.49

11

KICK CRANK ASSEMBLY

3R4-15620-00-00

Unavailable

12

. BOSS, KICK CRANK

3R4-15621-01-00

Unavailable

13

BALL (12R)

93507-32031-00

$4.73

14

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

15

WASHER PLATE 278156130000

90201-15234-00

$8.49

16

CIRCLIP

99006-10600-00

Unavailable

17

COVER, KICK LEVER

2K7-15618-00-00

Unavailable

18

NUT(1EE)

90179-12659-00

Unavailable
