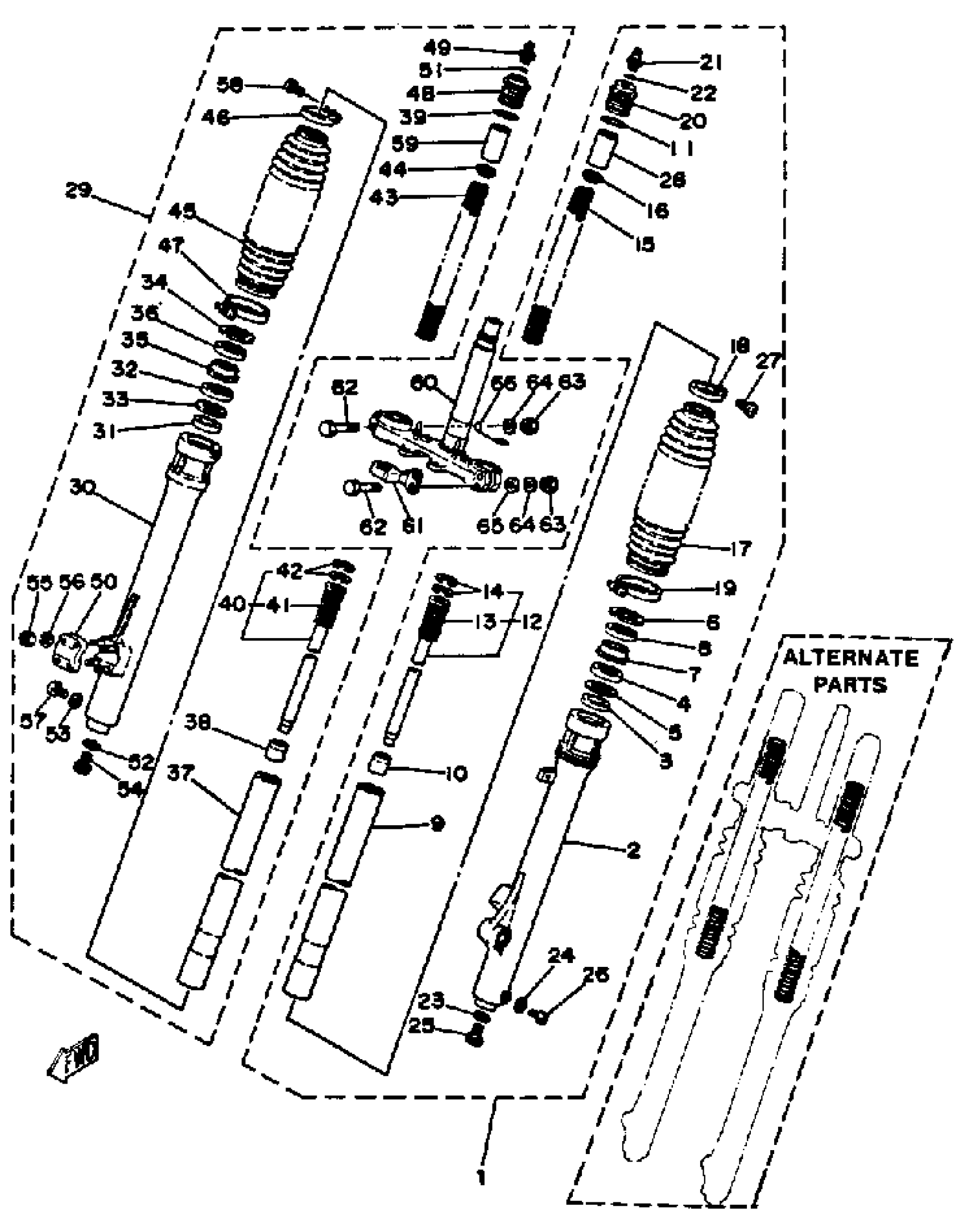

Yamaha IT250J (IT250) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(4V5-23102-L1-00)

Unavailable

2

TUBE, OUTER 1

(4V5-23126-L0-00)

Unavailable

3

METAL, SLIDE 1

2YK-23125-00-00

$43.99

4

OIL SEAL

3EN-23145-00-00

$25.99

5

WASHER

4V2-23146-L0-00

$29.99

6

RING, SNAP

3R4-23153-00-00

$8.99

7

.. SEAL, DUST

3R4-23144-00-00

Unavailable

8

.. COVER, DUST SEAL

3R4-23148-00-00

Unavailable

9

. INNER TUBE 1

5X4-23110-L0-00

Unavailable

10

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

11

O-RING

1W4-23114-L0-00

$7.99

12

CYLINDER, FRTFRK

(4V5-23170-L0-00)

Unavailable

13

SPRING, REBOUND

(1W4-23151-L0-00)

Unavailable

14

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

Unavailable

15

SPRING, FRTFRK SOFT

(4V5-23141-11-00)

Unavailable

15

SPRING, FRTFRK HARD (K1=0.339, K2=0.385) (USE SPACER)

4V5-23141-21-00

Unavailable

15

SPRING, FRONT FORK

(4V5-23141-L1-00)

Unavailable

16

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

17

. BOOT, FRONT FORK

3R4-23191-M0-00

Unavailable

18

. BAND

1W4-23192-L0-00

Unavailable

19

BAND

1W4-23489-L0-00

Unavailable

20

. BOLT, CAP

5X4-23111-L0-00

Unavailable

21

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

22

O-RING

3J2-23147-00-00

Unavailable

23

GASKET

509-23158-L0-00

Unavailable

24

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

25

BOLT

3R4-23181-L0-00

Unavailable

26

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

27

SCREW, PAN HEAD

98517-04020-00

Unavailable

28

SPACER

4V5-23118-L1-00

Unavailable

28

SPACER

4V5-23118-L1-00

Unavailable

29

FRONT FORK ASSEMBLY R

(4V5-23103-L1-00)

Unavailable

30

TUBE, OUTER 2

(4V5-23136-L0-00)

Unavailable

31

METAL, SLIDE 1

2YK-23125-00-00

$43.99

32

OIL SEAL

3EN-23145-00-00

$25.99

33

WASHER

4V2-23146-L0-00

$29.99

34

RING, SNAP

3R4-23153-00-00

$8.99

35

.. SEAL, DUST

3R4-23144-00-00

Unavailable

36

.. COVER, DUST SEAL

3R4-23148-00-00

Unavailable

37

. INNER TUBE 1

5X4-23110-L0-00

Unavailable

38

SPINDLE, TAPER

(3R4-23173-L0-00)

Unavailable

39

O-RING

1W4-23114-L0-00

$7.99

40

CYLINDER, FRTFRK

(4V5-23170-L0-00)

Unavailable

41

SPRING, REBOUND

(1W4-23151-L0-00)

Unavailable

42

.. RING, PISTON FRONT FORK

4V2-23157-L0-00

Unavailable

43

SPRING, FRTFRK SOFT

(4V5-23141-11-00)

Unavailable

43

SPRING, FRTFRK HARD (K1=0.339, K2=0.385) (USE SPACER)

4V5-23141-21-00

Unavailable

43

SPRING, FRONT FORK

(4V5-23141-L1-00)

Unavailable

44

. SEAT, SPRING UPPER

1W4-23142-L0-00

Unavailable

45

. BOOT, FRONT FORK

3R4-23191-M0-00

Unavailable

46

. BAND

1W4-23192-L0-00

Unavailable

47

BAND

1W4-23489-L0-00

Unavailable

48

. BOLT, CAP

5X4-23111-L0-00

Unavailable

49

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

50

HOLDER, AXLE

4V2-23167-L0-00

Unavailable

51

O-RING

3J2-23147-00-00

Unavailable

52

GASKET

509-23158-L0-00

Unavailable

53

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

54

BOLT

3R4-23181-L0-00

Unavailable

55

NUT(6TA)

95317-06600-00

Unavailable

56

WASHER, SPRING

92995-06100-00

Unavailable

57

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

58

SCREW, PAN HEAD

98517-04020-00

Unavailable

59

SPACER

4V5-23118-L1-00

Unavailable

59

SPACER

4V5-23118-L1-00

Unavailable

60

. UNDER BRACKET

4V5-23340-L0-33

Unavailable

61

GUIDE, WIRE

3R4-23389-00-00

Unavailable

62

BOLT (1E6)

90101-08340-00

Unavailable

63

NUT(6L2)

95333-08600-00

Unavailable

64

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

65

.. WASHER, PLATE

92990-08600-00

Unavailable

66

GUIDE, CABLE

4V5-23389-00-00

Unavailable
