1982 Yamaha IT250 (IT250J) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1982 Yamaha IT250 (IT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

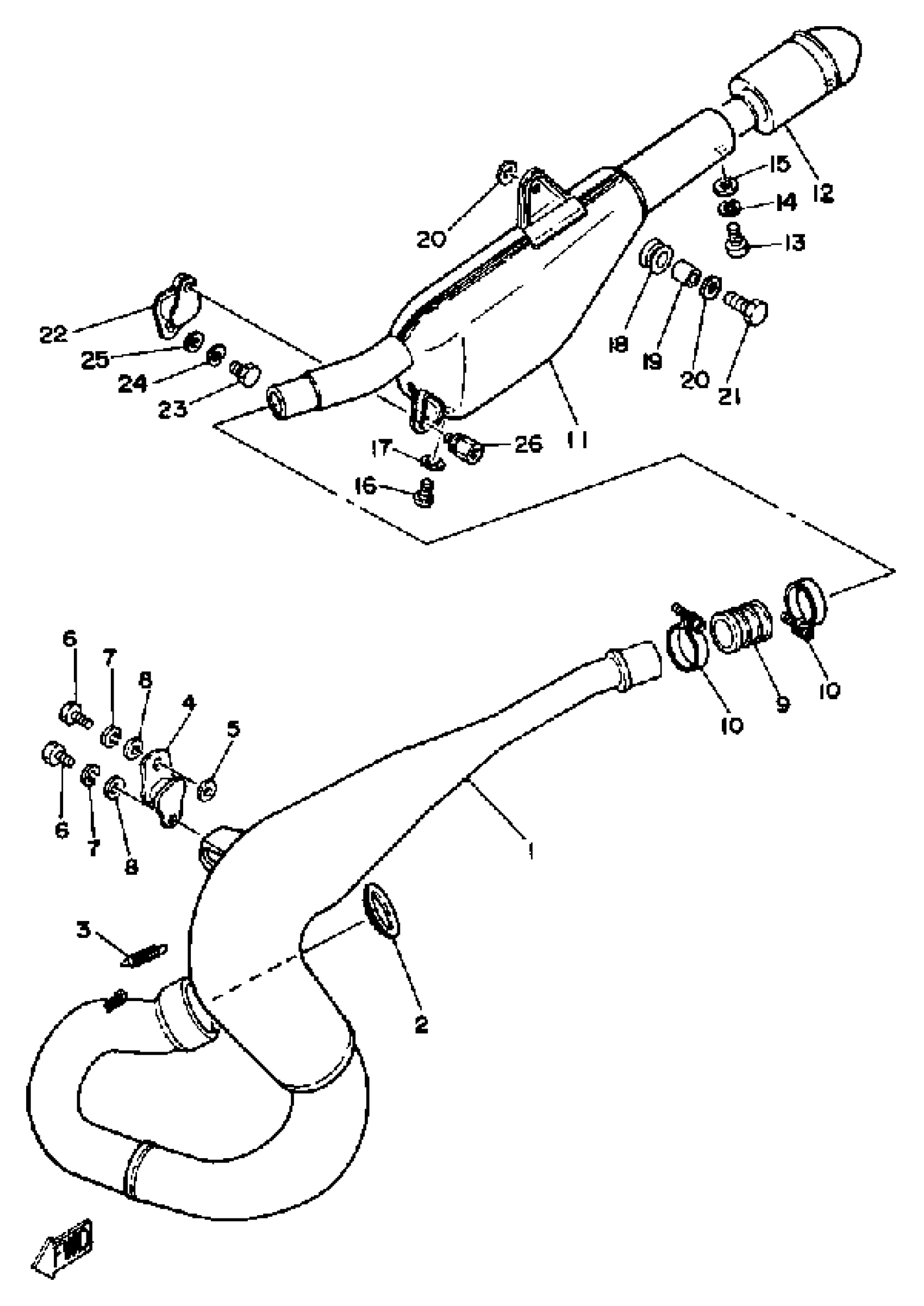

1982 Yamaha IT250 (IT250J) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

4V5-14610-00-00

1
Out of stock

2

GASKET, EXHAUST

3R4-14613-00-00

1

$26.72

In stock

3

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

4

STAY, MUFFLER 2

3R4-14781-04-00

1
Out of stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

10

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

11

SILENCER, EXHAUST

4V5-14753-00-00

1
Out of stock

12

PIPE, OUTLET

4V5-14752-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

17

WASHER, PLATE(3MB)

90202-05187-00

—

$1.32

In stock

18

DAMPER

565-14747-00-00

—
Out of stock

19

COLLAR (437)

90387-08258-00

—
Out of stock

20

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

21

BOLT, HEXAGON (2X4)

90109-08512-00

—

$8.97

In stock

22

STAY, MUFFLER 1

565-14771-01-00

—

$16.68

In stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

26

BOLT (3R4)

90109-06551-00

—

$18.26

In stock
