1982 Yamaha IT250 (IT250J) Cylinder Diagram

← All diagrams

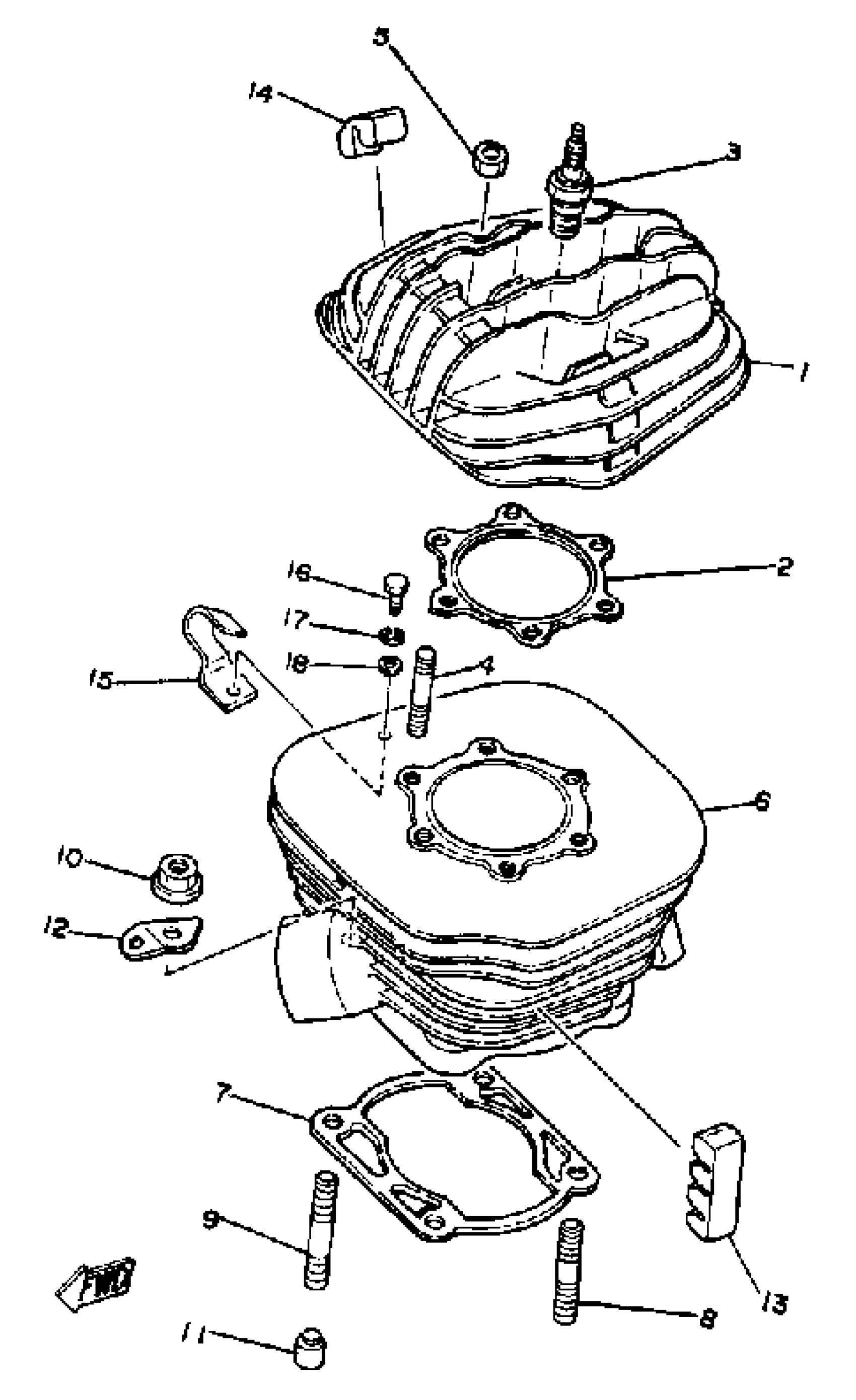

Find the part on the Cylinder diagram for your 1982 Yamaha IT250 (IT250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha IT250 (IT250J) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER 1

(3R4-11111-00-00)

1
Out of stock

2

GASKET, CYLINDER HEAD

1W3-11181-00-00

1

$24.88

In stock

3

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

1
Out of stock

4

BOLT, STUD (5V6)

90116-08394-00

1
Out of stock

5

NUT(55X)

90179-08491-00

1
Out of stock

6

CYLINDER 1

4V5-11311-00-00

1
Out of stock

7

GASKET, CYLINDER

3R4-11351-01-00

1

$9.18

In stock

8

BOLT, STUD

90116-10313-00

1
Out of stock

9

BOLT, STUD (3R4)

90116-10314-00

1

$3.37

In stock

10

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

11

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

12

HOOK, SPRING

3R4-14619-01-00

1
Out of stock

13

ABSORBER 3

2A6-11127-00-00

1
Out of stock

14

ABSORBER 1

4V5-11161-00-00

1
Out of stock

15

HOLDER 1

4V5-1131E-00-00

1
Out of stock

16

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLATE(36Y)

90201-063J2-00

—

$4.45

In stock
