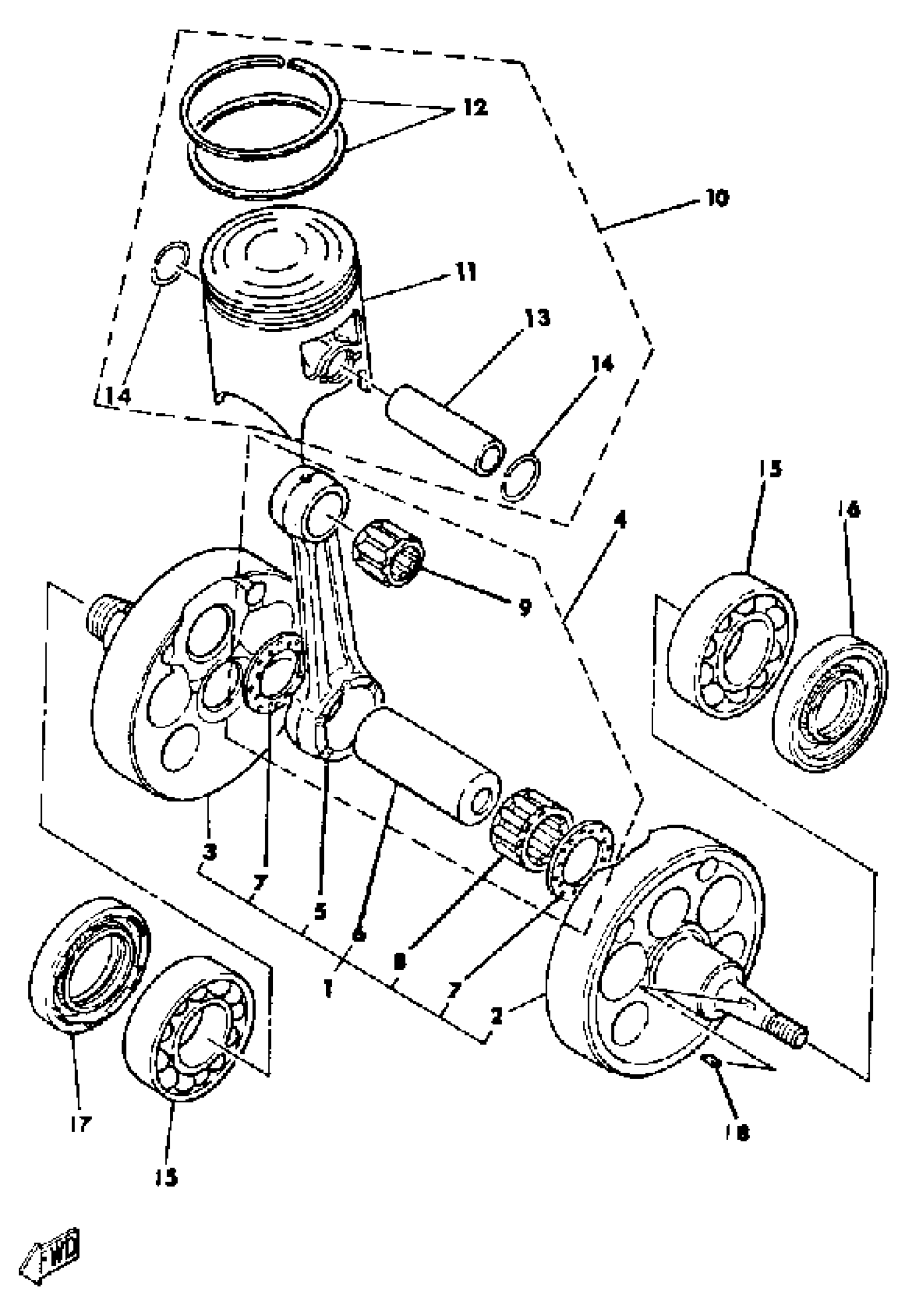

Yamaha IT250J (IT250) 1982 CRANKSHAFT-PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(4V5-11400-00-00)

Unavailable

2

CRANK 1

(4V5-11412-00-00)

Unavailable

3

. CRANK 2

3R4-11422-00-00

Unavailable

4

CONNECTING ROD ASSY

5X5-11650-00-00

Unavailable

5

.. ROD, CONNECTING

498-11651-00-00

Unavailable

6

PIN, CRANK

2X4-11681-00-00

$81.99

7

WASHER 275116850000

90209-25085-00

$12.49

8

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

9

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

11

PISTON STD (STD)

4V5-11631-00-95

Unavailable

11

PISTON STD (STD)

4V5-11631-00-95

Unavailable

12

PISTON RINGSET STD (2X7-11610-00)

1W5-11610-00-00

Unavailable

13

PIN, PISTON

214-11633-00-00

Unavailable

14

CIRCLIP (2F1)

93450-19052-00

$7.49

15

BEARING (5X5)

93306-20627-00

$75.99

16

OIL SEAL(38V)

93103-30150-00

Unavailable

17

OIL SEAL (434)

93103-40091-00

Unavailable

18

PISTON RINGSET 1ST (2X7-11610-10)

1W5-11610-10-00

Unavailable

18

PISTON RINGSET 2ND (2X7-11610-20)

1W5-11610-20-00

Unavailable

18

PISTON RINGSET 3RD (2X7-11610-30)

1W5-11610-30-00

Unavailable

18

PISTON RINGSET 4TH (2X7-11610-40)

1W5-11610-40-00

Unavailable

18

PISTON KIT 1ST

(4V5-11630-10-00)

Unavailable

18

PISTON KIT 2ND (2ND O/S)

4V5-11630-20-00

Unavailable

18

PISTON KIT 3RD

(4V5-11630-30-00)

Unavailable

18

PISTON KIT 4TH (4TH O/S)

4V5-11630-40-00

Unavailable

18

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

4V5-11635-00-00

Unavailable

18

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

4V5-11636-00-00

Unavailable

18

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

4V5-11637-00-00

Unavailable

18

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

4V5-11638-00-00

Unavailable

18

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
