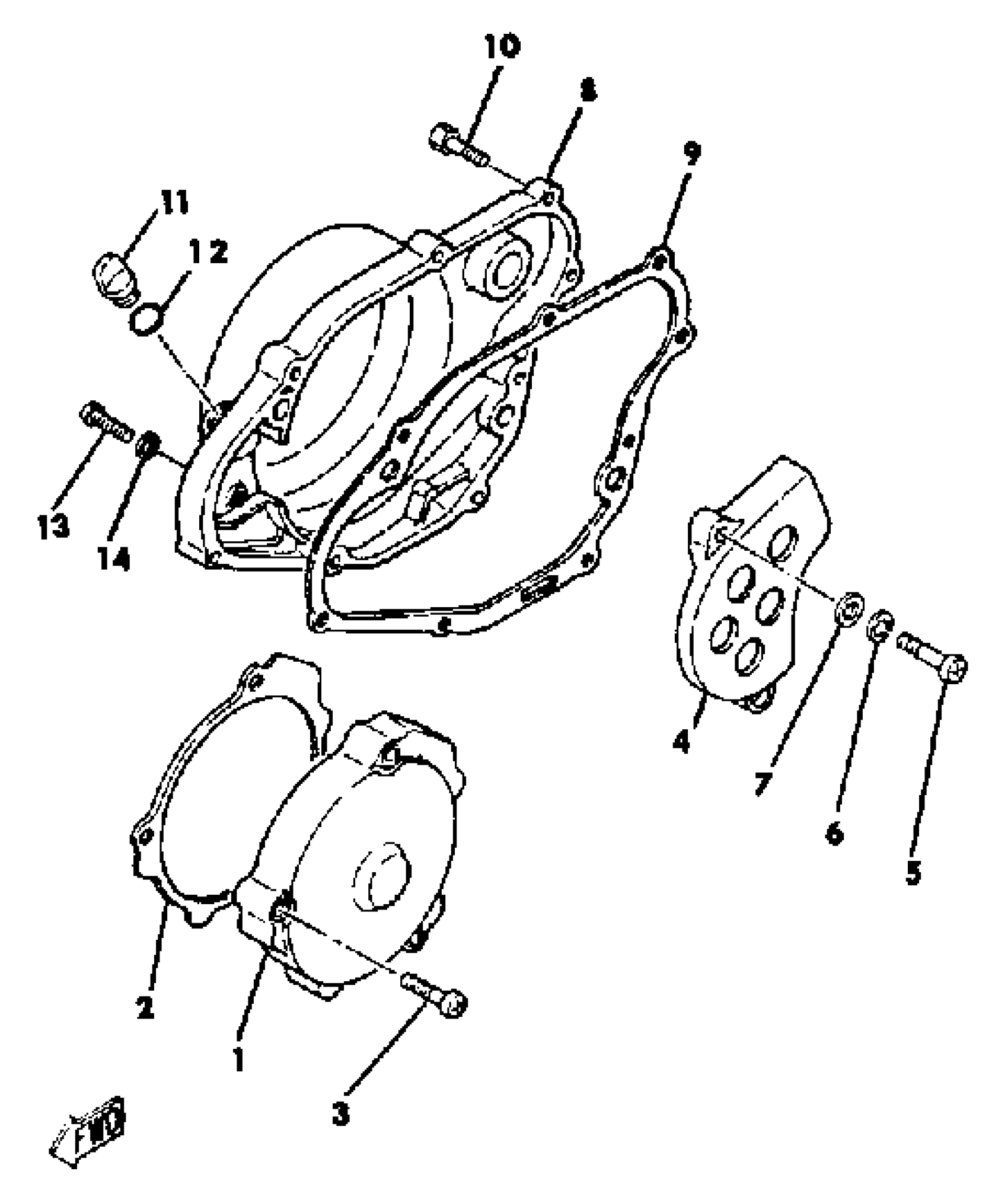

Yamaha IT250J (IT250) 1982 CRANKCASE COVER Diagram

COVER, CRANKCASE L

4V5-15411-00-00

Unavailable

GASKET, CRANK CASE COVER

4V5-15451-00-00

Unavailable

SCREW, PAN

98507-06035-00

$8.49

COVER, CRANKCASE R

3R4-15421-00-00

Unavailable

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

WASHER, SPRING

92907-06100-00

$4.25

WASHER(6TA)

92907-06600-00

$2.72

COVER, CRANKCASE 3

3R4-15431-02-00

Unavailable

GASKET, CRANKCASE COVER 3

3R4-15462-11-00

$34.99

BOLT,SOCKET

91317-06025-00

$5.60

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

O-RING (26H)

93210-14579-00

$7.49

SCREW, PAN

98517-06008-00

$8.49

GASKET 838153840000

90430-06016-00

$8.49
