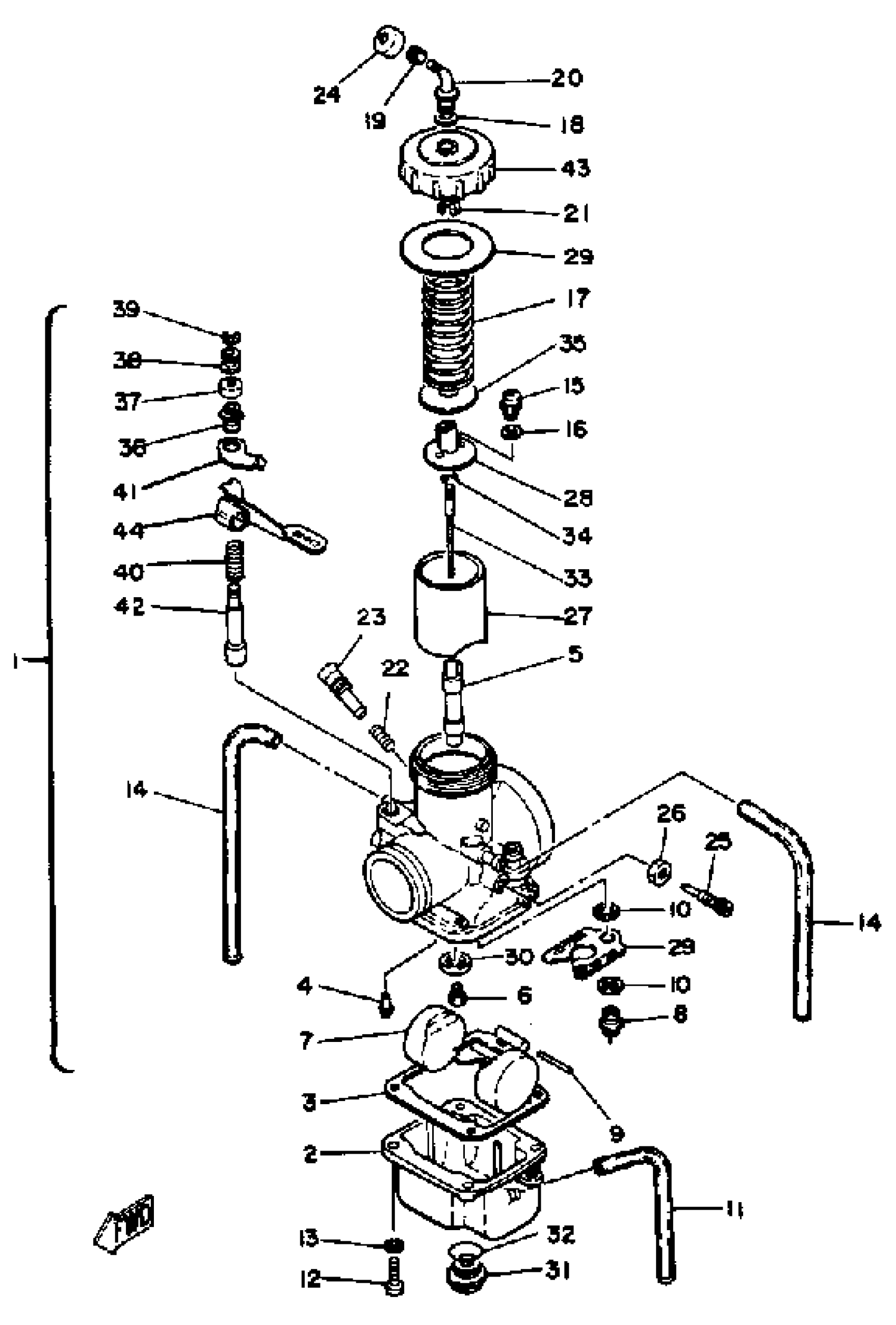

Yamaha IT250J (IT250) 1982 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

25Y-14101-00-00

Unavailable

2

BODY, FLOAT CHMBR 1

(3R4-14181-16-00)

Unavailable

3

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

4

JET, PILOT (# 50)

193-14142-50-00

$8.99

5

. NOZZLE, MAIN (0-2)

239-14141-32-00

Unavailable

6

JET,MAIN #390

137-14143-78-00

$6.99

6

JET,MAIN #400

137-14143-80-00

$7.99

6

JET,MAIN #410

137-14143-82-00

$7.99

7

FLOAT

2N7-14185-00-00

$85.99

8

NEEDLE VALVE SET

24X-14107-30-00

$44.99

9

PIN, FLOAT

537-14186-00-00

$7.99

10

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

11

HOSE

88R-14987-00-00

Unavailable

12

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

HOSE

89A-14987-00-00

Unavailable

15

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

16

WASHER(3SX)

92907-03600-00

Unavailable

17

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

18

GASKET

509-14198-00-00

Unavailable

19

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

20

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

21

CLIP

363-14137-00-00

Unavailable

22

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

23

. AIR SCREW SET (1W3-14123-00)

26A-14104-00-00

Unavailable

24

CAP

3X3-14169-00-00

Unavailable

25

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

26

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

27

VALVE, THROTTLE 2.0

(2X7-14112-20-00)

Unavailable

28

. CONNECTOR

509-14274-00-00

Unavailable

29

. PLATE

3R4-14146-00-00

Unavailable

30

RING

(2X7-14194-00-00)

Unavailable

31

. PLUG, SCREW

510-14115-00-00

Unavailable

32

O-RING (541)

558-14147-00-00

Unavailable

33

. NEEDLE

239-14116-34-00

Unavailable

34

CLIP

3FA-14137-00-00

Unavailable

35

. SEAT, SPRING

509-14136-00-00

Unavailable

36

. CAP, PLUNGER

802-14174-00-00

Unavailable

37

COVER, PLUNGER CAP

(2X7-14173-00-00)

Unavailable

38

. BUSH

737-14241-00-00

Unavailable

39

. CLIP

737-14137-00-00

Unavailable

40

. SPRING, PLUNGER

256-14135-00-00

Unavailable

41

PLATE, STARTER LVR

(1W3-14178-00-00)

Unavailable

42

. PLUNGER, STARTER

1W1-14171-00-00

Unavailable

43

. TOP, MIXING CHAMBER

1W3-14158-00-00

Unavailable

44

. COVER, PLUNGER CAP (1W3-14173-00-00)

1W3-14175-00-00

Unavailable
