1981 Yamaha IT250 (IT250H) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

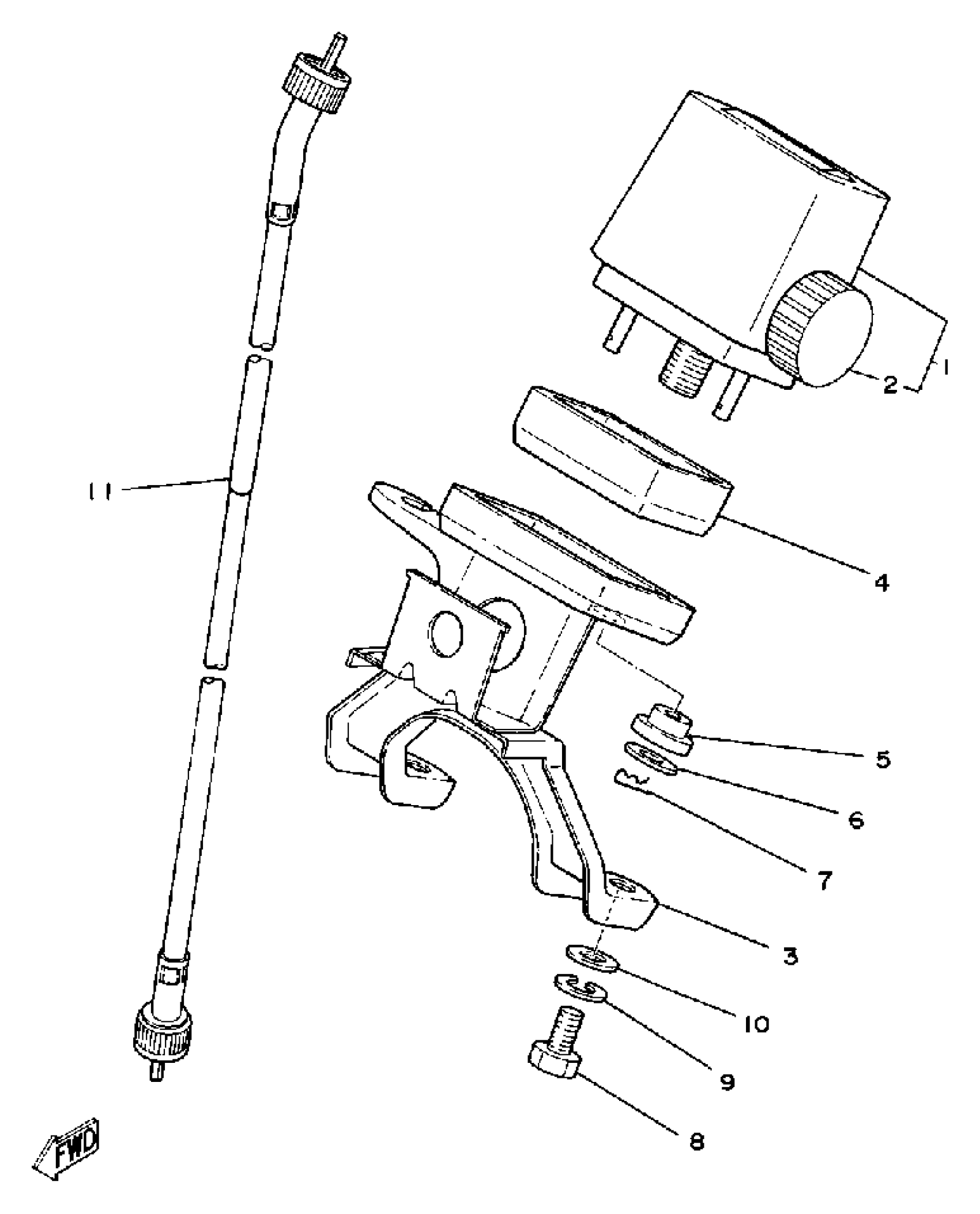

1981 Yamaha IT250 (IT250H) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRIP METER COMP.

4V5-83505-60-00

1
Out of stock

2

. KNOB, TRIP METER

4V5-83578-00-00

1
Out of stock

3

BRACKET, METER

4V5-83519-00-00

1
Out of stock

4

DAMPER

4V5-83513-00-00

1
Out of stock

5

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

6

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

7

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

11

SPEEDOMETER CABLE ASSY

4V5-83550-02-00

1

$40.63

In stock
