1981 Yamaha IT250 (IT250H) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

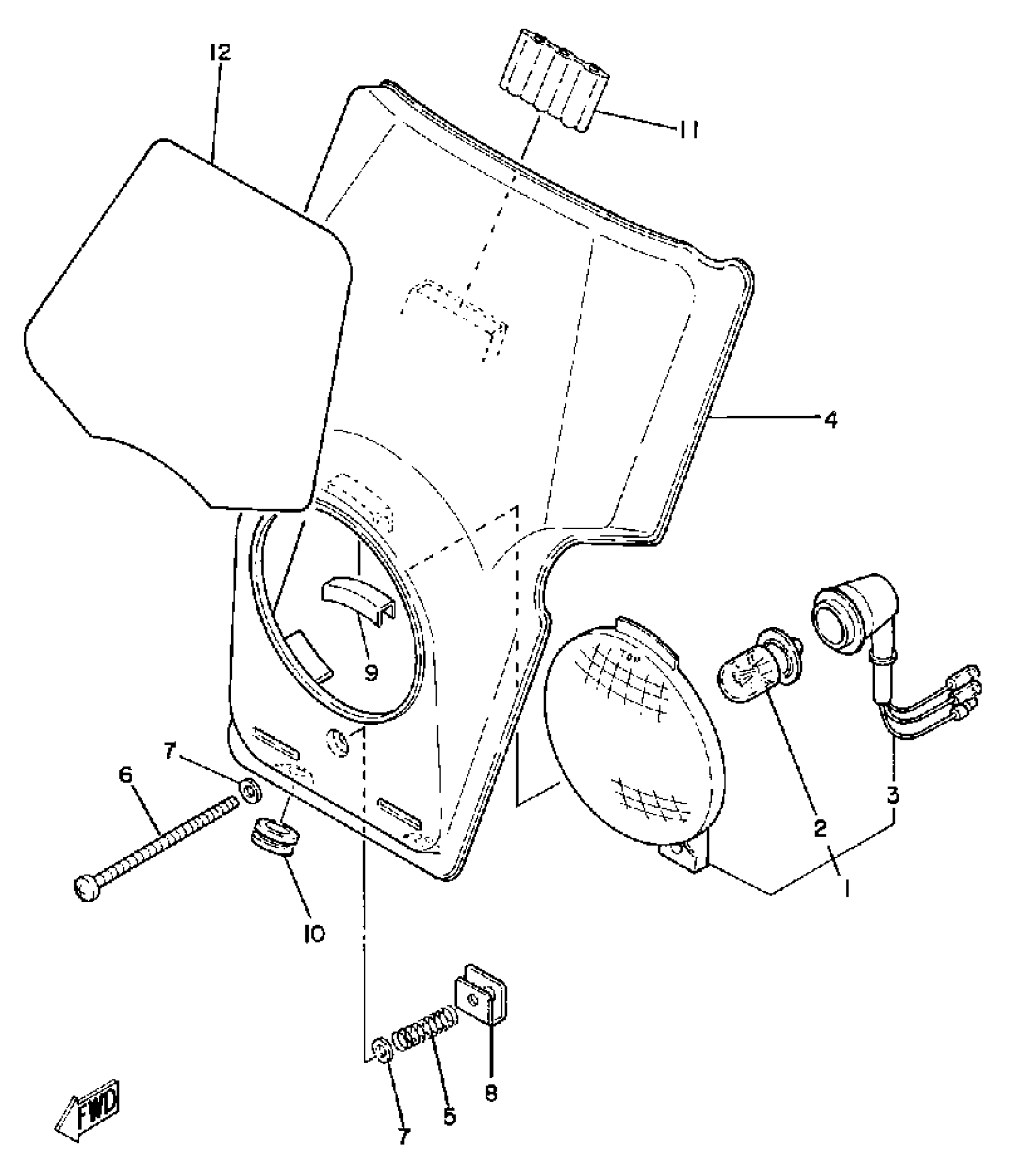

1981 Yamaha IT250 (IT250H) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

4V5-84110-00-00

1
Out of stock

2

. BULB, HL 6V25/25W

527-84114-09-XX

1
Out of stock

3

. SOCKET CORD ASSEMBLY

4V5-84140-00-00

1
Out of stock

4

BODY ASSEMBLY, HEADLIGHT

(4V5-84130-00-00)

1
Out of stock

5

SPRING, SCREW

4V5-84132-00-00

1
Out of stock

6

SCREW, PAN HEAD

98580-04540-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

8

NUT, ADJUST

4V5-84134-00-00

1
Out of stock

9

DAMPER, HDLT STAY

(4V5-84143-00-00)

1
Out of stock

10

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

11

DAMPER

4V5-83592-00-00

1
Out of stock

12

EMBLEM, HEADLIGHT

4V5-84141-00-00

1
Out of stock
← Handle Switch - Lever Meter →
