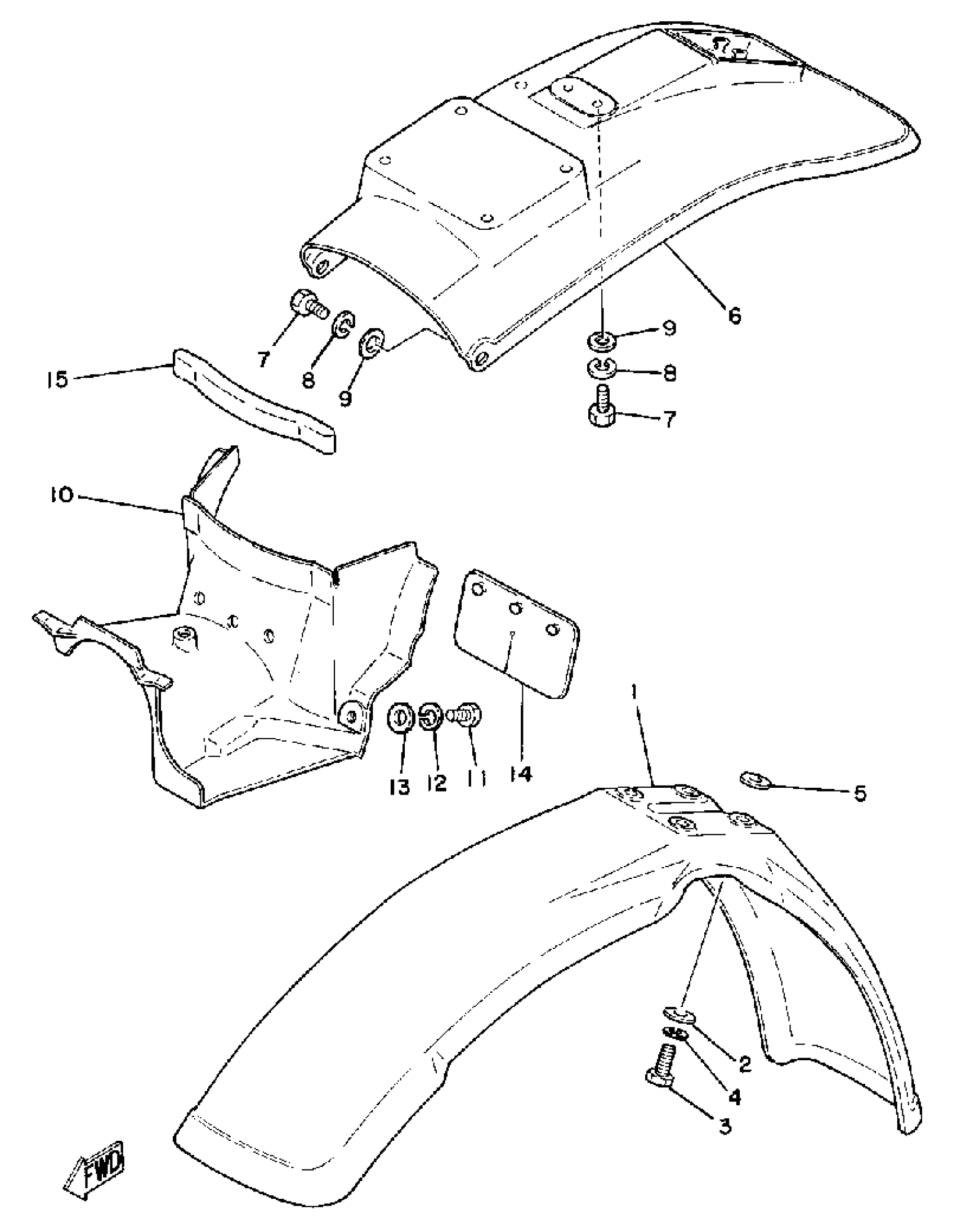

Yamaha IT250H (IT250) 1981 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5X6-21511-11-00

$43.99

2

WASHER, PLATE

90201-06380-00

$0.60

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

4V5-21610-00-00

Unavailable

7

BOLT, HEXAGON

97017-06016-00

$8.49

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER, PLATE

90201-06380-00

$0.60

10

GUARD, MUD

4V5-21629-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE

90201-06380-00

$0.60

14

FLAP

1M1-21621-00-00

$16.49

15

. DAMPER

565-21746-00-00

Unavailable
