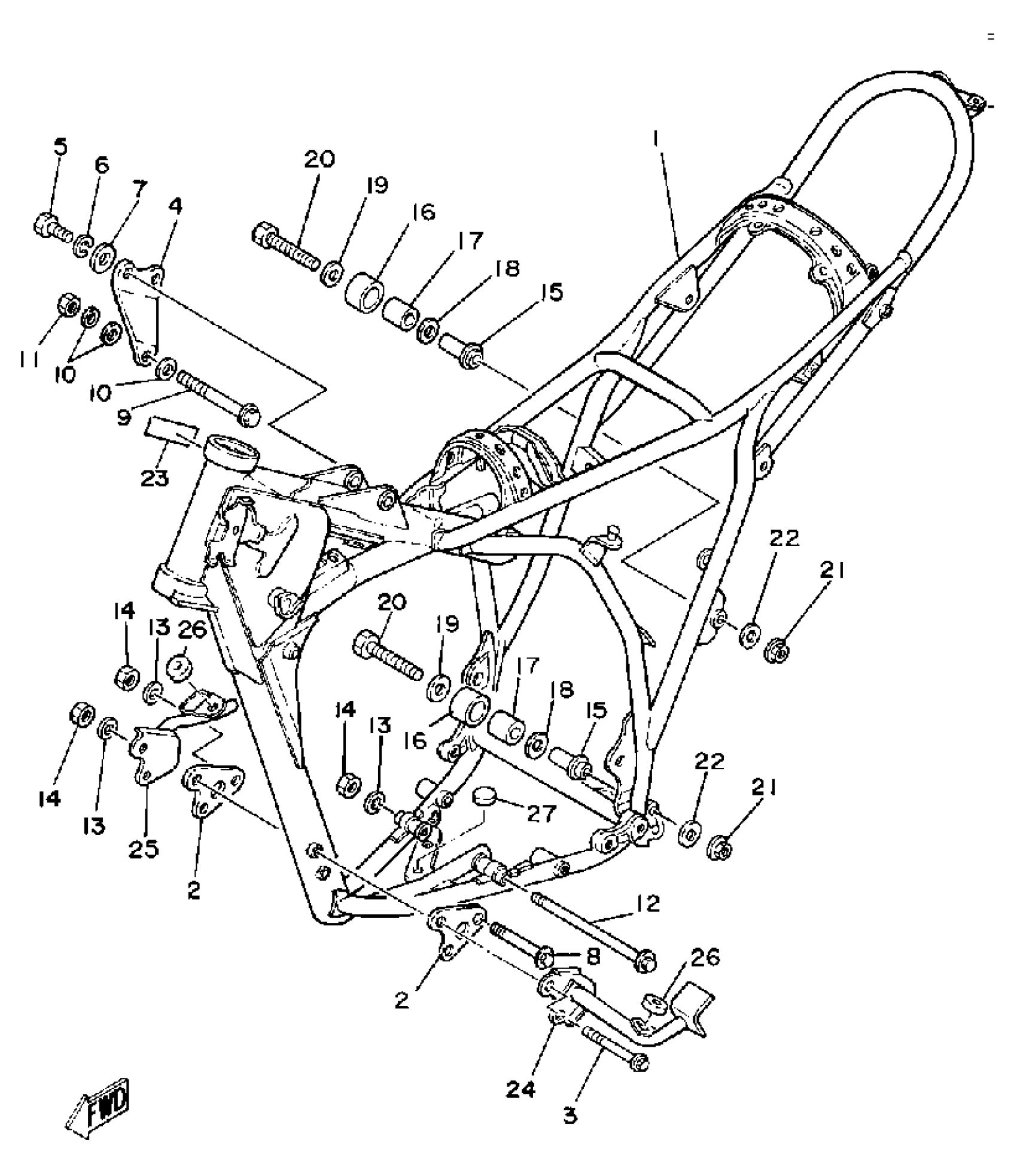

Yamaha IT250H (IT250) 1981 FRAME Diagram

#

Description
Price

1

FRAME

(4V5-21110-01-33)

Unavailable

2

BRACKET, FRT UPR 1

3R4-21415-00-00

Unavailable

3

BOLT, FLANGE(JF2)

95817-08080-00

$4.24

4

BRACKET, REAR UPR 1

(4V3-21425-00-00)

Unavailable

5

BOLT (682)

97013-08025-00

$8.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

BOLT, FLANGE

95817-08075-00

$4.82

9

BOLT, FLANGE(4GB)

95817-10045-00

$6.99

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

NUT, U

95617-10100-00

$8.49

12

BOLT, FLANGE

95811-08170-00

Unavailable

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

15

SHAFT

2K7-2148A-00-00

$11.99

16

TENSIONER

30X-22178-00-00

Unavailable

17

BUSH

4V4-22184-00-00

Unavailable

18

WASHER, PLATE

90201-13013-00

Unavailable

19

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

20

BOLT, HEXAGON

97013-08055-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

WASHER, PLATE

90201-08638-00

Unavailable

23

COVER

(3R4-2139W-00-00)

Unavailable

24

GUARD, ENGINE 1

4V5-2147A-00-33

Unavailable

25

GUARD, ENGINE 2

4V5-2147E-00-33

Unavailable

26

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

Unavailable

27

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable
