1981 Yamaha IT250 (IT250H) Crankshaft - Piston Diagram

← All diagrams

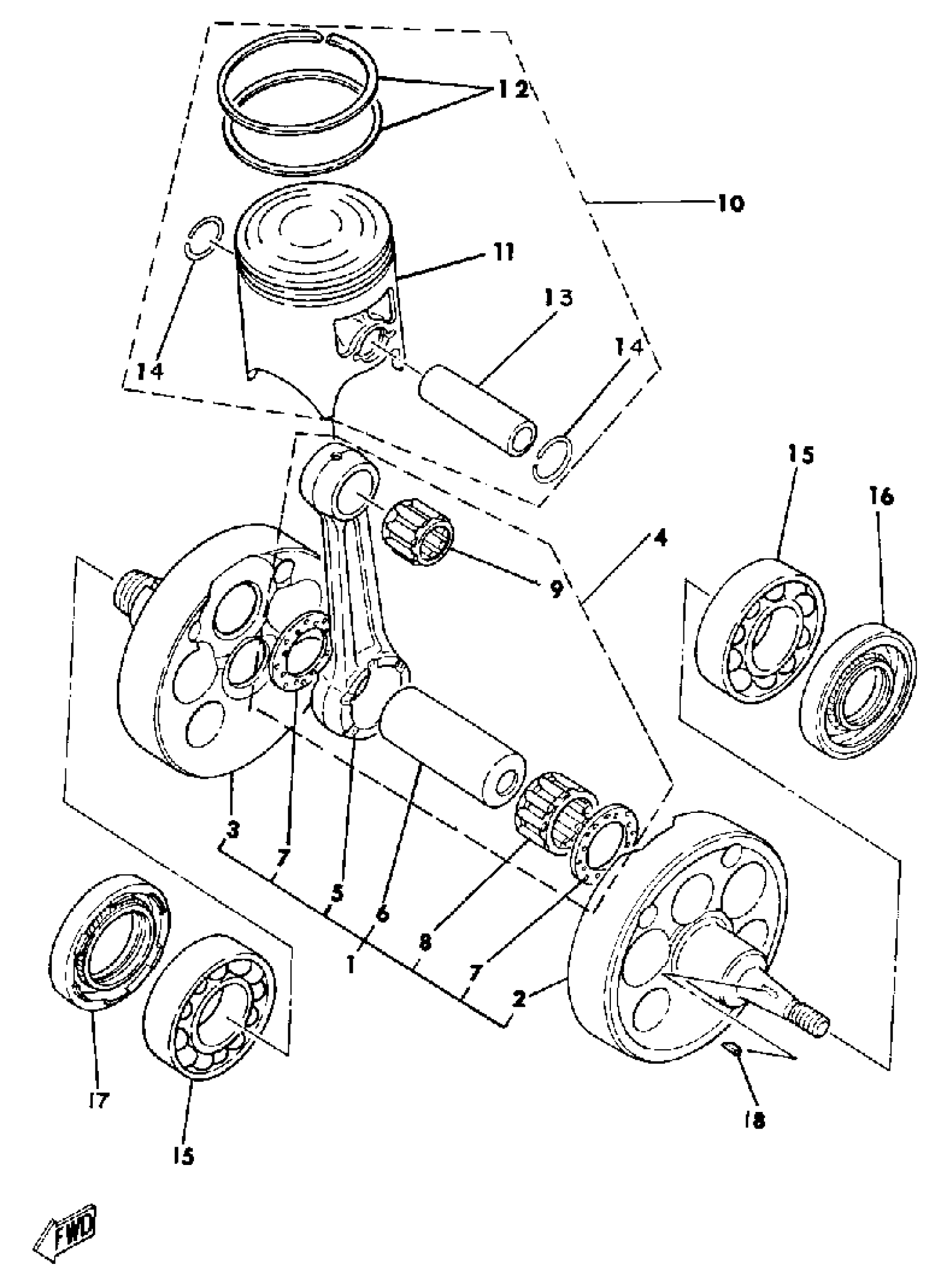

Find the part on the Crankshaft - Piston diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha IT250 (IT250H) Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(4V5-11400-00-00)

1
Out of stock

2

CRANK 1

(4V5-11412-00-00)

1
Out of stock

3

. CRANK 2

3R4-11422-00-00

1
Out of stock

4

CONNECTING ROD ASSY

5X5-11650-00-00

—

$313.75

In stock

5

.. ROD, CONNECTING

498-11651-00-00

1
Out of stock

6

PIN, CRANK

2X4-11681-00-00

1

$73.68

In stock

7

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

8

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

9

1

$32.87

In stock

10

PISTON STD (STD)

4V5-11631-00-95

1
Out of stock

11

PISTON STD (STD)

4V5-11631-00-95

1
Out of stock

12

PISTON RINGSET STD (2X7-11610-00)

1W5-11610-00-00

1
Out of stock

13

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

14

CIRCLIP (2F1)

93450-19052-00

1

$5.85

In stock

15

BEARING (5X5)

93306-20627-00

1

$66.08

In stock

16

OIL SEAL(38V)

93103-30150-00

—

$19.71

In stock

17

OIL SEAL (434)

93103-40091-00

—

$27.25

In stock

18

PISTON RINGSET 1ST (2X7-11610-10)

1W5-11610-10-00

1
Out of stock

18

PISTON RINGSET 2ND (2X7-11610-20)

1W5-11610-20-00

1
Out of stock

18

PISTON RINGSET 3RD (2X7-11610-30)

1W5-11610-30-00

1
Out of stock

18

PISTON RINGSET 4TH (2X7-11610-40)

1W5-11610-40-00

1
Out of stock

18

PISTON KIT 1ST

(4V5-11630-10-00)

1
Out of stock

18

PISTON KIT 2ND (2ND O/S)

4V5-11630-20-00

1
Out of stock

18

PISTON KIT 3RD

(4V5-11630-30-00)

1
Out of stock

18

PISTON KIT 4TH (4TH O/S)

4V5-11630-40-00

1
Out of stock

18

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

4V5-11635-00-00

1
Out of stock

18

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

4V5-11636-00-00

1
Out of stock

18

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

4V5-11637-00-00

1
Out of stock

18

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

4V5-11638-00-00

1
Out of stock

18

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
