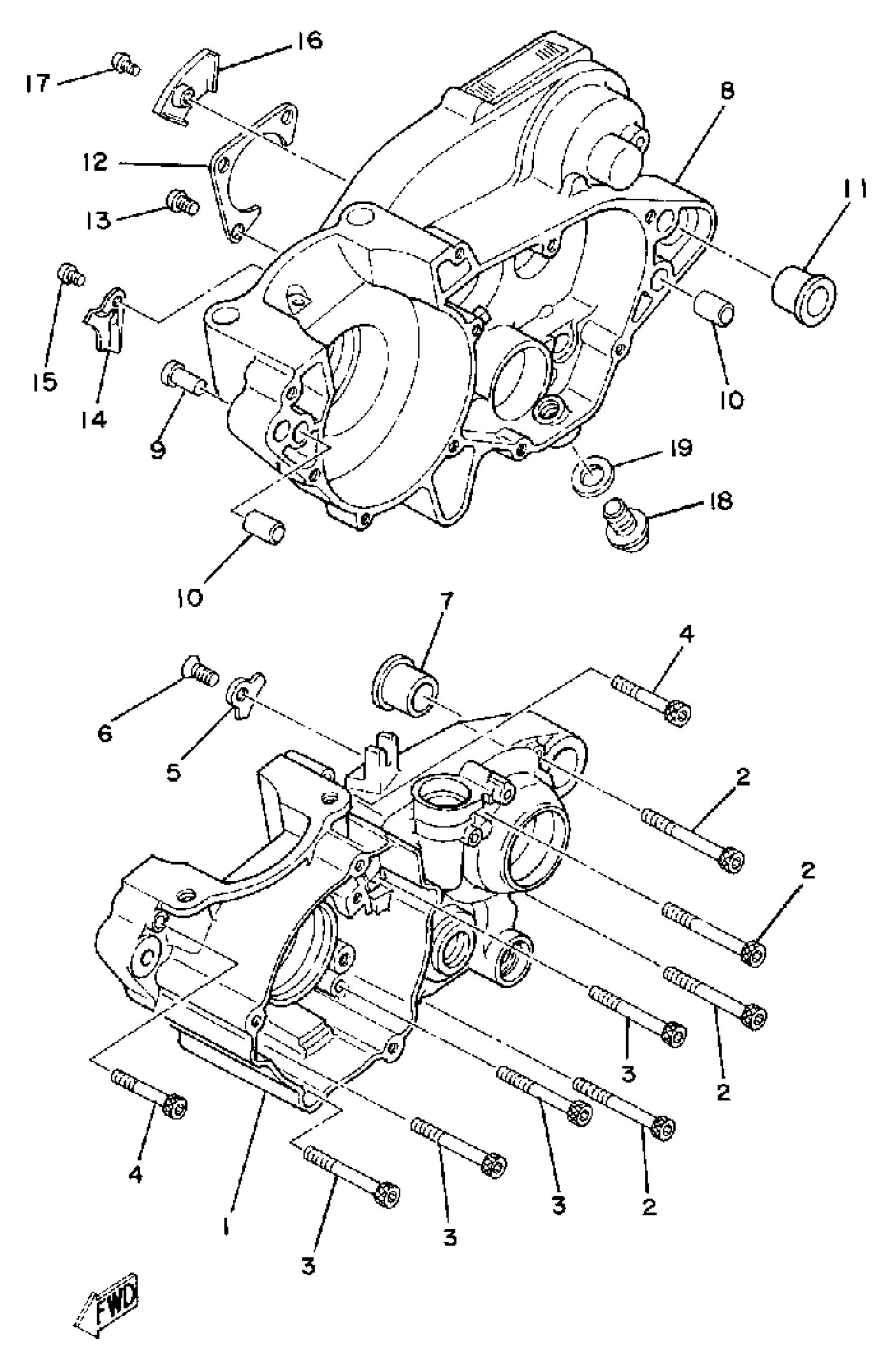

Find the part on the Crankcase diagram for your 1981 Yamaha IT250 (IT250H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha IT250 (IT250H) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

99999-01383-00

1
Out of stock

2

BOLT,SOCKET

91317-06060-00

1
Out of stock

3

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

4

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

5

PLATE, BEARING COVER

3AK-15383-01-00

1

$7.91

In stock

6

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

7

COLLAR

90387-16776-00

1
Out of stock

8

CRANKCASE 2

3R4-15121-02-00

1
Out of stock

9

PLUG (17J)

90338-07124-00

1

$8.55

In stock

10

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

11

COLLAR

90387-16776-00

1
Out of stock

12

PLATE, BEARING COVER

3R4-15381-00-00

1

$4.28

In stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

HOLDER

3R4-15118-00-00

1
Out of stock

15

SCREW, PAN

98507-08010-00

1
Out of stock

16

PLATE

3R4-15113-00-00

1
Out of stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

—

$2.82

In stock

19

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock
