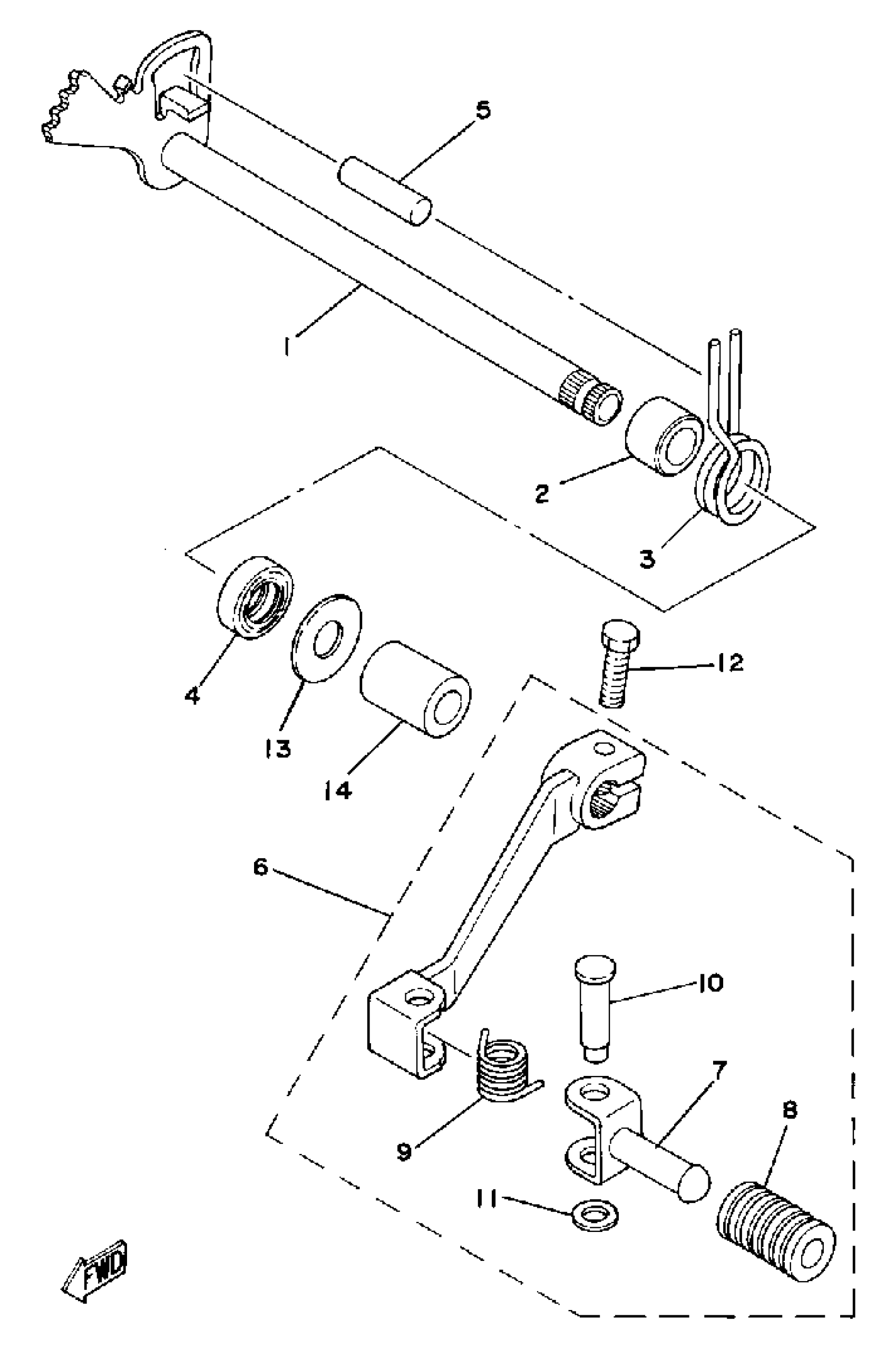

Yamaha IT250G (IT250) 1980 SHIFT SHAFT-PEDAL Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

2K7-18101-00-00

Unavailable

2

SPACER

90560-12171-00

Unavailable

3

SPRING, TORSION (2K7)

90508-32374-00

$7.49

4

SEAL, OIL (30X)

93102-12321-00

$12.49

5

PIN, DOWEL

93608-30152-00

Unavailable

6

SHIFT PEDAL ASSY

2HF-18110-02-00

$53.99

7

PEDAL, SHIFT

3R8-18162-00-00

Unavailable

8

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

9

SPRING, TORSION

90508-20415-00

Unavailable

10

PIN (90243-08017)

90243-08019-00

Unavailable

11

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER

90201-12588-00

$7.49

14

SPACER (3Y1)

90560-12191-00

$7.49
