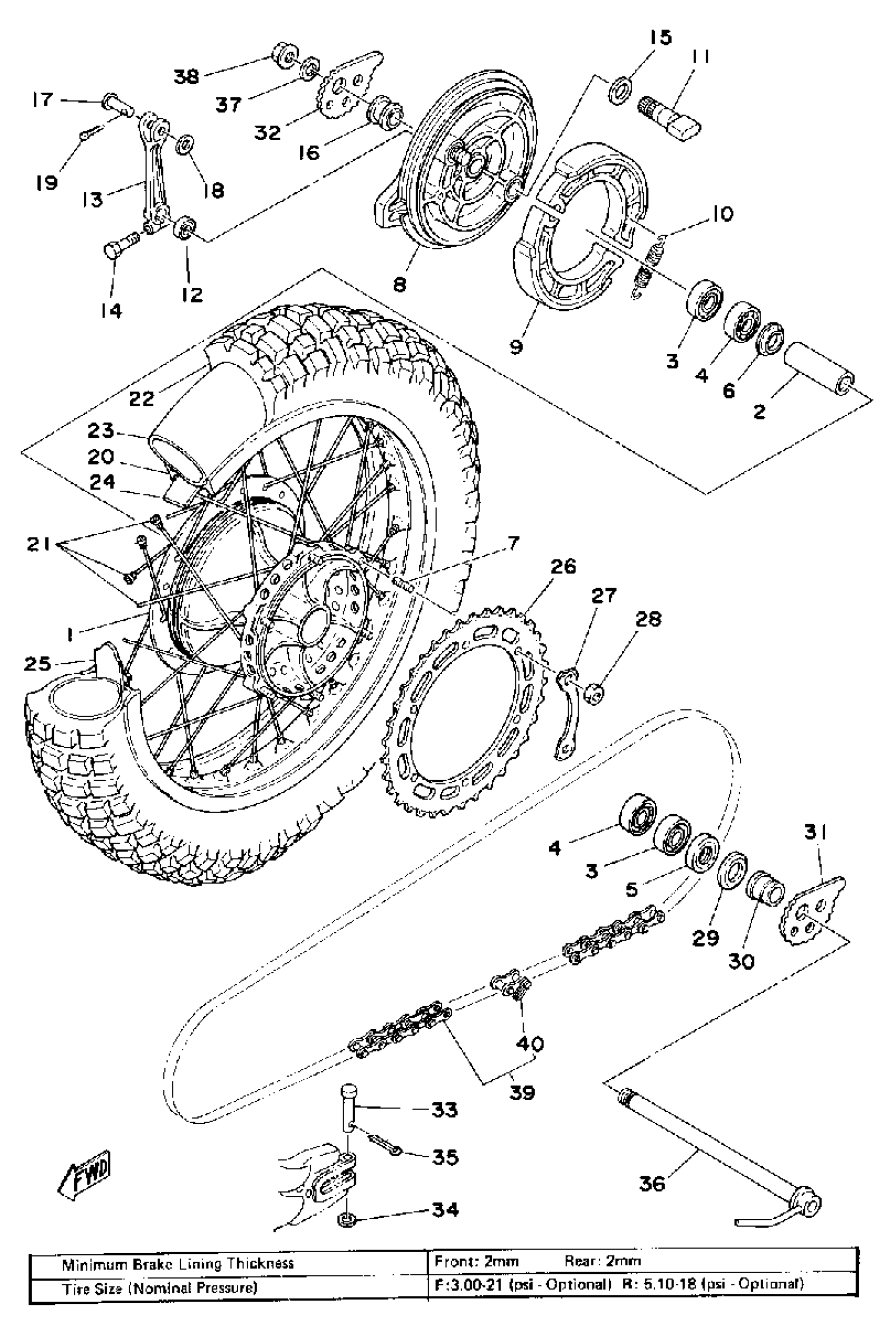

Yamaha IT250G (IT250) 1980 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(483-25311-13-98)

Unavailable

2

SPACER, BEARING

483-25317-01-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

OIL SEAL (25X40X8-248)

93102-25061-00

$13.49

6

FLANGE, SPACER

483-25315-00-00

Unavailable

7

BOLT, STUD (483)

90116-08218-00

$8.49

8

PLATE, BRAKE SHOE

(1W6-25321-00-98)

Unavailable

9

BRAKE SHOE KIT

3BH-W253E-00-00

Unavailable

10

SPRING, TENSION 2462533300

90507-20002-00

$8.49

11

CAMSHAFT

1E6-25151-00-00

Unavailable

12

SEAL, CAM SHAFT

148-25359-00-00

$4.78

13

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

14

BOLT, HEXAGON (462)

90101-06291-00

$8.49

15

SHIM, CAM SHAFT

148-25353-00-00

$6.99

16

COLLAR

(90387-17618-00)

Unavailable

17

PIN, CLEVIS

1W2-27237-00-00

Unavailable

18

WASHER, PLATE (583)

90201-12631-00

Unavailable

19

PIN, COTTER(6L5)

91490-25030-00

Unavailable

20

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

Unavailable

21

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

94151-18562-00

Unavailable

23

TUBE

94245-18125-00

Unavailable

24

BAND, RIM (2J4)

94340-18086-00

Unavailable

25

SPACER,BEAD

1T1-25394-01-00

Unavailable

26

SPROCKET, DRIVEN 44T

38W-25444-20-00

Unavailable

26

SPROCKET, DRIVN 46T

583-25446-10-00

Unavailable

26

SPROCKET, DRIVN 48T (48T)

583-25448-10-00

Unavailable

27

WASHER

2XJ-25412-00-00

Unavailable

28

NUT (583)

90170-08193-00

Unavailable

29

COVER, HUB DUST

431-25367-00-00

Unavailable

30

COLLAR

90387-17555-00

Unavailable

31

PULLER, CHAIN 1

1M1-25388-01-00

Unavailable

32

PULLER, CHAIN 2

1M1-25389-01-00

Unavailable

33

PIN, CLEVIS (565)

91701-08042-00

Unavailable

34

.. WASHER, PLATE

92990-08600-00

Unavailable

35

PIN, COTTER

91490-25020-00

Unavailable

36

AXLE, WHEEL

1W6-25381-00-00

Unavailable

37

WASHER(JN5)

92907-16100-00

Unavailable

38

NUT, SPEC''L SHAPE

90179-16007-00

Unavailable

39

CHAIN 520DS-103L (DID520DS-102L)

9Y585-20101-00

Unavailable

40

JOINT, CHAIN

94681-68001-00

Unavailable
