Description

Price

1

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

2

LEVER 1

23X-83912-02-00

$27.99

3

WASHER, PLATE 1562722600

90201-08083-00

$9.49

4

BOLT(3GB)

90109-061F3-00

$7.49

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

BOLT, HEXAGON

97013-06022-00

$0.90

7

WASHER, SPRING

92995-06100-00

Unavailable

8

HOLDER, LEVER 2

516-82921-30-00

Unavailable

9

LEVER R

23X-83922-01-00

$27.99

10

WASHER, PLATE 1562722600

90201-08083-00

$9.49

11

BOLT(3GB)

90109-061F3-00

$7.49

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

BOLT, HEXAGON

97013-06022-00

$0.90

14

WASHER, SPRING

92995-06100-00

Unavailable

15

SWITCH, HANDLE 3

3R8-83973-00-00

Unavailable

16

SCREW, PAN HEAD

98580-05020-00

Unavailable

17

BAND, SWITCH CORD

437-83936-01-00

Unavailable

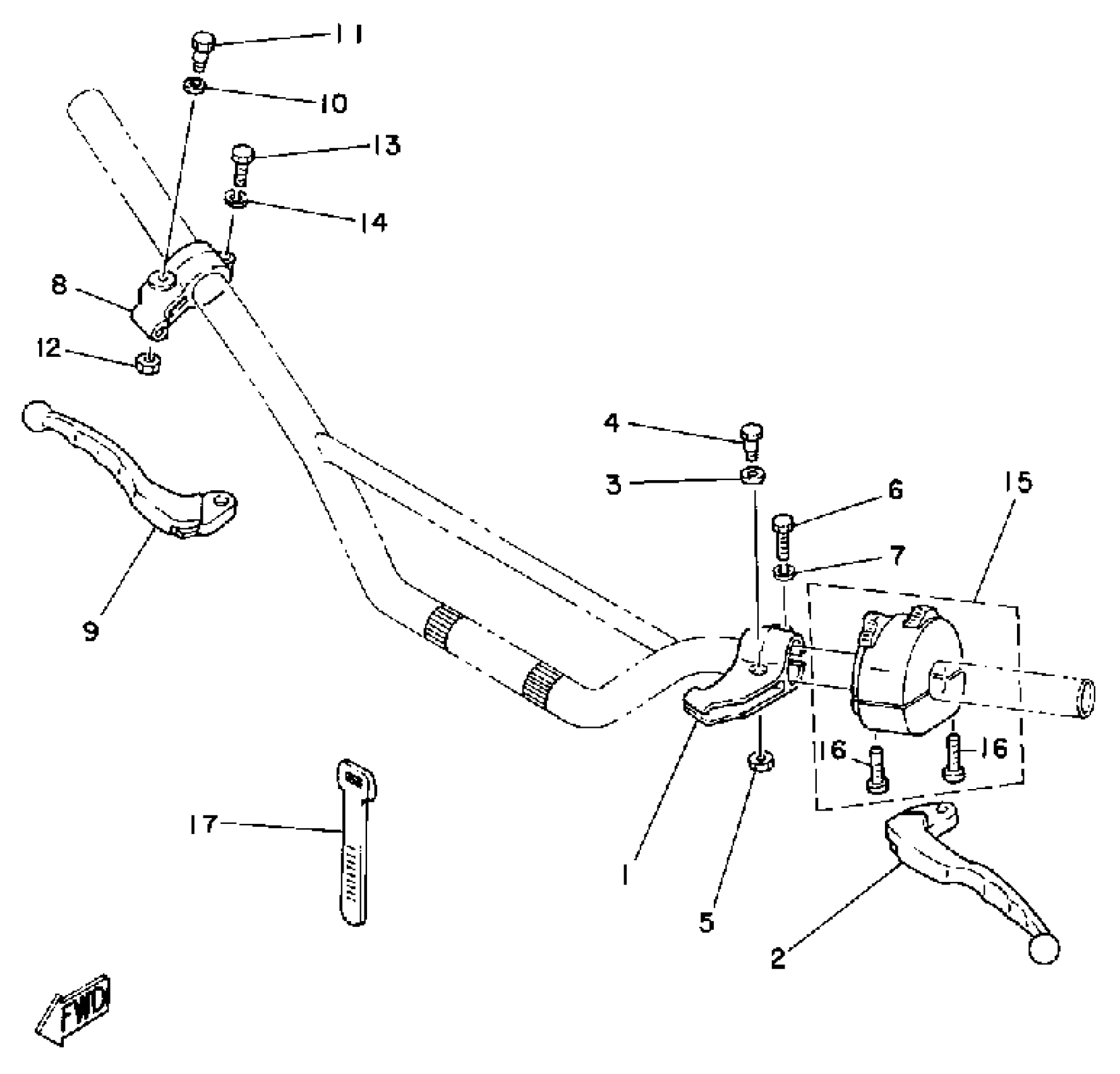

Yamaha IT250G (IT250) 1980 HANDLE SWITCH-LEVER Diagram

HOLDER, LEVER (L.H)

LEVER 1

WASHER, PLATE 1562722600

BOLT(3GB)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

HOLDER, LEVER 2

LEVER R

WASHER, PLATE 1562722600

BOLT(3GB)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

SWITCH, HANDLE 3

SCREW, PAN HEAD

BAND, SWITCH CORD
