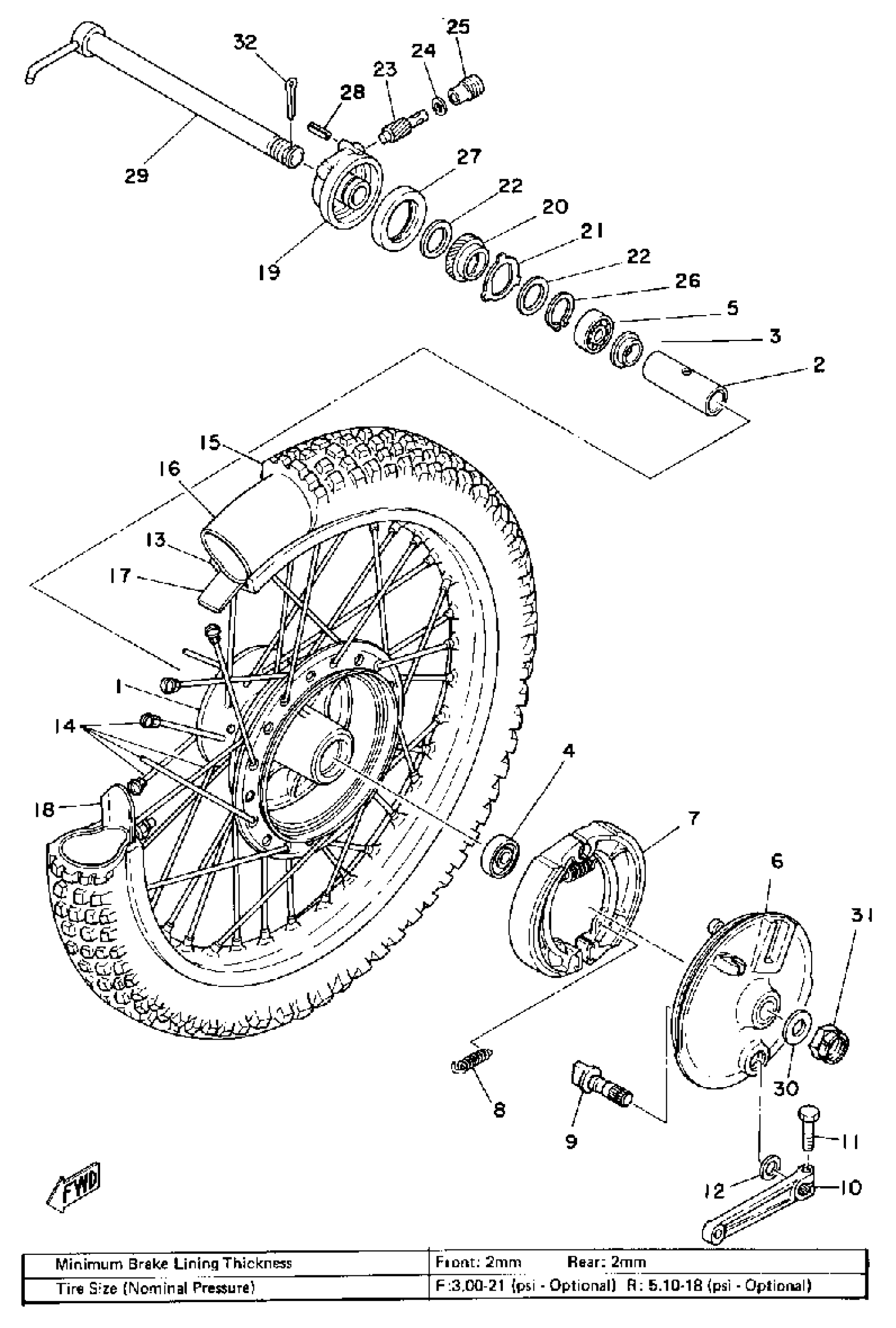

Yamaha IT250G (IT250) 1980 FRONT WHEEL Diagram

HUB, FRONT

1K7-25111-10-98

Unavailable

SPACER

90560-15116-00

Unavailable

FLANGE, SPACER

146-25116-00-00

$8.99

BEARING(3DL)

93306-20226-00

$38.99

BEARING

93306-20205-00

$38.99

BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)

1W1-25016-11-98

Unavailable

BRAKE SHOE KIT

322-W253A-10-00

$29.99

SPRING (5T9)

90506-17328-00

Unavailable

CAMSHAFT

23X-25151-00-00

Unavailable

LEVER, CAMSHAFT 1

322-25155-00-00

Unavailable

BOLT, HEXAGON (462)

90101-06291-00

$8.49

SEAL, CAMSHAFT

137-25159-00-00

Unavailable

RIM 1.60X21

94416-21234-00

Unavailable

SPOKE SET, FRONT

2W6-25104-02-00

Unavailable

300-21 M1B (TT)

(94130-213A4-00)

Unavailable

TUBE

94230-21126-00

Unavailable

BAND, RIM

(94330-21088-00)

Unavailable

SPACER, BEAD

1T1-25194-00-00

Unavailable

GEAR UNIT ASSY

3XP-25190-00-00

Unavailable

GEAR, DRIVE

1W2-25135-00-00

Unavailable

CLUTCH, METER

1K7-25149-00-00

Unavailable

WASHER PLATE 214251470000

90201-22283-00

Unavailable

GEAR, METER

1W2-25138-00-00

Unavailable

SHIM, ROD

102-18416-00-00

Unavailable

BUSH

306-25136-00-00

Unavailable

CIRCLIP(1EY)

99009-22400-00

Unavailable

OIL SEAL(3BC)

93106-40027-00

Unavailable

PIN, SPRING (V60)

91609-20014-00

Unavailable

AXLE, WHEEL

1W2-25181-02-00

Unavailable

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
