- IT250G (IT250) 1980
CRANKSHAFT-PISTON

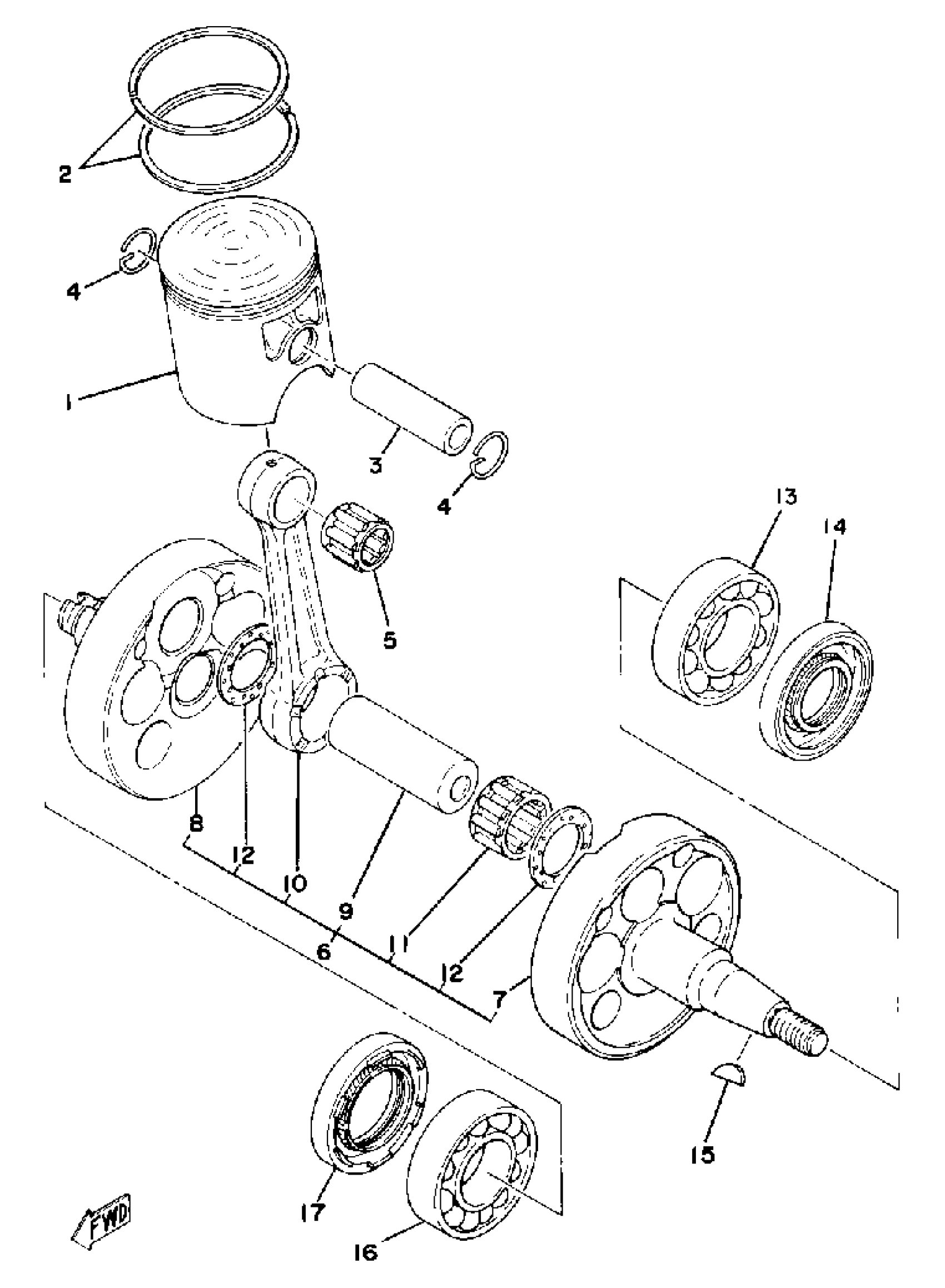

Yamaha IT250G (IT250) 1980 CRANKSHAFT-PISTON Diagram
#
Description
Price
1
PISTON STD
(2X7-11631-00-96)
Unavailable
1
PISTON 1 O/S 0.25
2X7-11635-01-00
Unavailable
1
PISTON 2 O/S 0.50
2X7-11636-01-00
Unavailable
1
PISTON 3 O/S 0.75
2X7-11637-01-00
Unavailable
1
PISTON 4 O/S 1.00
2X7-11638-01-00
Unavailable
2
PISTON RINGSET STD (2X7-11610-00)
1W5-11610-00-00
Unavailable
2
PISTON RINGSET 1ST (2X7-11610-10)
1W5-11610-10-00
Unavailable
2
PISTON RINGSET 2ND (2X7-11610-20)
1W5-11610-20-00
Unavailable
2
PISTON RINGSET 3RD (2X7-11610-30)
1W5-11610-30-00
Unavailable
2
PISTON RINGSET 4TH (2X7-11610-40)
1W5-11610-40-00
Unavailable
3
PIN, PISTON
214-11633-00-00
Unavailable
6
CRANKSHAFT ASSEMBLY
(2X7-11400-00-00)
Unavailable
7
CRANK 1
(2X7-11412-00-00)
Unavailable
8
CRANK 2
(1W3-11422-00-00)
Unavailable
9
PIN, CRANK
2X4-11681-00-00
Unavailable
10
.. ROD, CONNECTING
498-11651-00-00
Unavailable
11
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
12
WASHER 275116850000
90209-25085-00
Unavailable
13
BEARING (5X5)
93306-20627-00
Unavailable
14
OIL SEAL(38V)
93103-30150-00
Unavailable
15
KEY, WOODRUFF
90280-05001-00
Unavailable
16
BEARING (5X5)
93306-20627-00
Unavailable
17
OIL SEAL (434)
93103-40091-00
Unavailable
