1980 Yamaha IT250 (IT250G) Crankcase Diagram

← All diagrams

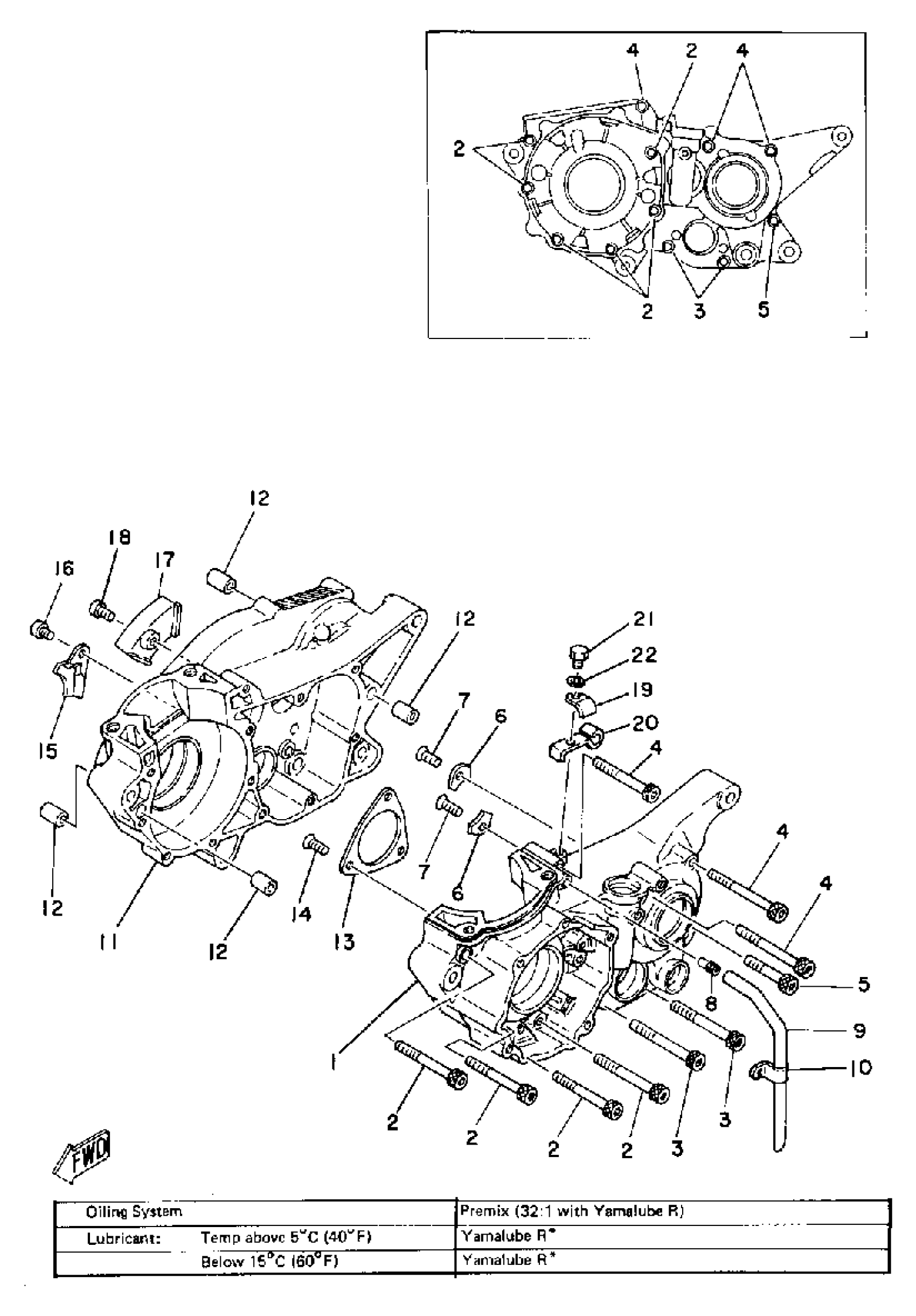

Find the part on the Crankcase diagram for your 1980 Yamaha IT250 (IT250G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha IT250 (IT250G) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

2X7-15111-00-00

1
Out of stock

2

BOLT, SOCKET

91317-06065-00

1
Out of stock

3

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

4

BOLT, SOCKET

91317-06075-00

1
Out of stock

5

BOLT,SOCKET

91317-06045-00

1
Out of stock

6

PLATE, BEARING COVER

4XM-15383-00-00

1

$11.03

In stock

7

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

8

. CONNECTOR, SUCTION PIPE

137-13115-01-00

1
Out of stock

9

HOSE (L340)

90445-08684-00

1

$3.37

In stock

10

CLAMP

(90462-08043-00)

1
Out of stock

11

CRANKCASE 2

(2X7-15121-00-00)

1
Out of stock

12

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

13

PLATE,BRNG COVER

363-15383-00-00

1
Out of stock

14

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

15

HOLDER

(2K7-15118-00-00)

1
Out of stock

16

SCREW, PAN

98507-08010-00

—
Out of stock

17

PLATE

(2K7-15113-00-00)

1
Out of stock

18

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

19

CLAMP

90462-08042-00

1
Out of stock

20

HOLDER, CLCH CABLE

(2K7-15441-02-00)

1
Out of stock

21

BOLT(8CP)

97017-06014-00

—

$5.12

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
