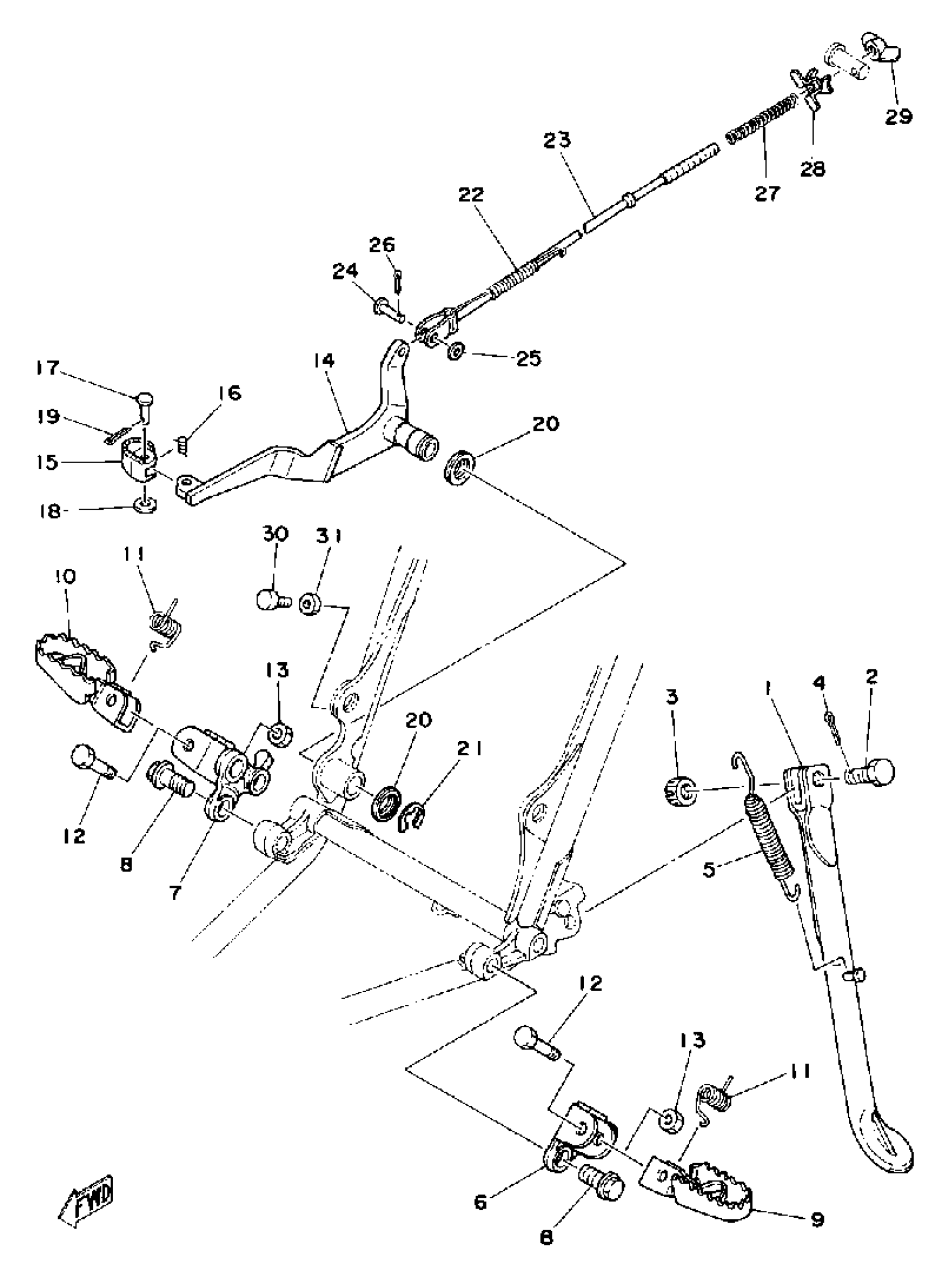

Yamaha IT250F (IT250) 1979 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

1W4-27311-00-00

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING (434)

90507-29008-00

$28.99

6

BRACKET, FOOTREST 1

2X4-27412-00-00

Unavailable

7

BRACKET, FOOTREST 2

(2X7-27422-00-00)

Unavailable

8

BOLT, WASHER BASED

90105-12096-00

Unavailable

9

FOOTREST 1

22W-27411-01-90

$32.99

10

FOOTREST 2

22W-27421-01-90

$32.99

11

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

12

BOLT (2W6)

90101-08428-00

Unavailable

13

NUT, U

95617-08100-00

$9.49

14

PEDAL, BRAKE

2X7-27211-00-00

Unavailable

15

PEDAL, BRAKE

55V-27242-00-00

$23.99

16

SPRING, TORSION (1W2)

90508-14352-00

Unavailable

17

PIN, COTTER (1W2)

91701-06022-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

PIN, COTTER

91490-20025-00

$1.99

20

COVER, DUST

498-27235-00-00

Unavailable

21

CIRCLIP, E-TYPE

99001-15600-00

Unavailable

22

SPRING, TENSION

90506-20128-00

Unavailable

23

ROD, BRAKE

2K5-27231-00-00

Unavailable

24

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

PIN, COTTER

91490-20025-00

$1.99

27

SPRING, (180-27236-00)

90501-10245-00

Unavailable

28

SEAT, SPRING

1W2-27239-00-00

Unavailable

29

NUT (25K)

90179-06411-00

Unavailable

30

BOLT, HEXAGON

97017-06020-00

Unavailable

31

MAIN STAND KIT

(2X7-27000-00-00)

Unavailable

31

NUT(650)

95380-06700-00

Unavailable
