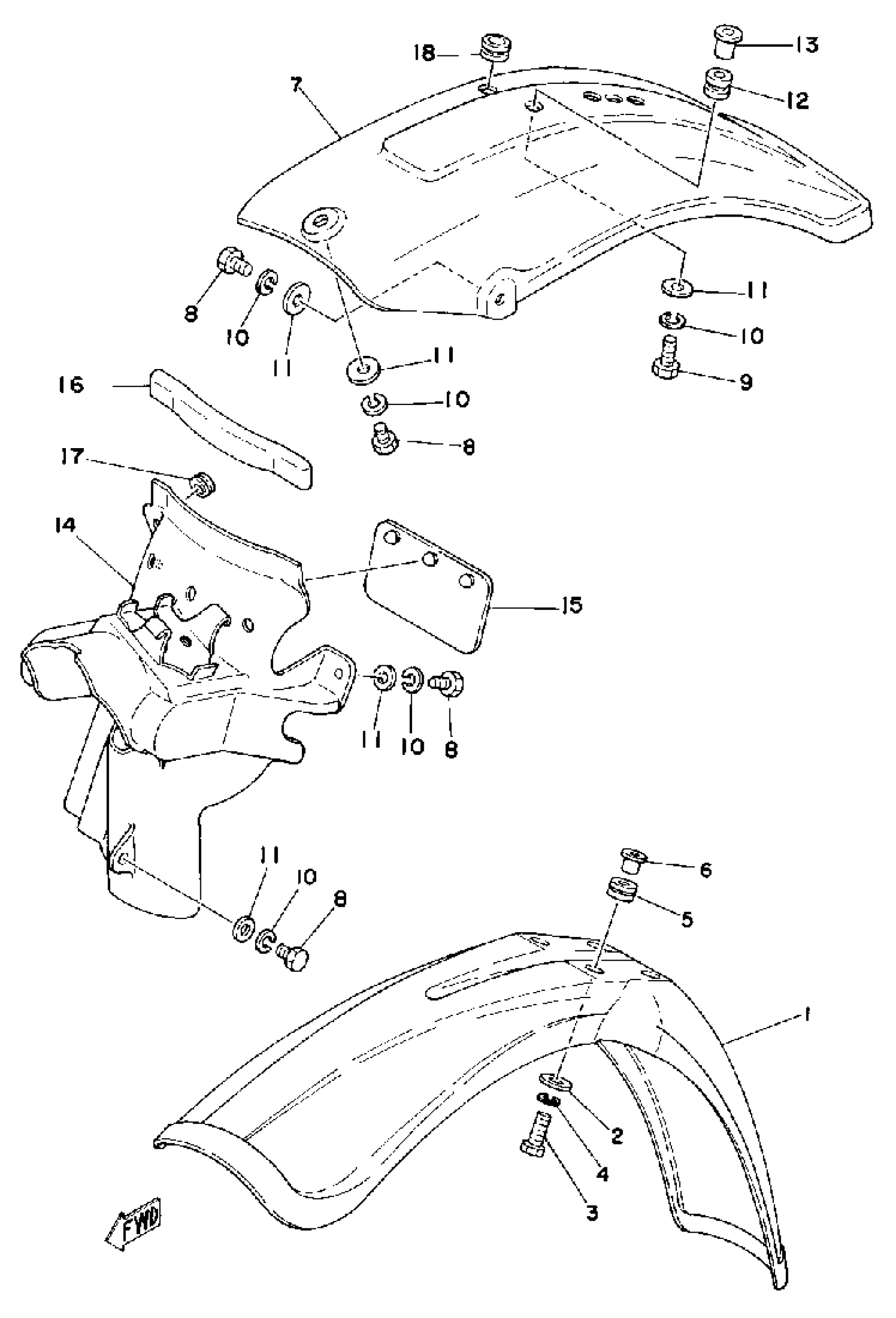

Yamaha IT250F (IT250) 1979 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT SET

99999-02158-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.54

3

BOLT, HEXAGON

97017-06025-00

$2.78

4

WASHER, SPRING

92995-06100-00

$2.95

5

GROMMET

90480-14198-00

$7.10

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

FENDER, REAR

1W2-21611-00-00

Unavailable

8

BOLT(8CP)

97017-06014-00

$4.91

9

BOLT, HEXAGON

97017-06025-00

$2.78

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLATE

90201-06380-00

$0.54

12

GROMMET

90480-14198-00

$7.10

13

COLLAR

90387-06158-00

$5.75

14

PEDAL, BRAKE

2X7-27211-00-00

Unavailable

15

FLAP

1M1-21621-00-00

$12.80

16

. DAMPER

565-21746-00-00

Unavailable

17

GROMMET (462)

90480-13018-00

Unavailable

18

GROMMET (1E6)

90480-15058-00

Unavailable
