FRAME - SIDE COVER

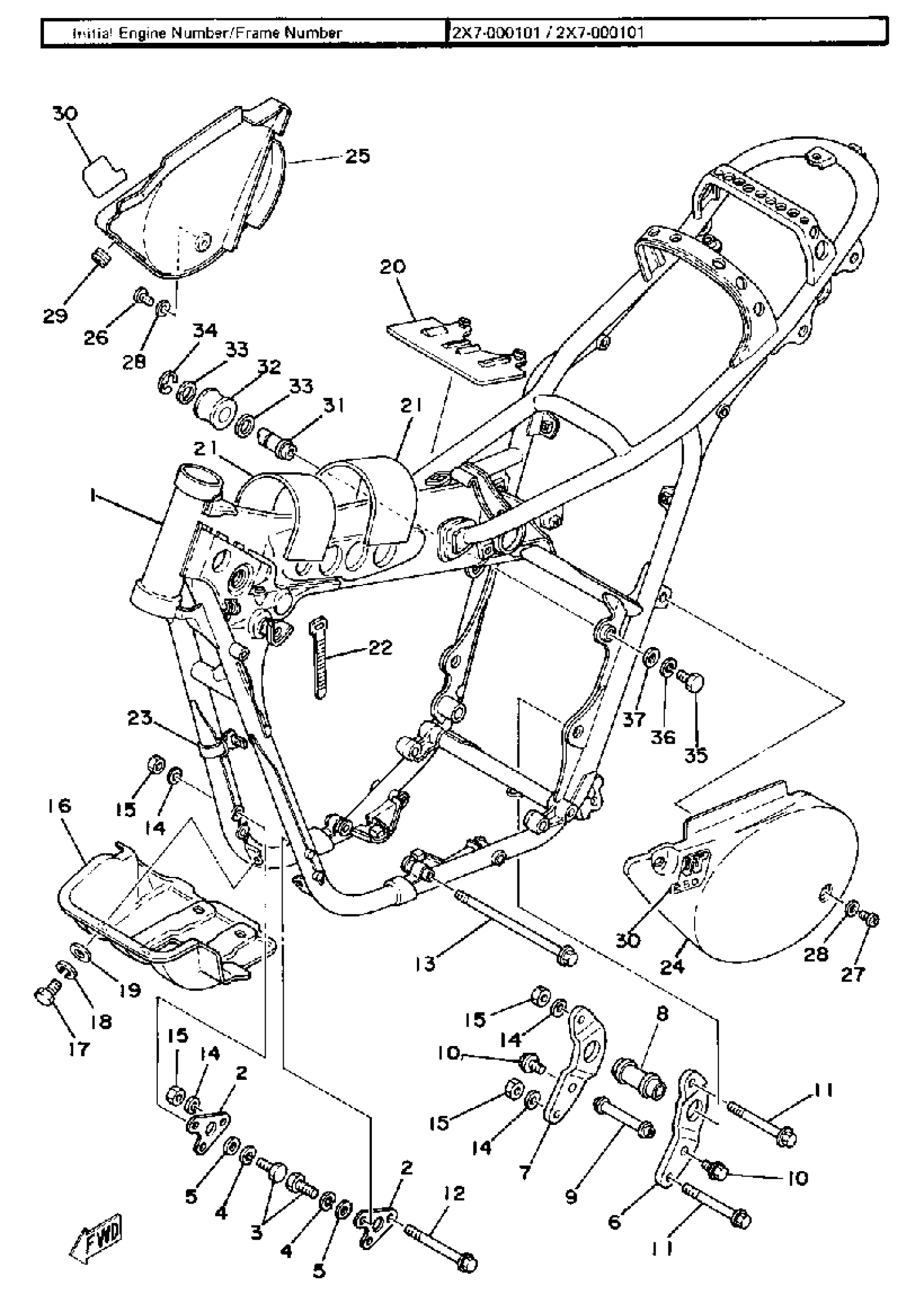

Yamaha IT250F (IT250) 1979 FRAME - SIDE COVER Diagram
#
1
FRAME
(2X7-21110-00-33)
Unavailable
2
BRACKET, FRT UPR 1 (2K7-21415-00)
2X4-21415-00-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BRACKET, REAR LWR 1
2K7-21427-00-00
Unavailable
7
BRACKET, REAR LWR 2
(2K7-21428-00-00)
Unavailable
8
SPACER
(2K7-21459-00-00)
Unavailable
9
NO LONGER AVAILABLE
2K7-21424-00-00
Unavailable
13
BOLT, FLANGE
95817-08180-00
Unavailable
14
WASHER, PLAIN
92990-08200-00
Unavailable
16
PROTECTOR, ENGINE
(2X7-21471-00-00)
Unavailable
17
BOLT(JA9)
90101-08691-00
Unavailable
19
.. WASHER, PLATE
92990-08600-00
Unavailable
20
DAMPER, LOCATING 1
(1W1-24181-00-00)
Unavailable
21
DAMPER, LOCATING 3
1W1-24183-00-00
Unavailable
22
BAND, SWITCH CORD
437-83936-01-00
Unavailable
23
BAND, SWITCH CORD
437-83936-11-00
Unavailable
24
COVER, SIDE 1
1W6-21711-00-26
Unavailable
25
COVER, SIDE 2
1W6-21721-00-26
Unavailable
26
SCREW, BIND (705)
98980-06016-00
Unavailable
27
SCREW, BIND(J45)
98980-06012-00
Unavailable
28
WASHER, PLATE (583 REAR FENDER
90201-06571-00
Unavailable
29
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
30
EMBLEM 6
(2K7-21786-00-00)
Unavailable
31
SHAFT
2K6-2148A-02-00
Unavailable
32
TENSIONER
2K6-22178-00-00
Unavailable
33
WASHER, PLATE
90201-13013-00
Unavailable
34
CIRCLIP
99006-10600-00
Unavailable
35
BOLT, HEXAGON
97013-08020-00
Unavailable
37
WASHER, PLAIN
92990-08200-00
Unavailable
