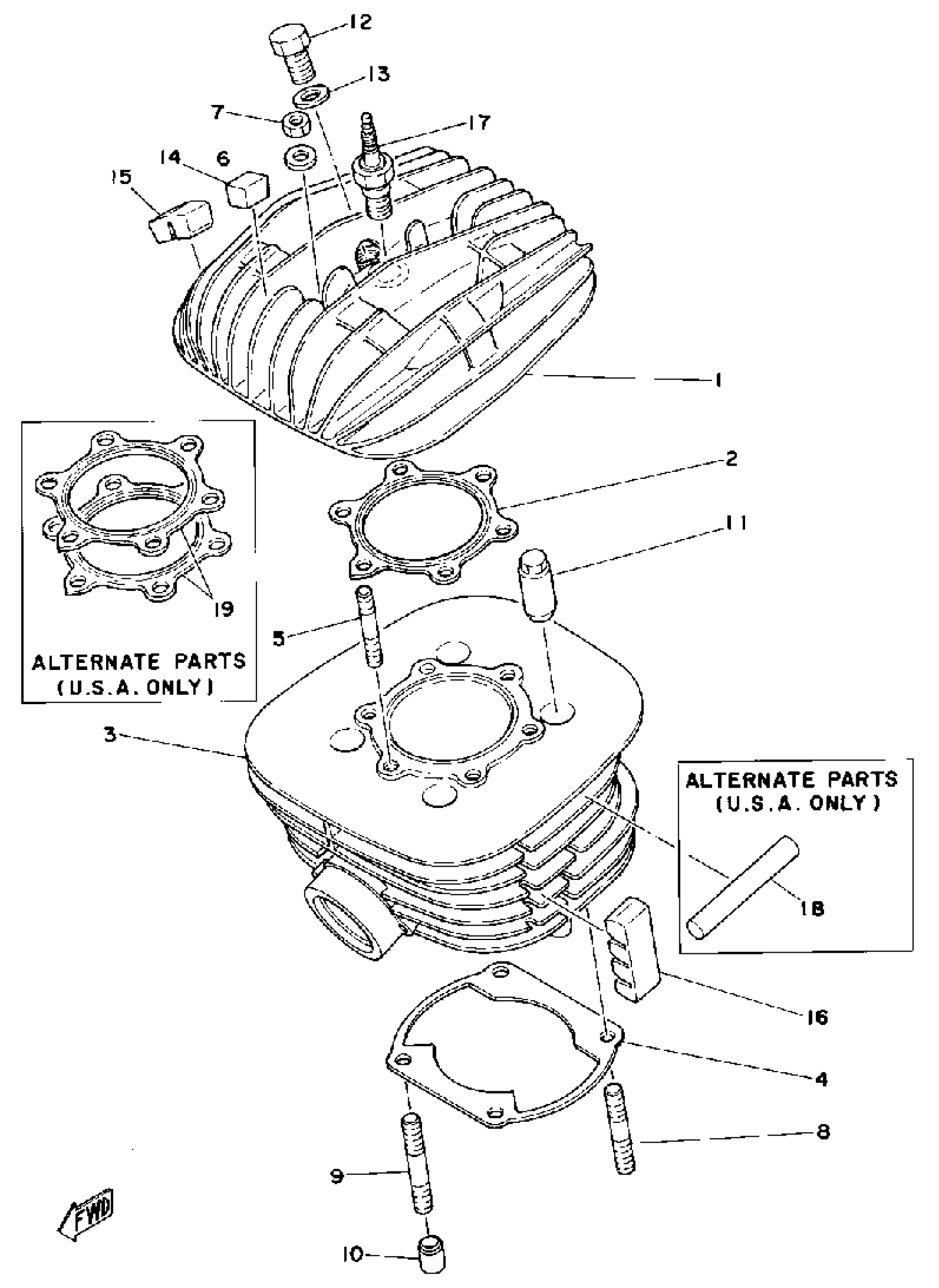

Yamaha IT250F (IT250) 1979 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

(2X7-11111-00-00)

Unavailable

2

GASKET, CYLINDER HEAD

1W3-11181-00-00

Unavailable

3

CYLINDER 1

2X4-11311-00-00

Unavailable

4

GASKET, CYLINDER

2K7-11351-01-00

Unavailable

5

BOLT, STUD(3XV)

90116-08564-00

$10.49

6

WASHER, PLATE (397)

90201-08100-00

$8.49

7

NUT(6L2)

95333-08600-00

$2.49

8

BOLT, STUD (1W4)

90116-10263-00

$11.49

9

BOLT, STUD

90116-10258-00

Unavailable

10

PIN, DOWEL

99530-14016-00

$3.80

11

NUT

90179-10021-00

$25.99

12

PLUG, BLIND

90340-14022-00

Unavailable

13

GASKET

214-11198-01-00

$3.17

14

ABSORBER

363-11161-00-00

$7.99

15

ABSORBER 1

1W2-11161-00-00

Unavailable

16

ABSORBER 3

2A6-11127-00-00

Unavailable

17

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

Unavailable

18

ABSORBER 1

(1W6-11161-00-00)

Unavailable

19

GASKET, CYLINDER HEAD

1W3-11181-00-00

Unavailable
