1986 Yamaha IT200 (IT200S) Stand-Footrest Diagram

← All diagrams

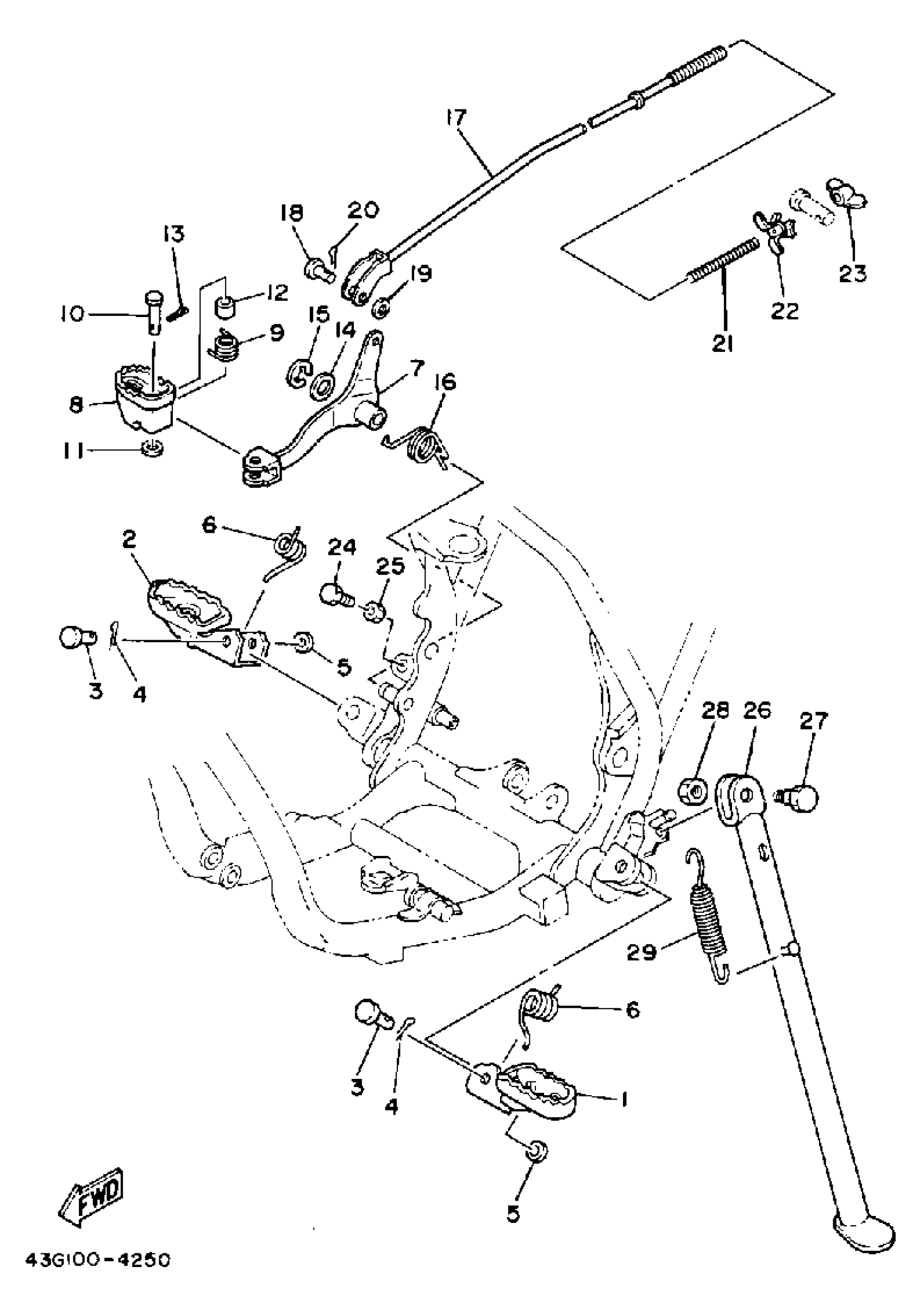

Find the part on the Stand-Footrest diagram for your 1986 Yamaha IT200 (IT200S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha IT200 (IT200S) Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST 1

23X-27411-03-00

1
Out of stock

2

FOOTREST 2

23X-27421-04-00

1
Out of stock

3

PIN, CLEVIS (23X)

90240-10101-00

1

$10.68

In stock

4

PIN, COTTER

91490-25020-00

1

$2.94

In stock

5

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

6

SPRING, TORSION (23X)

90508-20583-00

1

$6.68

In stock

7

PEDAL, BRAKE

49T-27211-00-00

1
Out of stock

8

PEDAL, BRAKE

5X8-27242-00-00

1
Out of stock

9

SPRING, TORSION

90508-20451-00

1
Out of stock

10

PIN, CLEVIS (3R9)

91701-08032-00

—

$2.55

In stock

11

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

12

COLLAR (7G5)

90387-08785-00

1

$6.18

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

WASHER, PLATE(663)

92990-12600-00

1

$6.68

In stock

15

CIRCLIP (4V2)

93430-09038-00

1
Out of stock

16

SPRING, TORSION

90508-32662-00

1
Out of stock

17

ROD, BRAKE

43G-27231-00-00

1
Out of stock

18

PIN, CLEVIS (24X)

90240-06103-00

—

$6.45

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

22

SEAT, SPRING

1W2-27239-00-00

1
Out of stock

23

NUT, AJUSTING

20E-26343-00-00

—

$22.28

In stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

NUT(650)

95380-06700-00

—

$6.17

In stock

26

STAND, SIDE

43G-27311-00-33

1
Out of stock

27

BOLT 122273170100

90109-08032-00

—
Out of stock

28

. NUT

95380-08700-00

1

$3.07

In stock

29

SPRING (460)

90507-29009-00

—
Out of stock
