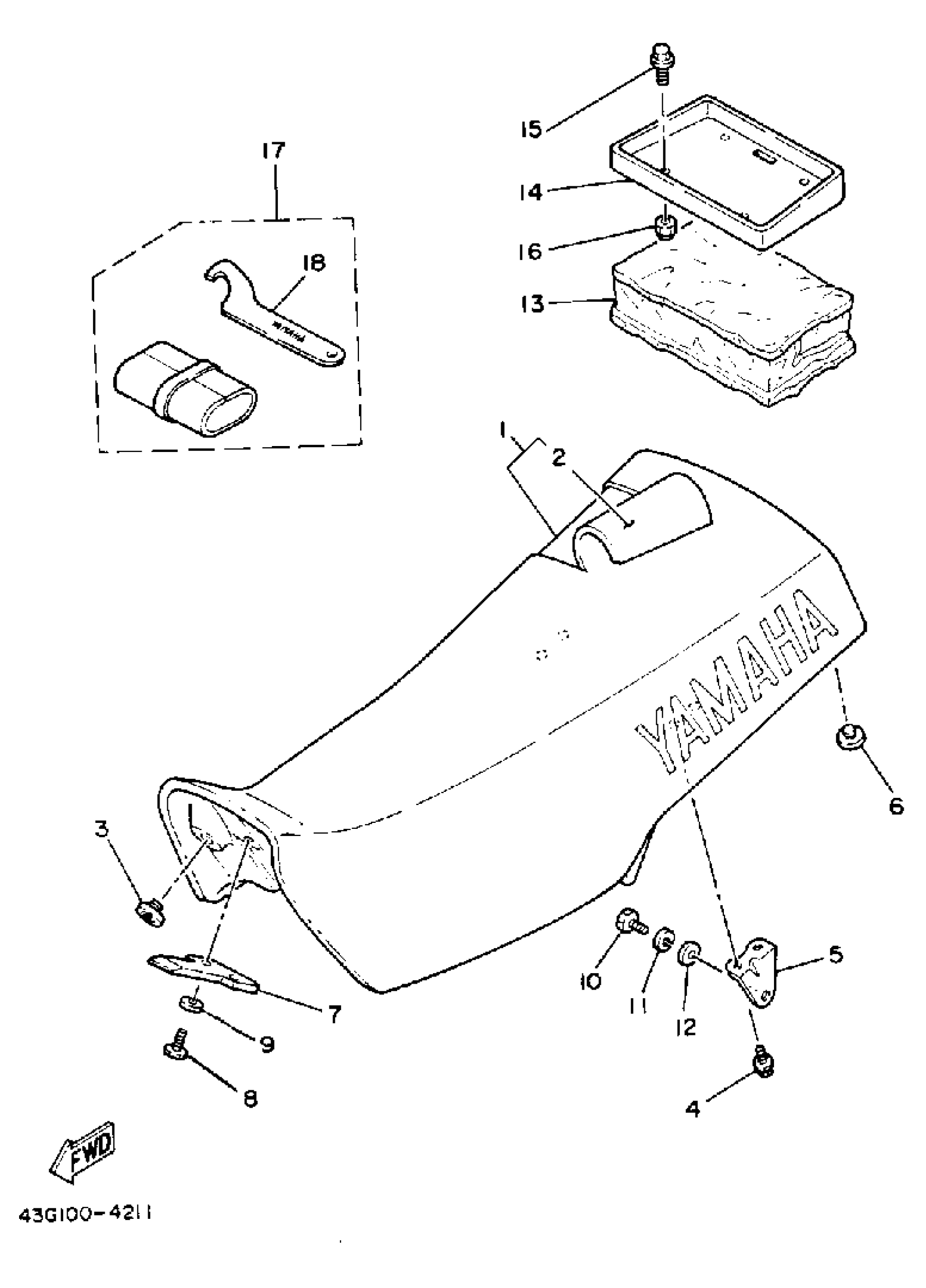

Yamaha IT200S (IT200) 1986 SEAT Diagram
#
Description
Price
1
SEMI-DBL-SEAT ASSEMBLYSEAT ASSEMBLY
43G-W2473-00-00
Unavailable
2
. COVER, DOUBLE SEAT
43G-24731-00-00
Unavailable
5
BRACKET,SEAT
39W-24738-00-00
Unavailable
7
. BRACKET, SEAT
5X6-24748-10-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
13
CARRIER BOX ASSEMBLY
4V5-24850-00-00
Unavailable
14
BRACKET, CARRIER 2
4V5-24833-00-00
Unavailable
16
NUT, U FLANGE
95604-06200-00
Unavailable
17
TOOL KIT
1LN-W2810-01-00
Unavailable
18
SPANNER,SPECIAL
1HX-28135-00-00
Unavailable
