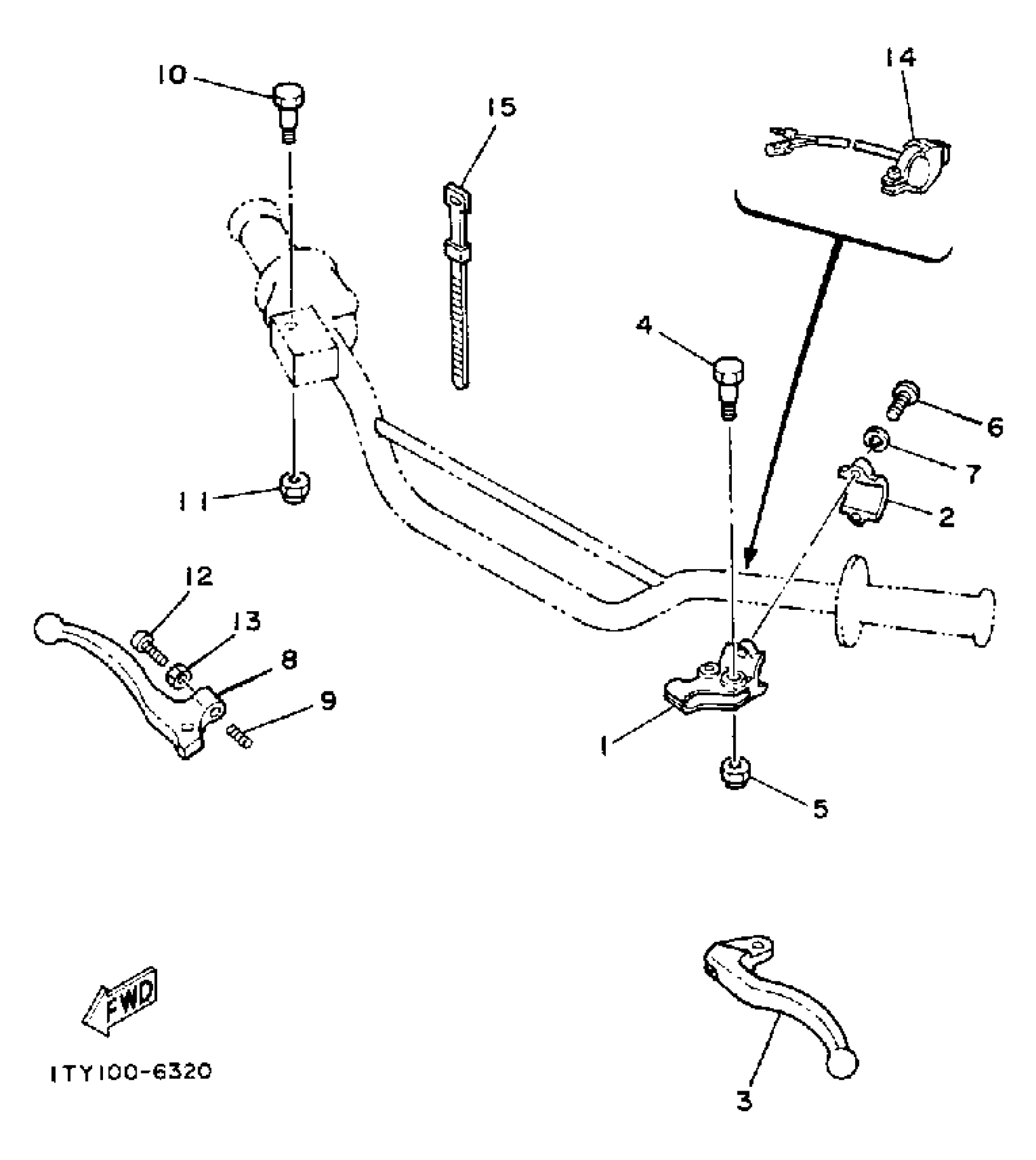

Yamaha IT200S (IT200) 1986 HANDLE SWITCH-LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1RG-82911-00-00

Unavailable

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

7

WASHER(3SX)

92907-05100-00

$8.49

8

LEVER 2

55Y-83922-02-00

$37.99

9

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

10

BOLT(48Y)

90109-062A8-00

$7.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

15

BAND, SWITCH CORD

437-83936-11-00

$4.63
