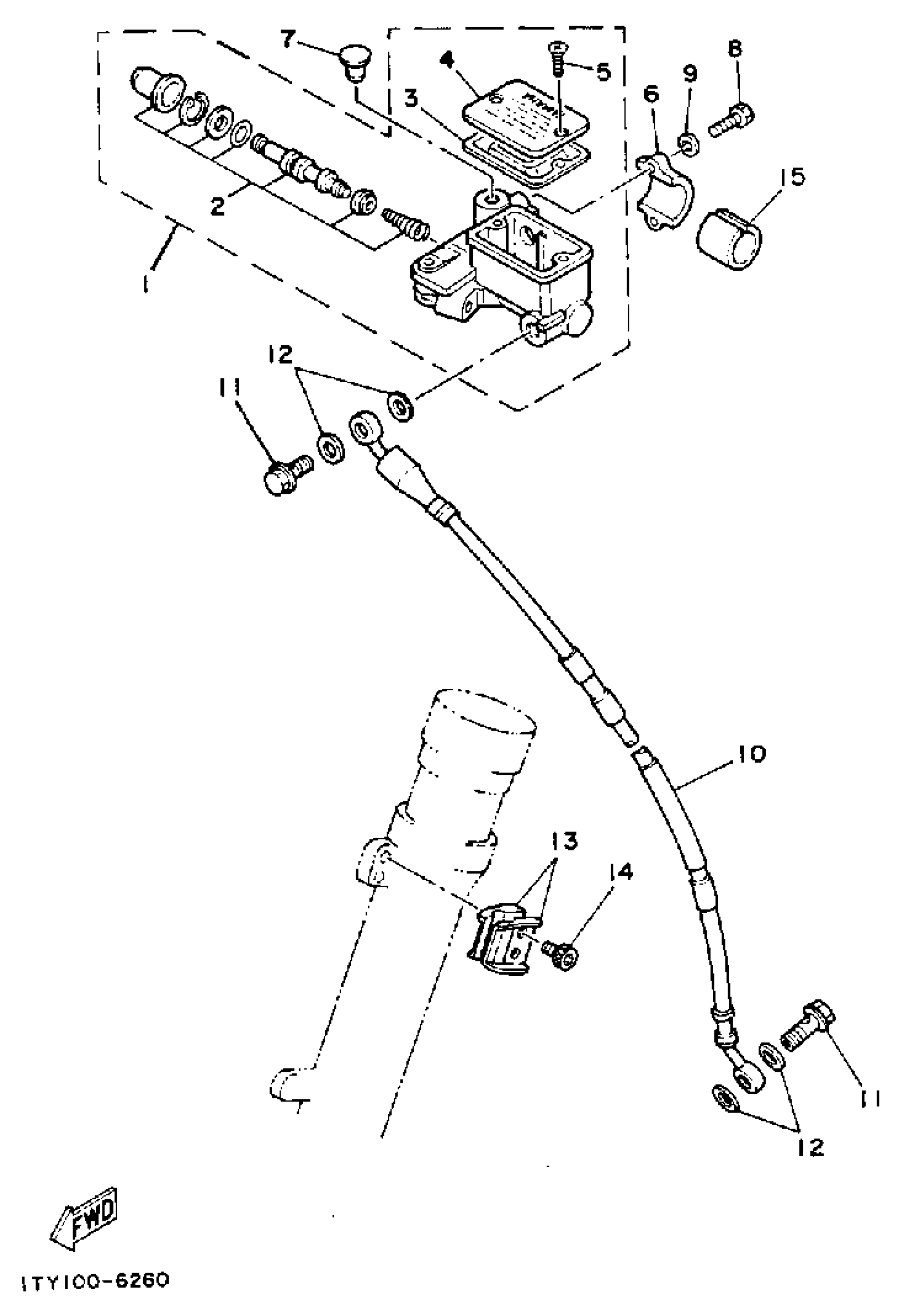

Yamaha IT200S (IT200) 1986 FRONT MASTER CYLINDER Diagram

MSTR.CYL.SUB.ASSY.

3AX-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$69.99

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$27.99

CAP, RESERVOIR (FRONT)

2KF-25852-02-00

Unavailable

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

PLUG (341-26329-00)

90338-09012-00

$9.49

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25

HOSE, BRAKE 1

1TY-25872-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

CLAMP(26A)

90465-16258-00

$11.49

BOLT,SOCKET

91317-06012-00

$8.49

COLLAR(38W)

90387-224L9-00

$10.49
