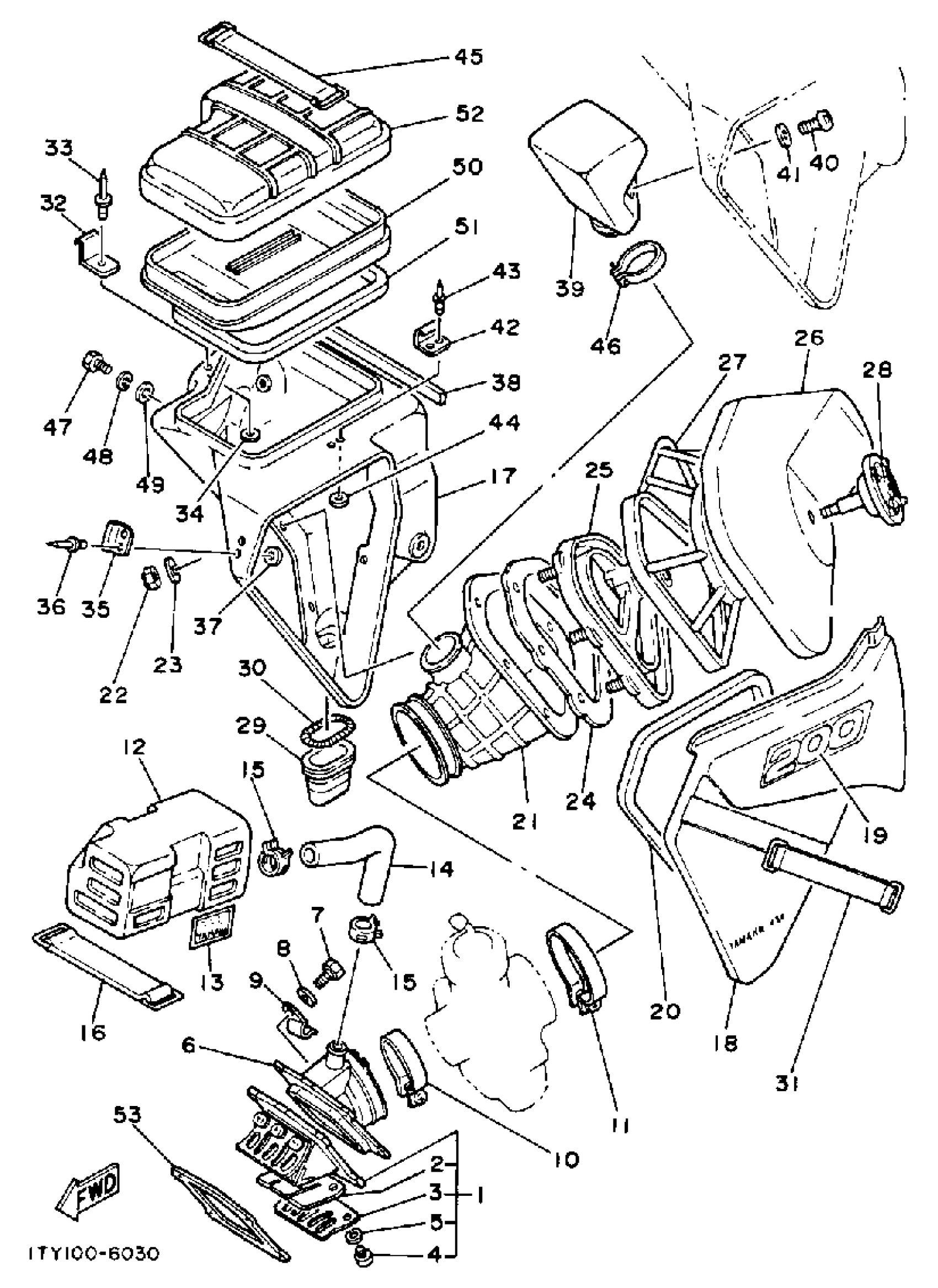

Yamaha IT200S (IT200) 1986 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

1LX-13610-01-00

Unavailable

2

REED, VALVE

55Y-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

55Y-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

JOINT, CARBURETOR

43G-13565-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

9

CLAMP 363154850100

90462-05005-00

Unavailable

10

CLAMP HOSE 278144550000

90460-49058-00

$7.49

11

HOSE CLAMP ASSY

90450-64004-00

$14.99

12

CHAMBER, AIR

5X8-13581-00-00

Unavailable

13

EMBLEM

4V3-1441K-00-00

Unavailable

14

HOSE

90445-210A6-00

Unavailable

15

CLIP (4V3)

90467-20050-00

$4.88

16

BAND, BATTERY

1E6-82131-00-00

Unavailable

17

CASE, AIR CLEANER 1

43G-14411-00-00

Unavailable

18

CAP, CLEANER CASE 1

43G-14412-00-00

Unavailable

19

EMBLEM 1

43G-21781-00-00

Unavailable

20

SEAL

43G-14452-00-00

Unavailable

21

JOINT, AIR CLNR 1

43G-14453-00-00

Unavailable

22

NUT, U

95617-05100-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

SEAL

43G-14462-00-00

Unavailable

25

HOLDER, GUIDE

43G-14459-00-00

Unavailable

26

ELEMENT, AIR CLEANER

43G-14451-01-00

Unavailable

27

GUIDE, ELEMENT

43G-14458-00-00

Unavailable

28

PLATE, ELEMENT FTTTING (4V2-14468-01)

4V2-14468-02-00

Unavailable

29

SEAL

39K-14457-00-00

Unavailable

30

SPRING, COMPRESSION

90504-03033-00

Unavailable

31

BAND

43G-14455-00-00

Unavailable

32

PLATE, CLEANER CASE FITTING

34K-14484-00-00

Unavailable

33

RIVET, BLIND

90267-40029-00

Unavailable

34

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

35

HOOK

26A-14436-00-00

Unavailable

36

RIVET, BLIND

90267-40029-00

Unavailable

37

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

38

SEAL

43G-14457-00-00

Unavailable

39

CHAMBER, AIR 2

(43G-13591-00-00)

Unavailable

40

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

41

WASHER, PLAIN (646)

92990-05600-00

Unavailable

42

HOOK

(43G-14436-00-00)

Unavailable

43

RIVET, BLIND

90267-40029-00

Unavailable

44

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

45

BAND, BATTERY

133-82131-00-00

Unavailable

46

CLAMP, HOSE

90460-36174-00

Unavailable

47

BOLT (661)

97013-06012-00

Unavailable

48

WASHER, SPRING

92995-06100-00

Unavailable

49

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

50

DUCT

43G-14437-00-00

Unavailable

51

SEAL

43G-14467-00-00

Unavailable

52

CAP, CLEANER CASE 2

43G-14422-00-00

Unavailable

53

GASKET8VALVE SEAT

39W-13621-01-00

Unavailable
