1984 Yamaha IT200 (IT200L) Seat Diagram

← All diagrams

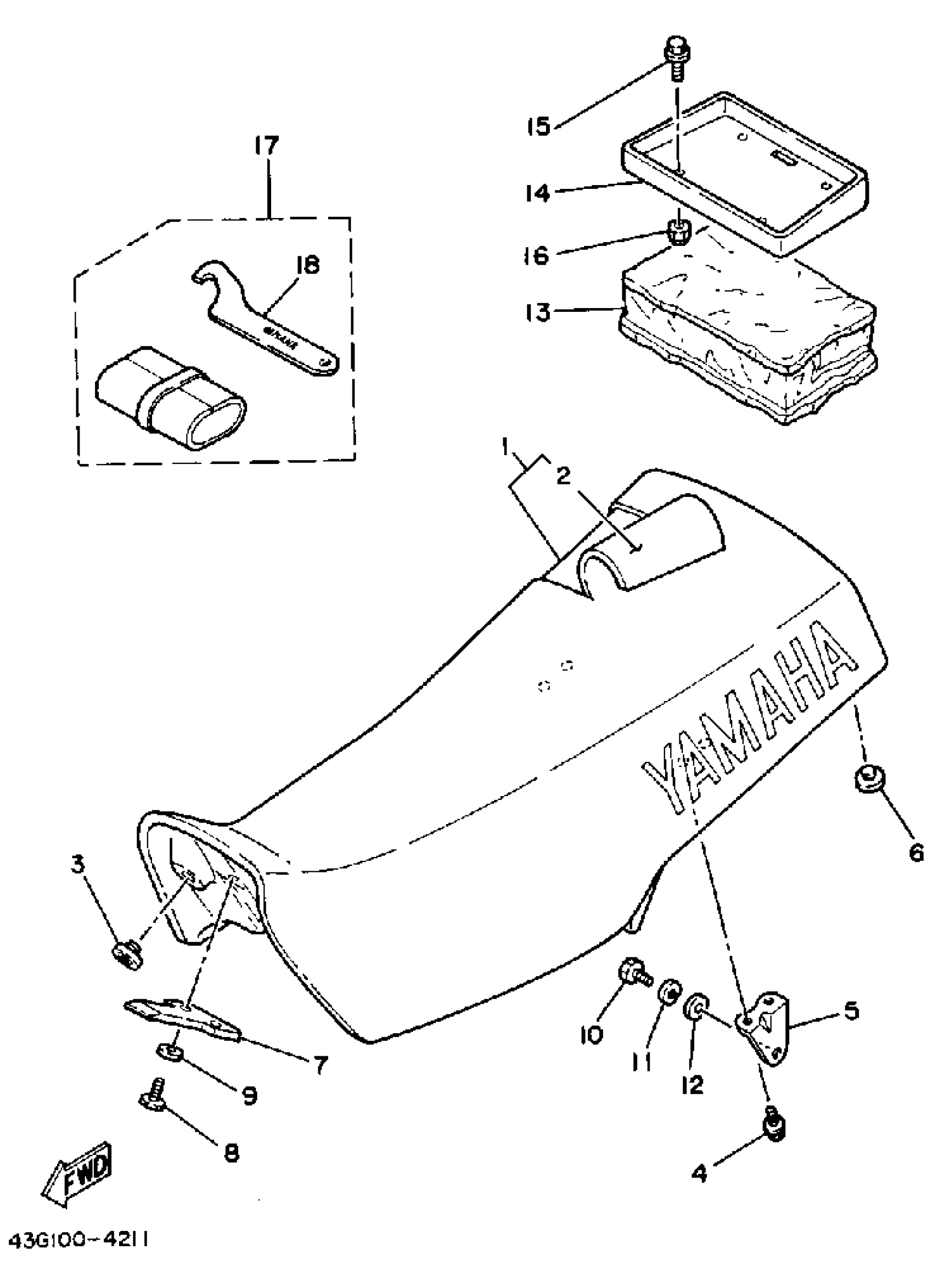

Find the part on the Seat diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha IT200 (IT200L) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASSEMBLYSEAT ASSEMBLY

43G-W2473-00-00

1
Out of stock

2

. COVER, DOUBLE SEAT

43G-24731-00-00

1
Out of stock

3

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

4

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

5

BRACKET,SEAT

39W-24738-00-00

1
Out of stock

6

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

7

. BRACKET, SEAT

5X6-24748-10-00

1
Out of stock

8

BOLT (661)

97013-06012-00

1

$4.71

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

WASHER, PLATE (12X)

90201-087F0-00

1

$3.71

In stock

13

CARRIER BOX ASSEMBLY

4V5-24850-00-00

1
Out of stock

14

BRACKET, CARRIER 2

4V5-24833-00-00

1
Out of stock

15

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

16

NUT, U FLANGE

95604-06200-00

—

$2.35

In stock

17

TOOL KIT

1LN-W2810-01-00

1
Out of stock

18

SPANNER,SPECIAL

1HX-28135-00-00

1
Out of stock
