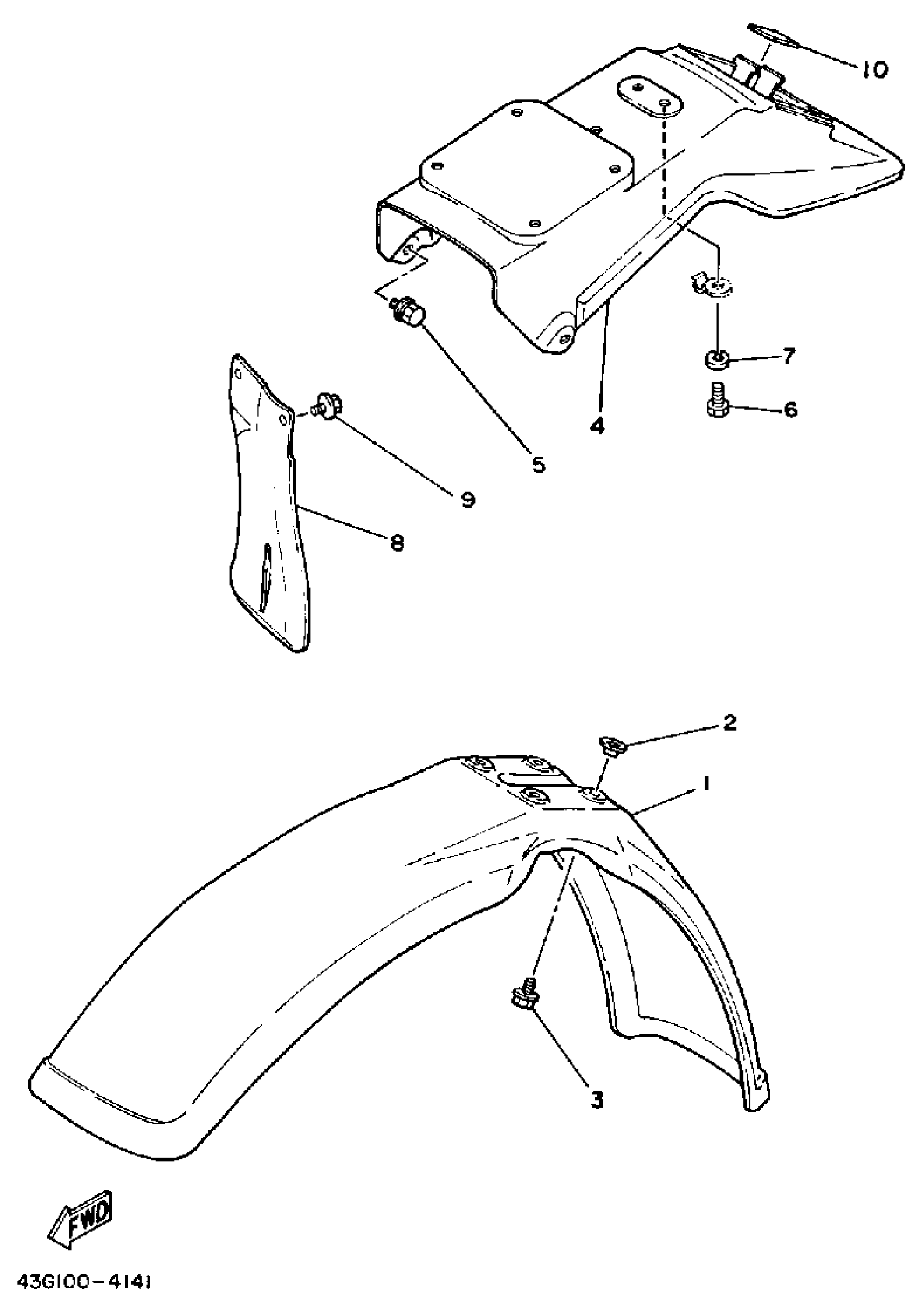

Yamaha IT200L (IT200) 1984 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3R9-21511-11-00

$34.82

2

COLLAR (8G8)

90387-06681-00

$6.17

3

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

4

FENDER, REAR

43G-21610-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06152-00

$2.56

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

7

WASHER, SPRING

92995-06100-00

$2.95

8

GUARD, FLAP

43G-21642-00-00

Unavailable

9

BOLT, WITH WASHER(55K)

90119-06117-00

$3.49

10

DAMPER

22F-2139X-00-00

$5.96
