Description

Price

1

H0LDER, LEVER 1

38V-82911-00-00

$38.99

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

WASHER, PLATE 1562722600

90201-08083-00

$9.49

5

BOLT(3GB)

90109-061F3-00

$7.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

WASHER(3SX)

92907-05100-00

$8.49

9

H0LDER, LEVER 2

38V-82921-00-00

$42.99

10

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

11

LEVER R

23X-83922-01-00

$27.99

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

BOLT(3GB)

90109-061F3-00

$7.49

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

16

WASHER(3SX)

92907-05100-00

$8.49

17

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

18

BAND, SWITCH CORD

437-83936-11-00

Unavailable

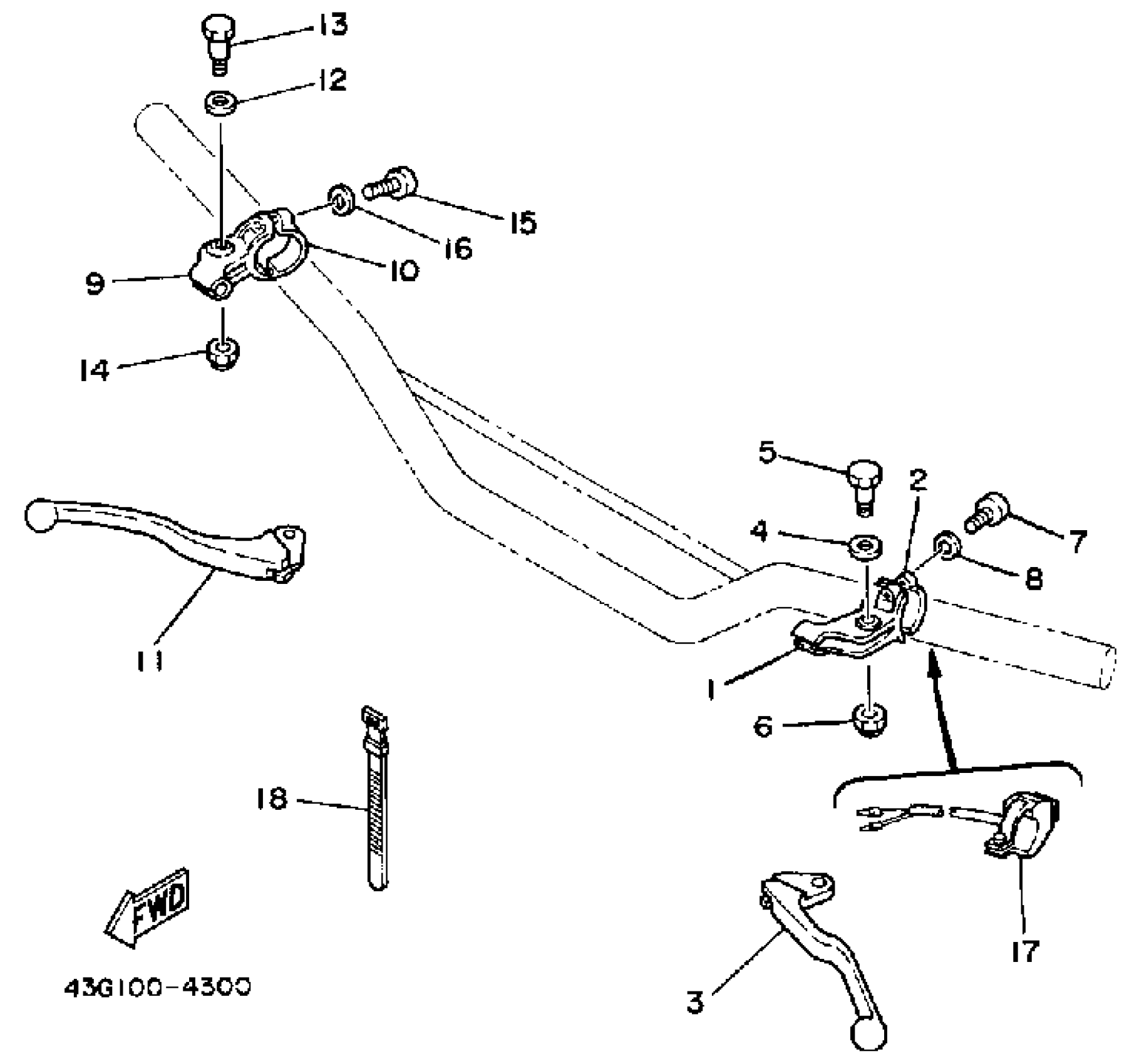

Yamaha IT200L (IT200) 1984 HANDLE SWITCH-LEVER Diagram

H0LDER, LEVER 1

H0LDER, LEVER L0WER 1

LEVER 1

WASHER, PLATE 1562722600

BOLT(3GB)

NUT, SELF-LOCKING

SCREW, PAN HEAD(4MY)

WASHER(3SX)

H0LDER, LEVER 2

H0LDER, LEVER L0WER 1

LEVER R

WASHER, PLATE 1562722600

BOLT(3GB)

NUT, SELF-LOCKING

SCREW, PAN HEAD(4MY)

WASHER(3SX)

SWITCH, HANDLE 1

BAND, SWITCH CORD
