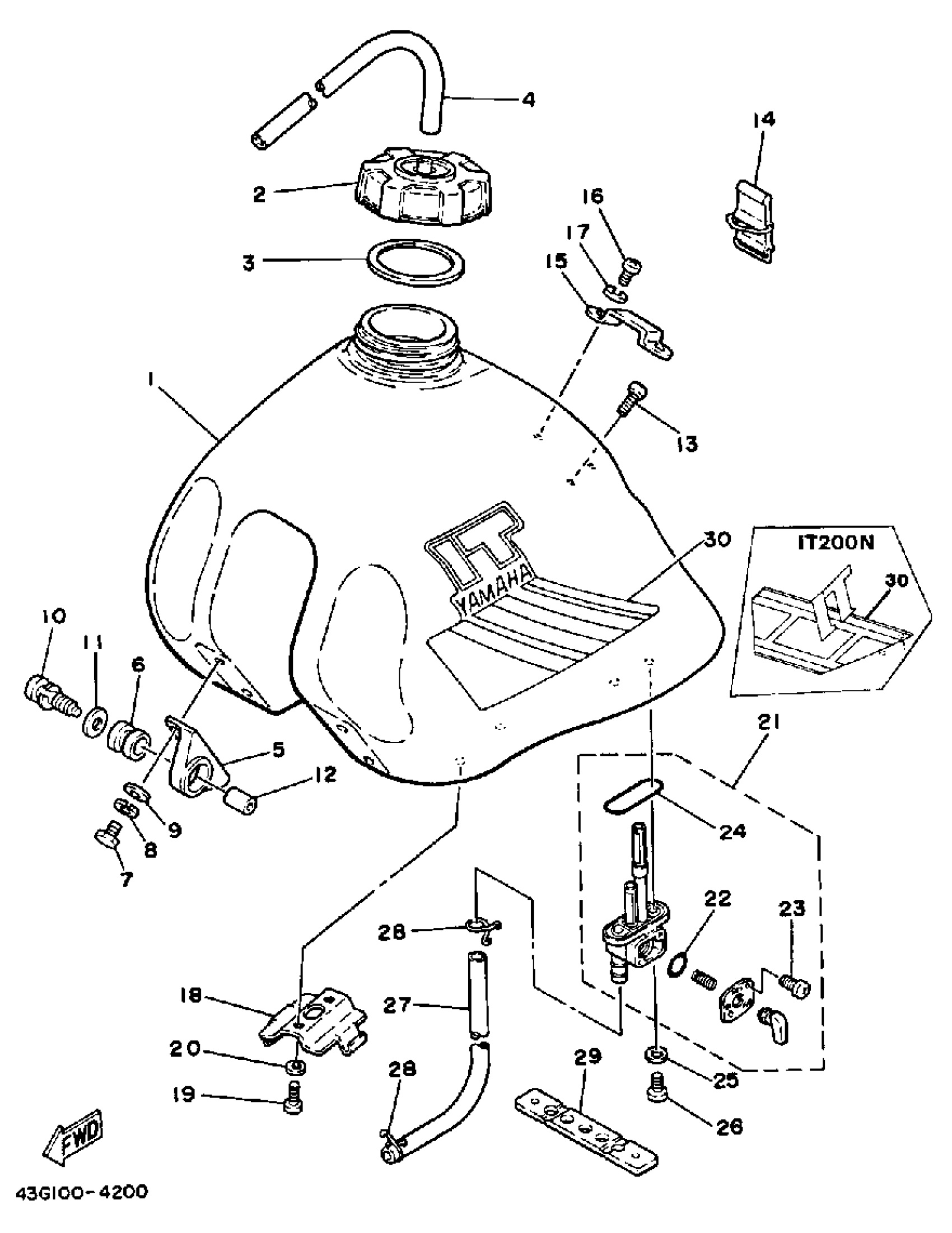

Yamaha IT200L (IT200) 1984 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

99999-01654-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

GASKET,CAP

3R9-24612-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

HOLDER, DAMPER

5XE-24144-00-00

$23.99

6

GROMMET(4AA)

90480-18549-00

$10.49

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

11

WASHER, PLATE (J10)

90201-06697-00

$8.49

12

COLLAR (1M1)

90387-06553-00

$9.49

13

SCREW(3JM)

90149-06306-00

$8.49

14

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

15

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

STAY,CHAMBER

4AA-2415F-00-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

FUEL COCK ASSEMBLY 1

43G-24500-00-00

Unavailable

22

O-RING

4X8-24534-00-00

Unavailable

23

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

24

O-RING

4X8-24512-00-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

26

SCREW 256241430000

90149-06011-00

Unavailable

27

HOSE (L198)

90445-11293-00

Unavailable

28

CLIP

90467-100A1-00

Unavailable

29

DAMPER, LOCATING 1

43G-24181-00-00

Unavailable

30

GRAPHIC SET

1TY-24250-00-00

Unavailable

30

GRAPHIC SET

(49T-24250-00-00)

Unavailable
