1984 Yamaha IT200 (IT200L) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1984 Yamaha IT200 (IT200L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

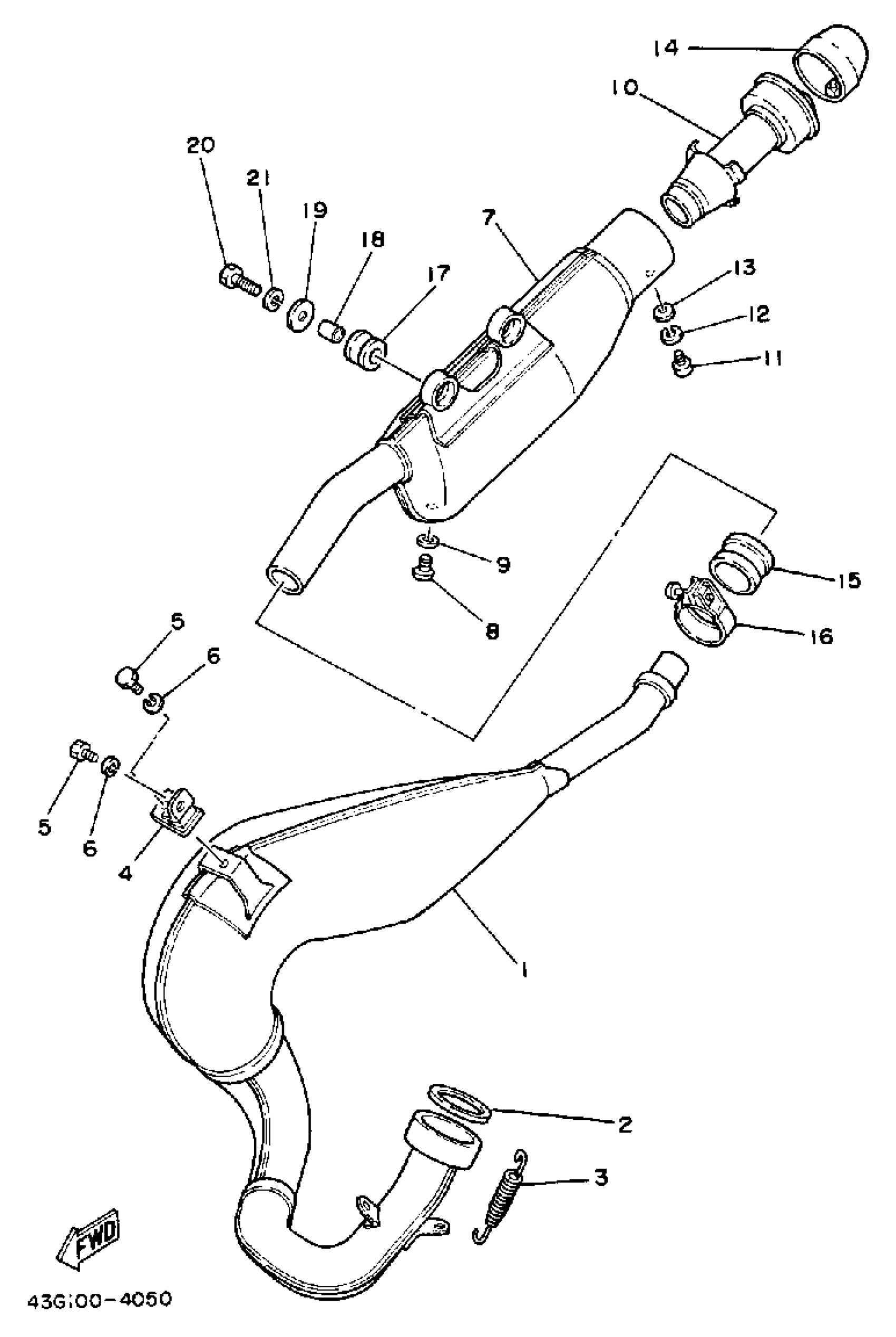

1984 Yamaha IT200 (IT200L) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(43G-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST PIPE

3R6-14613-01-00

1

$22.14

In stock

3

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

4

STAY, MUFFLER 2

1M1-14772-00-00

1
Out of stock

5

BOLT (661)

97013-06012-00

1

$4.71

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SILENCER, EXHAUST

43G-14753-00-00

1
Out of stock

8

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

9

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

10

PIPE, OUTLET

5X8-14752-01-00

1
Out of stock

11

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

14

CAP, SILENCER

1W2-14787-00-00

1
Out of stock

15

GASKET, MUFFLER JOINT

1M1-14714-00-00

—

$64.14

In stock

16

CLAMP, HOSE (5H0)

90460-43179-00

—

$16.69

In stock

17

GROMMET

90480-22269-00

1
Out of stock

18

COLLAR

90387-081A3-00

1
Out of stock

19

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

20

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
