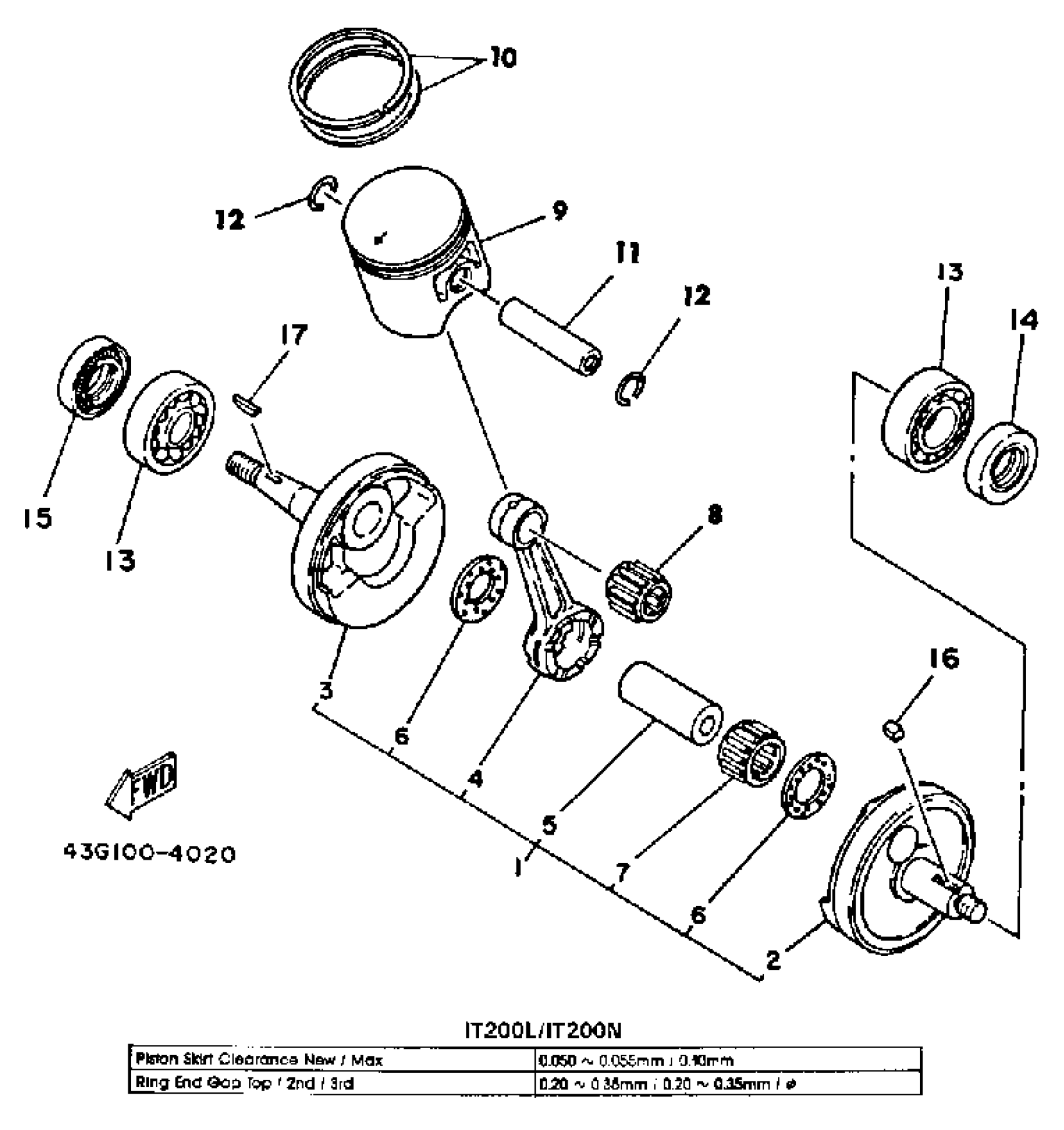

Yamaha IT200L (IT200) 1984 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

43G-11400-00-00

Unavailable

2

. CRANK 1

43G-11412-00-00

Unavailable

3

. CRANK 2

43G-11422-00-00

Unavailable

4

ROD, CONNECTING

43G-11651-00-00

$103.73

5

PIN, CRANK 1

37F-11681-00-00

$37.39

6

WASHER (29L)

90209-22248-00

Unavailable

7

BEARING

93310-52238-00

$62.32

8

BEARING, CYLINDRICAL(8AX)

93310-316D6-00

$32.45

9

PISTON STD

43G-11631-00-95

Unavailable

10

PISTON RING SET (STD)

3JM-11601-00-00

$46.67

11

PIN, PISTON

251-11633-00-00

$22.27

12

CIRCLIP(1AR)

93450-17129-00

$2.72

13

BEARING(43G)

93306-20562-00

$39.24

14

OIL SEAL(3KX)

93103-32171-00

$26.24

15

OIL SEAL(43G)

93102-25331-00

$10.63

16

KEY, STRAIGHT (3L5)

90282-05034-00

Unavailable

17

PISTON RING SET (0.25MM O/S)

3JM-11601-10-00

Unavailable

17

PISTON RING SET (0.50MM O/S)

3JM-11601-20-00

Unavailable

17

PISTON RINGSET 3RD

43G-11601-30-00

Unavailable

17

PISTON RINGSET 4TH

43G-11601-40-00

Unavailable

17

PISTON KIT 1ST (1ST O/S)

43G-11630-10-00

Unavailable

17

PISTON KIT 2ND (2ND O/S)

43G-11630-20-00

Unavailable

17

PISTON KIT 3RD (3RD O/S)

43G-11630-30-00

Unavailable

17

PISTON KIT 4TH (4TH O/S)

43G-11630-40-00

Unavailable

17

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

43G-11635-00-00

Unavailable

17

PISTON 2 O/S 0.50 (2ND O/S 0.50MM)

43G-11636-00-00

Unavailable

17

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

43G-11637-00-00

Unavailable

17

PISTON 4 O/S 1.00 (4TH O/S 1.00MM)

43G-11638-00-00

Unavailable

17

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
