Description

Price

1

CRANKCASE 1

43G-15111-00-00

Unavailable

2

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

3

CRANKCASE 2

43G-15121-00-00

Unavailable

4

COLLAR

90387-16781-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT,SOCKET

91317-06035-00

Unavailable

7

BOLT,SOCKET

91317-06050-00

$3.88

8

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

9

BOLT,SOCKET

91317-06045-00

$4.99

10

HOSE (L340)

90445-08684-00

$4.29

11

PLUG (17J)

90338-07124-00

$10.49

12

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

13

GASKET (3JD1)

90430-12207-00

$7.99

14

HOLDER

3R3-15128-01-00

Unavailable

15

SCREW, PAN

98507-08010-00

$8.49

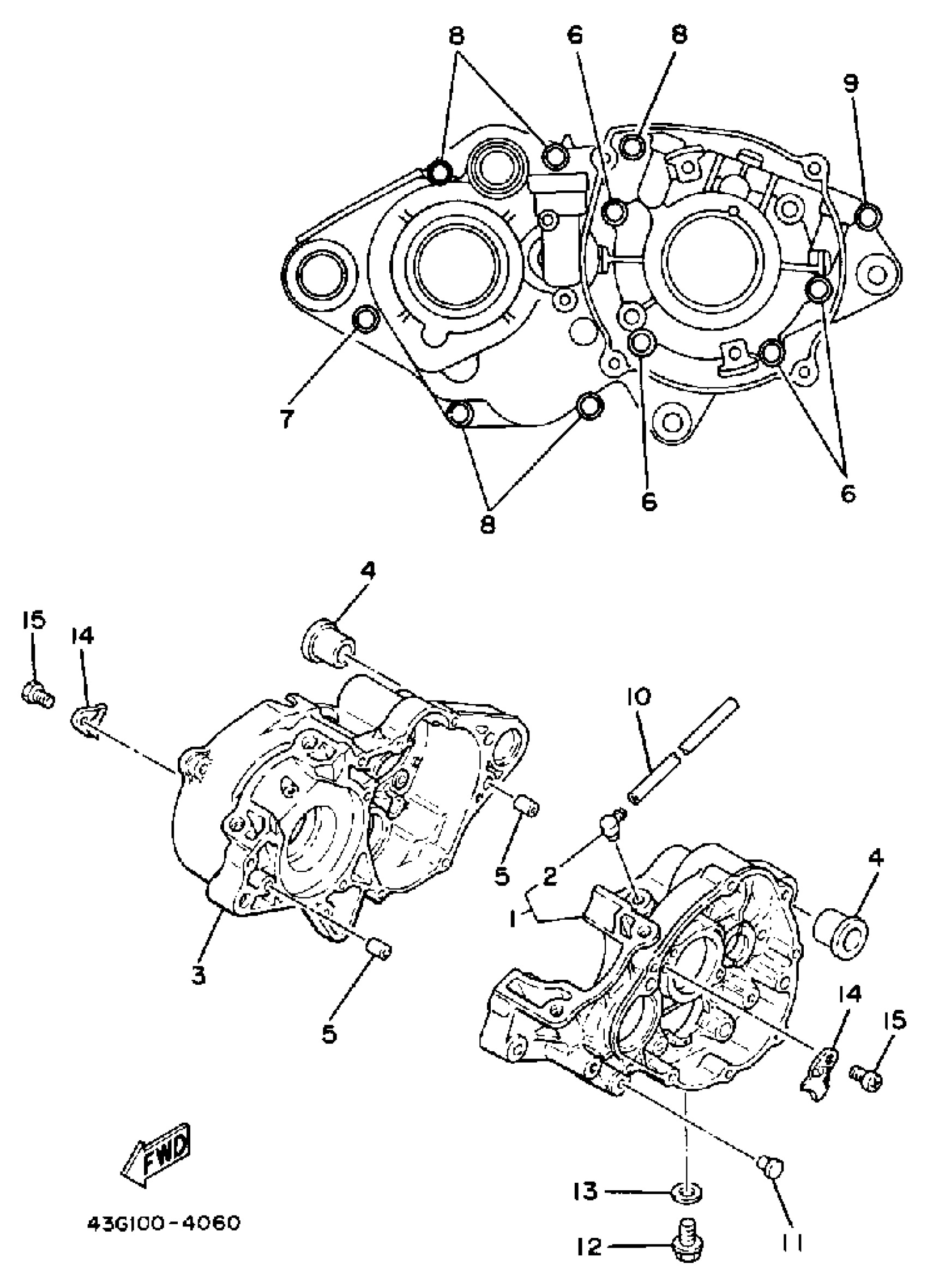

Yamaha IT200L (IT200) 1984 CRANKCASE Diagram

CRANKCASE 1

CONNECTOR, SUCTION PIPE

CRANKCASE 2

COLLAR

PIN, DOWEL(3VD)

BOLT,SOCKET

BOLT,SOCKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

BOLT,SOCKET

HOSE (L340)

PLUG (17J)

PLUG, STRAIGHT SCREW (22F)

GASKET (3JD1)

HOLDER

SCREW, PAN
