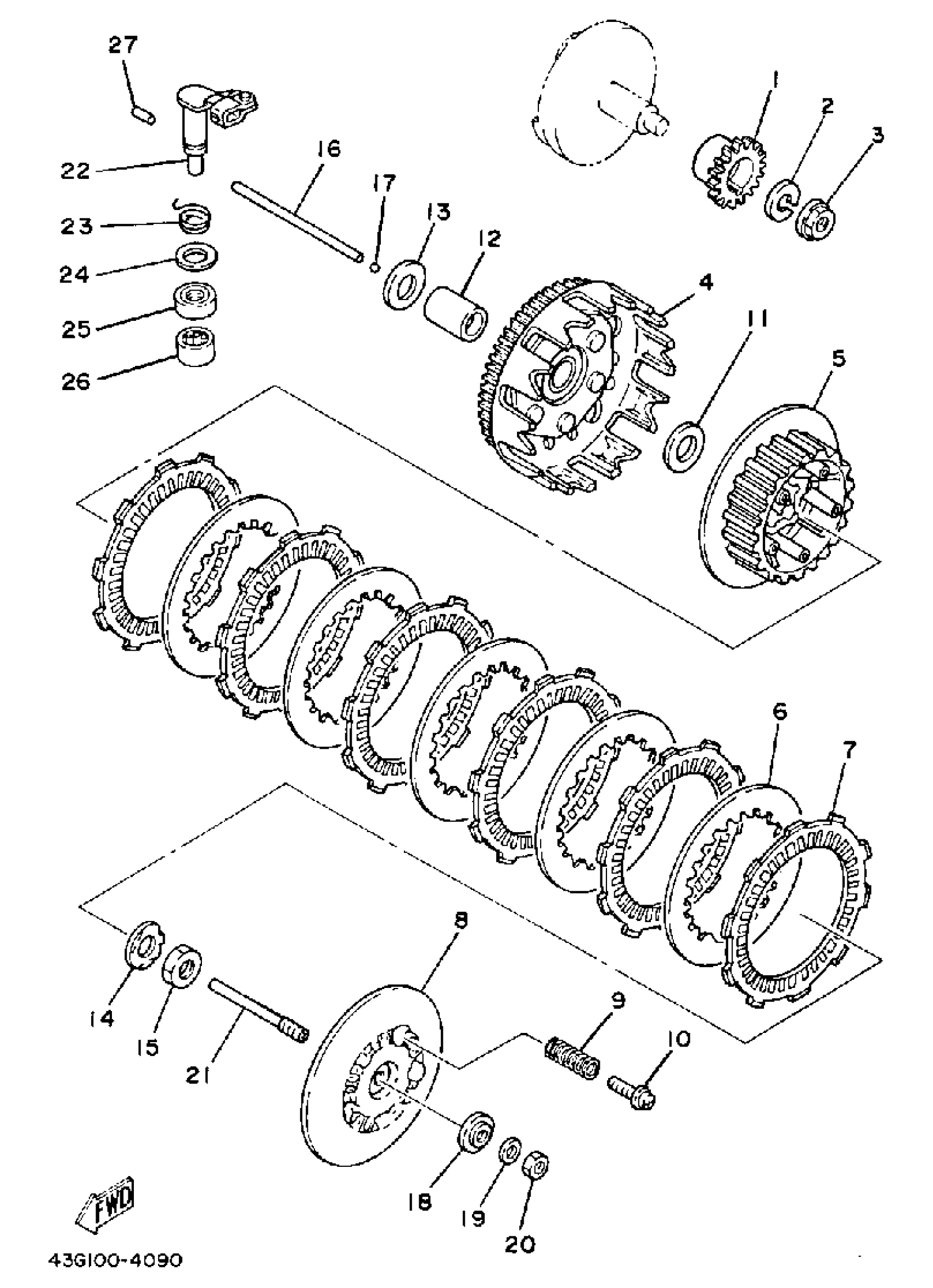

Yamaha IT200L (IT200) 1984 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

43G-16111-00-YX

Unavailable

2

WASHER, SPRING (1W1)

90204-12007-00

$8.49

3

NUT (4V2)

90179-12335-00

Unavailable

4

PRI DRVN GEAR

43G-16150-00-00

Unavailable

5

BOSS, CLUTCH

43G-16371-00-00

Unavailable

6

PLATE, CLUTCH 2

137-16325-80-00

$16.49

7

PLATE, FRICTION

537-16321-00-00

$17.49

8

. PLATE, PRESSURE 1

1W1-16351-00-00

Unavailable

9

SPRING COMPRESSION137163336000

90501-20124-00

$8.49

10

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

11

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

12

SPACER

90560-17335-00

Unavailable

13

WASHER, PLATE (4V2)

90201-174E1-00

$8.49

14

WASHER, LOCK (2K6)

90215-14204-00

$9.49

15

NUT, HEXAGON

90170-14171-00

$9.49

16

ROD, PUSH (2)

353-16357-00-00

Unavailable

17

BALL

93503-16003-00

Unavailable

18

PLATE, PUSH

1W1-16358-01-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

ROD, PUSH

1W1-16356-02-00

Unavailable

22

PUSH LEVER ASSEMBLY

3R3-16380-02-00

Unavailable

23

SPRING, TORSION

90508-14426-00

Unavailable

24

WASHER PLATE 150251530000

90201-14217-00

Unavailable

25

OIL SEAL, SD-TYPE

93102-14308-00

Unavailable

26

BEARING, CYLINDRICAL (3R3)

93315-21429-00

Unavailable

27

PIN, DOWEL (409)

93604-16092-00

Unavailable
