Description

Price

1

FENDER, FRONT

3R9-21511-11-00

$43.99

2

WASHER, PLATE

90201-06020-00

$9.49

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

3R6-21610-11-00

Unavailable

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

GROMMET

90480-14198-00

$9.49

13

COLLAR

90387-06158-00

$8.49

14

GUARD, MUD

(5X8-21620-00-00)

Unavailable

15

. DAMPER

565-21746-00-00

Unavailable

16

. GUARD, FLAP

5X3-21642-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-01-00

Unavailable

18

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

19

SCREW, PAN

98507-06014-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

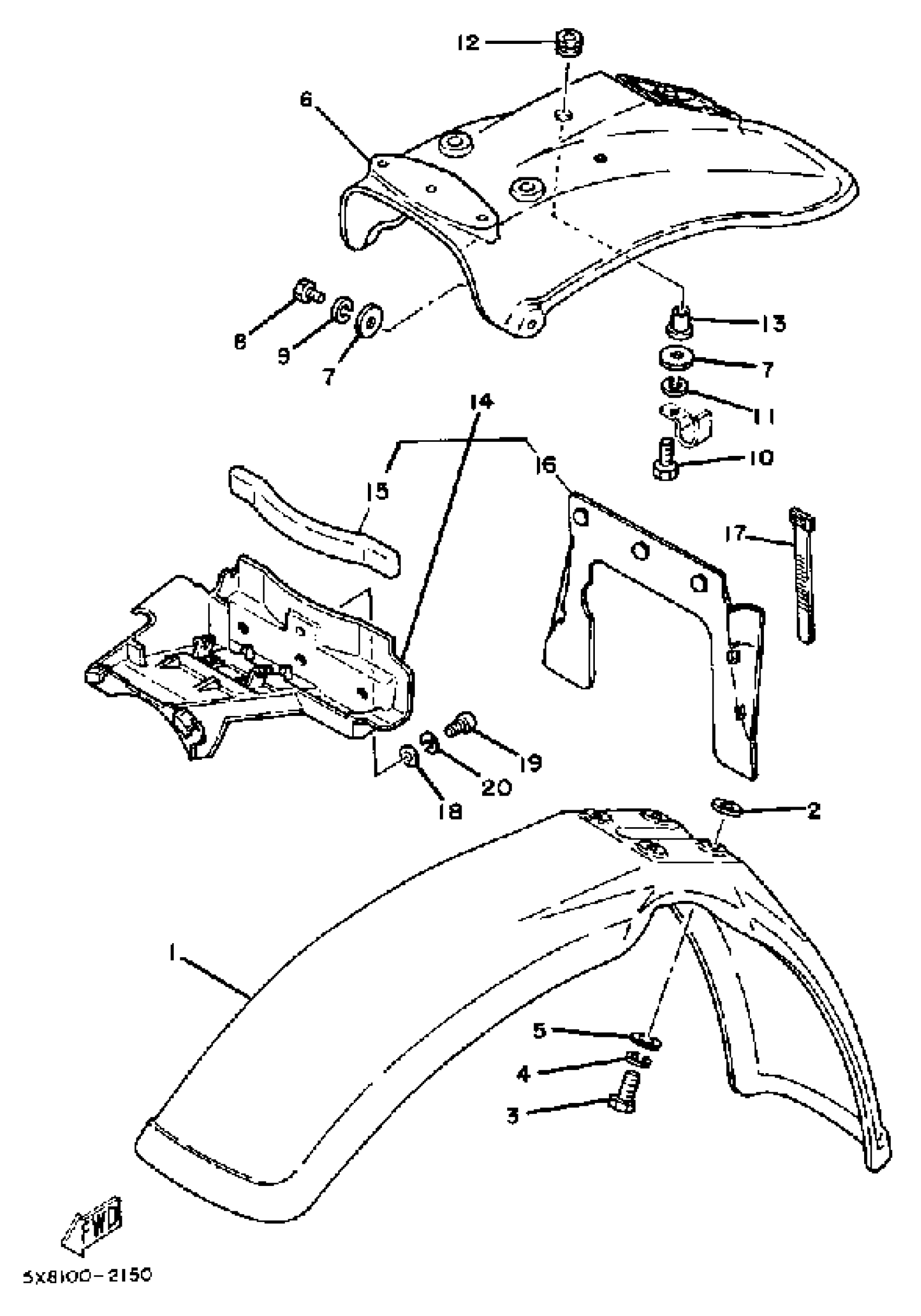

Yamaha IT175K (IT175) 1983 FRONT FENDER - REAR FENDER Diagram

FENDER, FRONT

WASHER, PLATE

BOLT(3DM)

WASHER, SPRING

WASHER (3R8)

FENDER, REAR

WASHER, PLATE (583 REAR FENDER

BOLT(8CP)

WASHER, SPRING

BOLT, HEXAGON

WASHER, SPRING

GROMMET

COLLAR

GUARD, MUD

. DAMPER

. GUARD, FLAP

BAND, SWITCH CORD

WASHER, PLATE (583 REAR FENDER

SCREW, PAN

WASHER, SPRING
