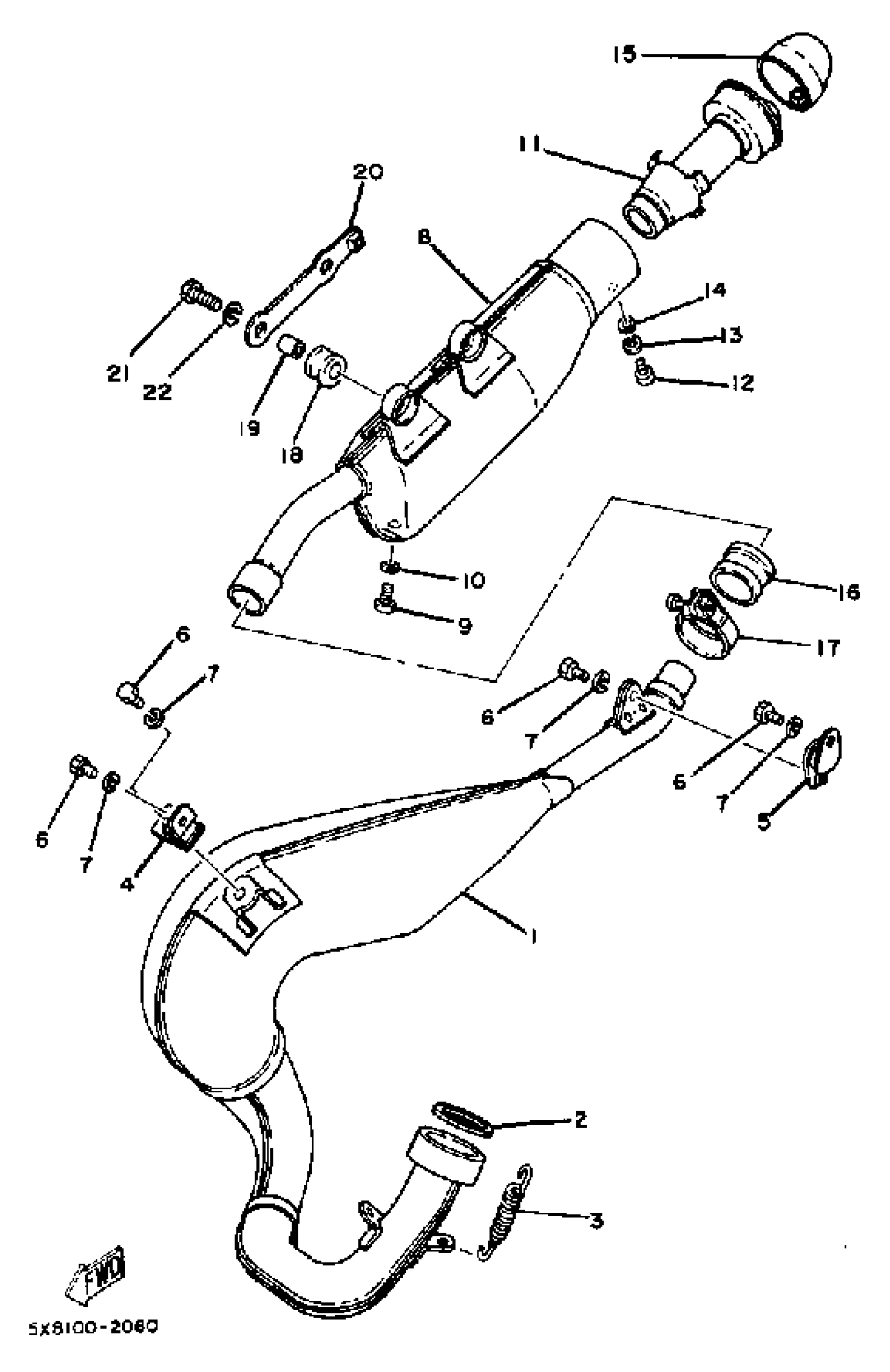

Yamaha IT175K (IT175) 1983 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

5X8-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

3R6-14613-01-00

$27.99

3

SPRING, TENSION (1W4)

90507-20030-00

$14.99

4

STAY, MUFFLER 2

1M1-14772-00-00

Unavailable

5

STAY, MUFFLER 1

565-14771-01-00

$18.49

6

BOLT (661)

97013-06012-00

$5.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

SILENCER, EXHAUST

(5X8-14753-01-00)

Unavailable

9

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

PIPE, OUTLET

5X8-14752-01-00

Unavailable

12

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

CAP, SILENCER

1W2-14787-00-00

Unavailable

16

GASKET, MUFFLER

5X8-14714-00-00

Unavailable

17

CLAMP, HOSE

90460-39202-00

Unavailable

18

GROMMET

90480-22269-00

Unavailable

19

COLLAR

90387-081A3-00

Unavailable

20

STAY, MUFFLER 1

5X8-14771-00-00

Unavailable

21

BOLT, HEXAGON

97013-08030-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
