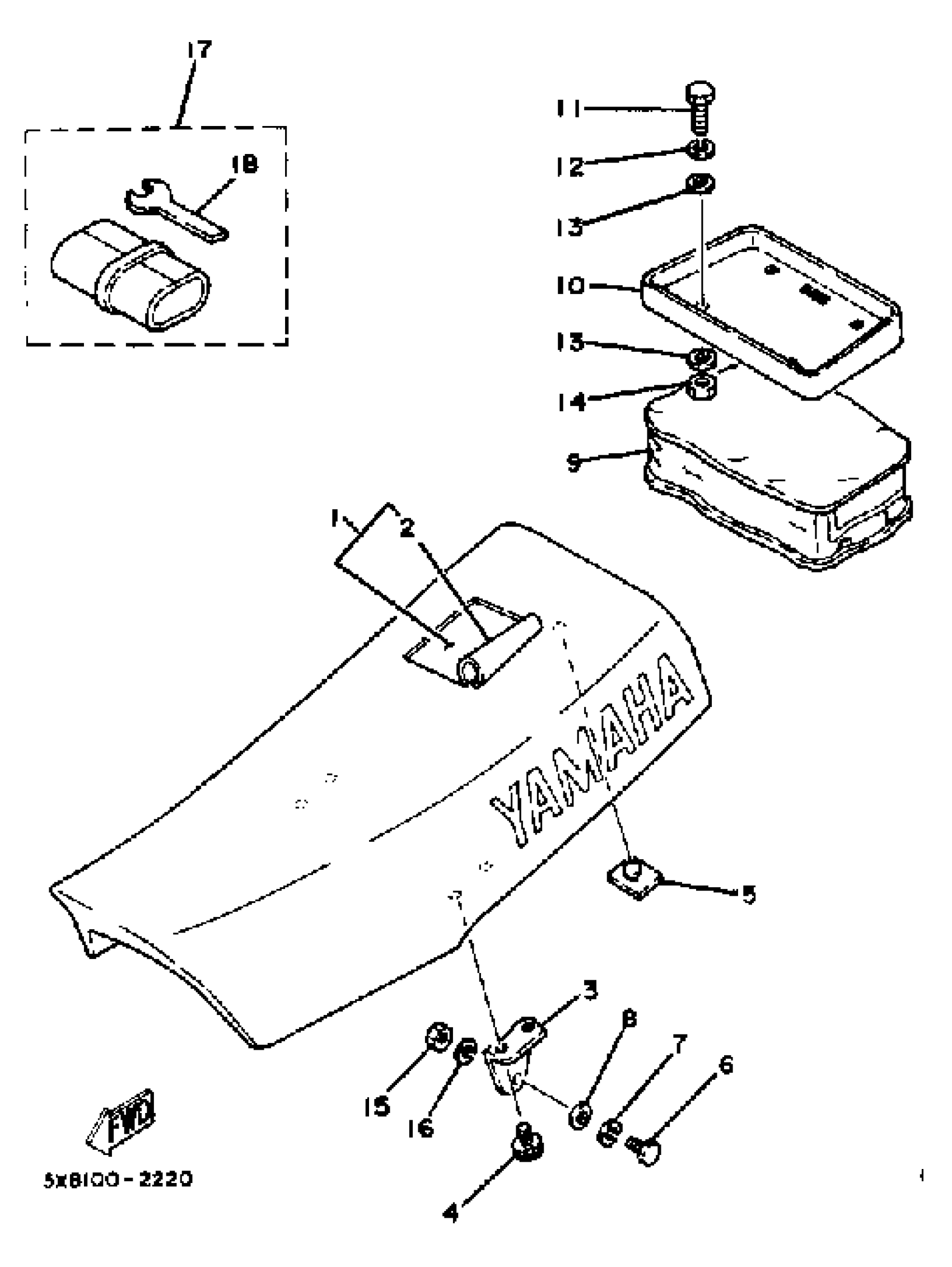

1982 Yamaha IT175 (IT175J) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha IT175 (IT175J) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL-SEAT ASSEMBLY

5X8-W2473-00-00

1
Out of stock

2

. COVER, SM-DBL SEAT

5X8-24771-00-00

1
Out of stock

3

BRACKET, SEAT

1W1-24738-00-00

1
Out of stock

4

BOLT (583)

90101-06304-00

1

$5.85

In stock

5

DAMPER, SEAT

509-24724-00-00

1

$9.46

In stock

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

9

CARRIER BOX ASSEMBLY

4V5-24850-00-00

1
Out of stock

10

BRACKET, CARRIER 2

4V5-24833-00-00

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

1

$6.42

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

TOOL KIT

1W2-W2810-00-00

1
Out of stock

18

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock
