1982 Yamaha IT175 (IT175J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

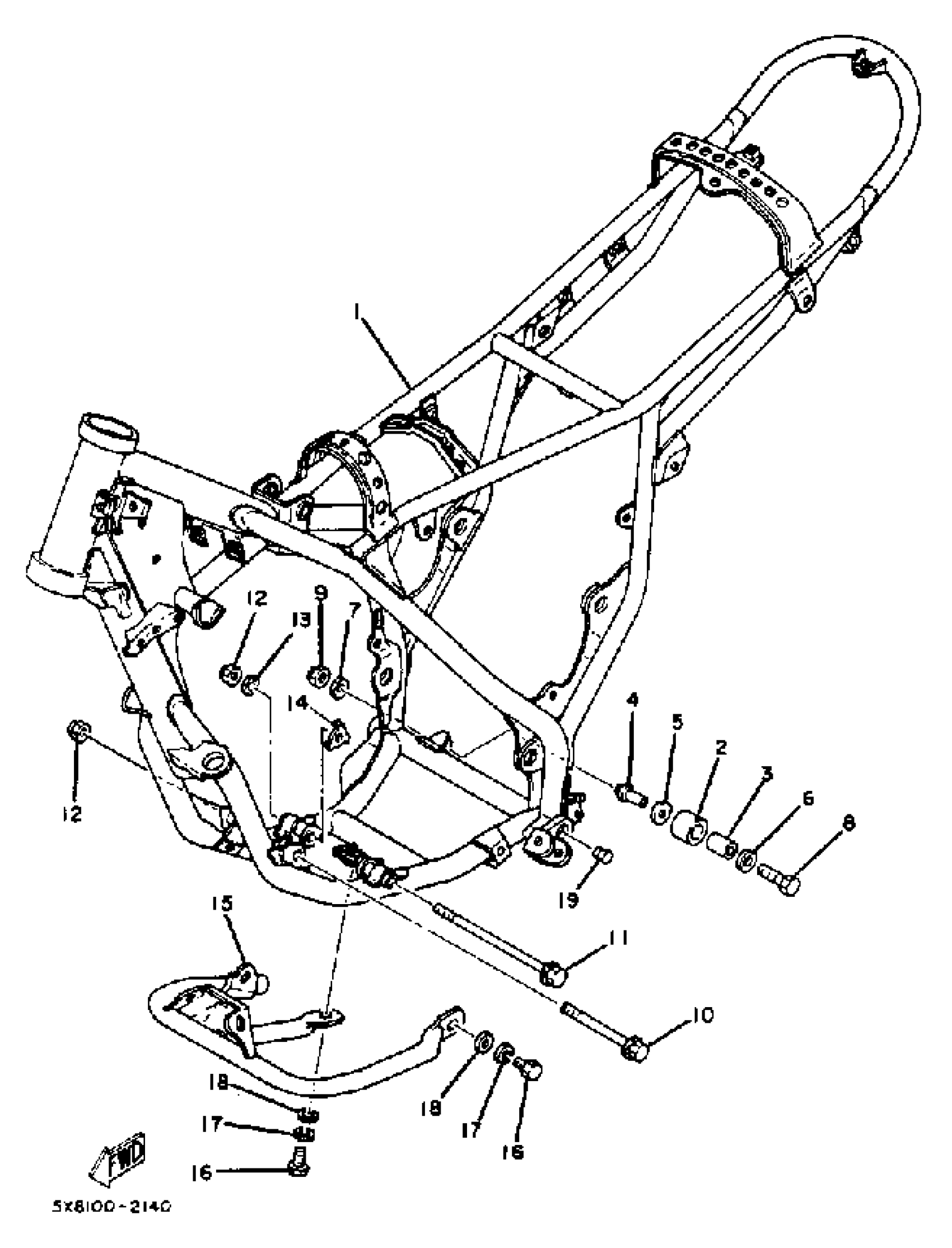

1982 Yamaha IT175 (IT175J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5X8-21110-00-33)

1
Out of stock

2

TENSIONER

30X-22178-00-00

1
Out of stock

3

BUSH

4V4-22184-00-00

1

$3.57

In stock

4

SHAFT

3R3-2148A-00-00

1
Out of stock

5

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

6

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

7

WASHER, PLATE

90201-08638-00

1
Out of stock

8

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

9

NUT, U

95617-08100-00

1

$6.78

In stock

10

BOLT, FLANGE

95817-08100-00

1

$4.32

In stock

11

BOLT, WASHER BASED

90105-08473-00

1
Out of stock

12

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

WASHER, CLAW

90214-09019-00

1
Out of stock

15

GUARD, ENGINE 1

5X8-2147A-00-00

1
Out of stock

16

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

19

PLUG

90338-12131-00

1
Out of stock
