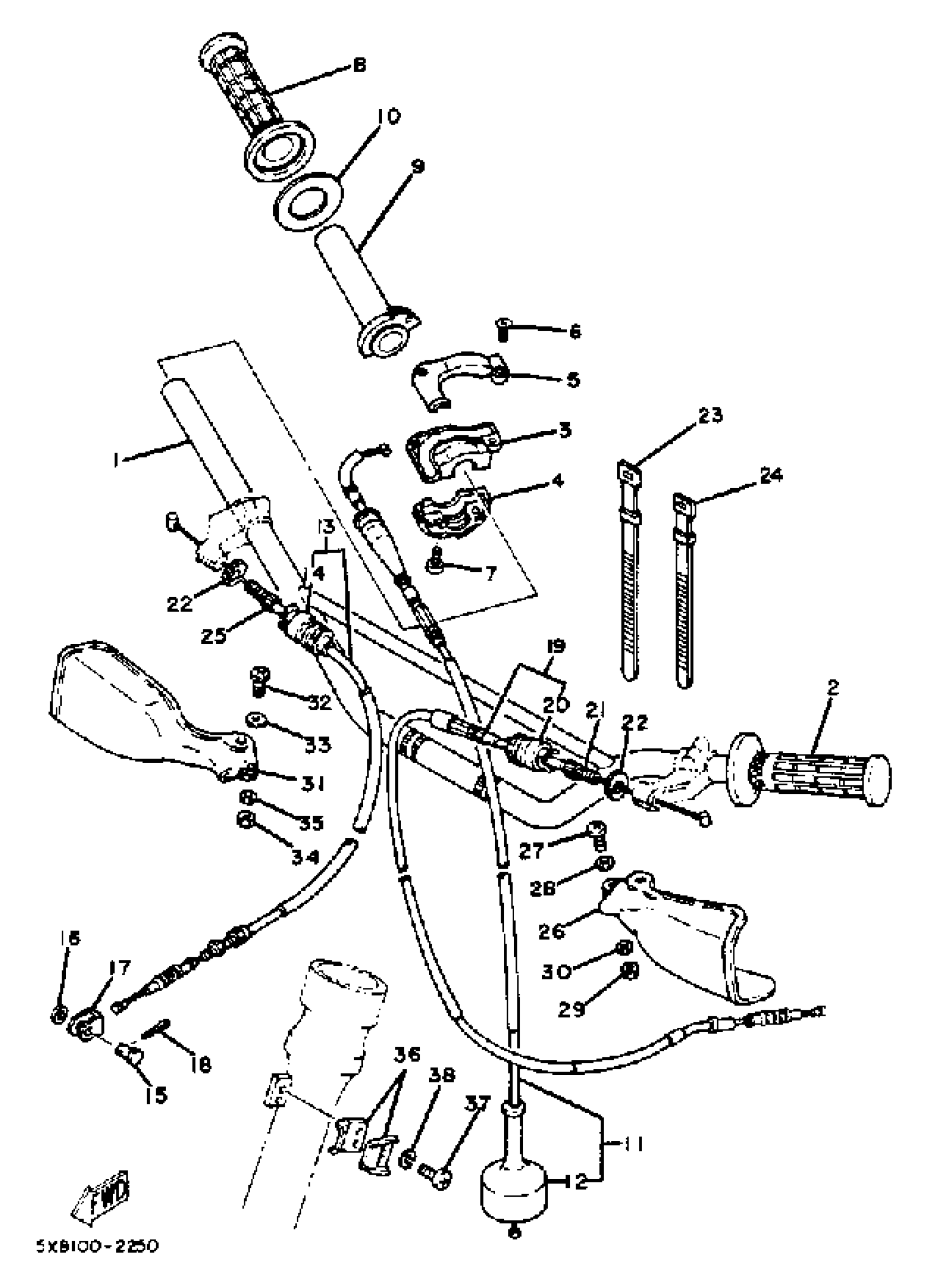

Yamaha IT175J (IT175) 1982 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLE

3G7-26111-00-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$33.99

3

CAP, GRIP UPPER

5X2-26281-00-00

$37.99

4

CAP, GRIP UNDER

322-26282-00-00

$28.99

5

CAP, WIRE

5X2-2628H-01-00

$27.99

6

SCREW, FLAT

98707-04012-00

$2.18

7

SCREW, PAN HEAD

90157-05M19-00

Unavailable

8

GRIP (R.H)

1LX-26242-01-00

$34.99

9

TUBE, THROTTLE GUIDE

22W-26243-00-00

$30.99

10

RING, LEAF

1W1-26249-00-00

Unavailable

11

CABLE, THROTTLE 1

5X8-26311-00-00

Unavailable

12

. CAP, RUBBER

500-26329-01-00

Unavailable

13

CABLE, BRAKE

49U-26341-00-00

Unavailable

14

BOOT, WIRE

1E6-26342-00-00

$30.99

15

PIN W/HOLE 307181180000

90240-08013-00

$8.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

JOINT, WIRE

156-26347-00-00

Unavailable

18

PIN, COTTER

91490-20025-00

Unavailable

19

CABLE, CLUTCH

5X8-26335-00-00

Unavailable

20

BOOT, WIRE

1E6-26342-00-00

$30.99

21

BOLT

90123-08002-00

Unavailable

22

NUT

90179-08030-00

Unavailable

23

BAND, SWITCH CORD

437-83936-11-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable

25

BOLT

90123-08002-00

Unavailable

26

GUARD, BRUSH 1

3R9-26141-00-00

Unavailable

27

SCREW, PAN

98507-06014-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

NUT(650)

95380-06700-00

Unavailable

30

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

31

GUARD, BRUSH 2

3R9-26142-00-00

Unavailable

32

SCREW, PAN

98507-06014-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

NUT(650)

95380-06700-00

Unavailable

35

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

36

CLAMP(26A)

90465-16258-00

Unavailable

37

SCREW, PAN

98507-06014-00

Unavailable

38

WASHER, SPRING

92995-06100-00

Unavailable
