1982 Yamaha IT175 (IT175J) Fuel Tank Diagram

← All diagrams

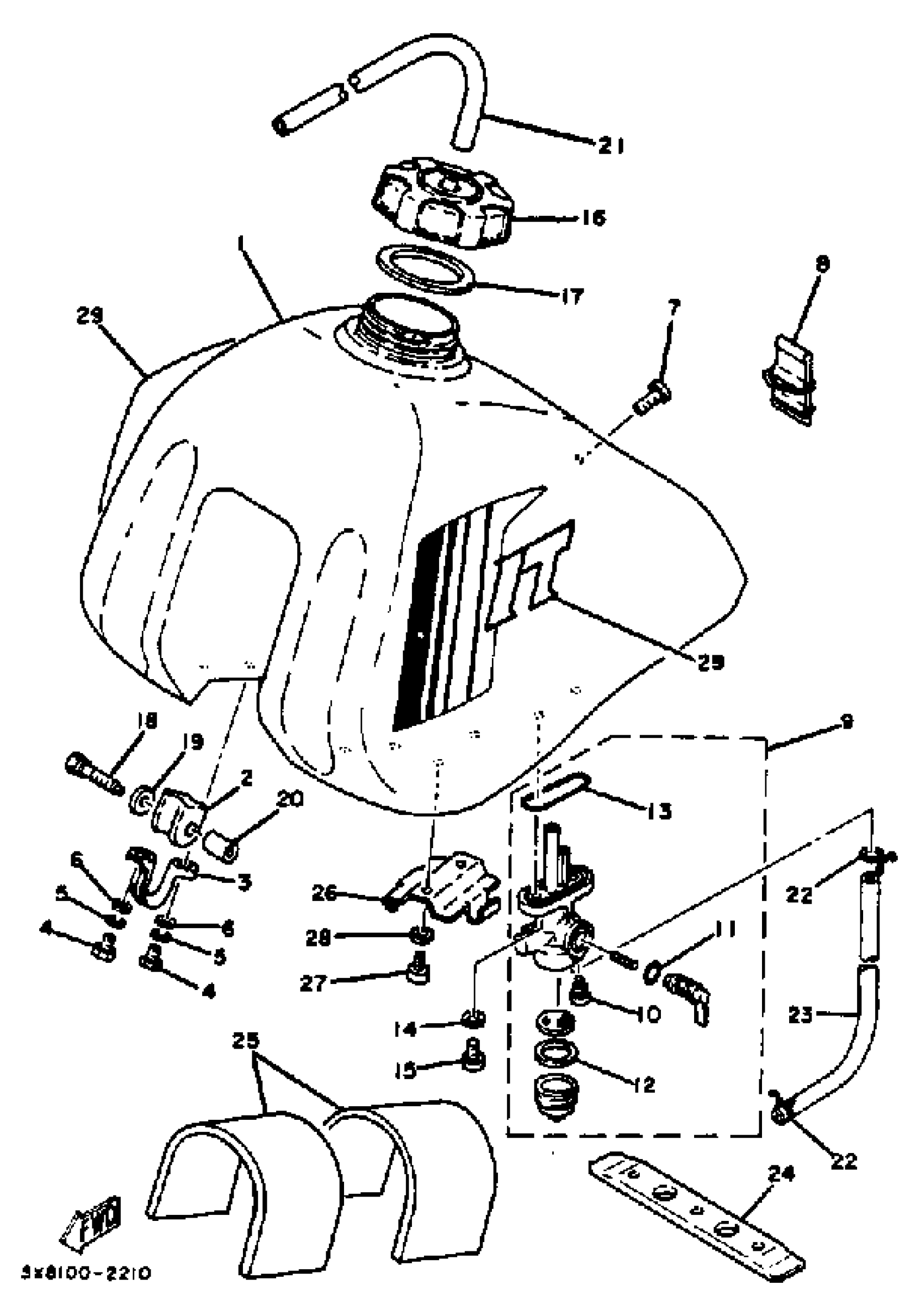

Find the part on the Fuel Tank diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha IT175 (IT175J) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

5X8-24110-00-00

1
Out of stock

2

DAMPER, TANK LOCATING 2

1W1-24182-01-00

1

$27.96

In stock

3

HOLDER, DAMPER

1W1-24144-01-00

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

SCREW(3JM)

90149-06306-00

1

$2.80

In stock

8

BAND, TANK FITTING 1

59V-24173-00-00

1

$15.83

In stock

9

FUEL COCK ASSEMBLY 1

3R9-24500-00-00

1
Out of stock

10

. SCREW, LVR FITTING

2N3-24535-00-00

1
Out of stock

11

O-RING

2N3-24528-00-00

—

$2.97

In stock

12

. GASKET

357-24522-10-00

1
Out of stock

13

O-RING

2W6-24512-00-00

1

$6.72

In stock

14

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

15

SCREW 256241430000

90149-06011-00

1

$1.58

In stock

16

CAP ASSY

5MV-24610-00-00

—

$54.48

In stock

17

GASKET,CAP

3R9-24612-00-00

1
Out of stock

18

BOLT, WITH WASHER

90119-06022-00

1
Out of stock

19

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

20

COLLAR, LEVER 1

36Y-83913-01-00

—

$8.94

In stock

21

HOSE (L370)

90445-112E1-00

—

$20.43

In stock

22

CLIP

90467-100A1-00

—
Out of stock

23

HOSE (L545)

90445-09361-00

1
Out of stock

24

DAMPER, LOCATING 1

3R4-24181-00-00

1
Out of stock

25

DAMPER, LOCATING 3

1W1-24183-00-00

1
Out of stock

26

STAY,CHAMBER

4AA-2415F-00-00

1
Out of stock

27

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

GRAPHIC SET

(5X8-24240-09-00)

1
Out of stock
