1982 Yamaha IT175 (IT175J) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

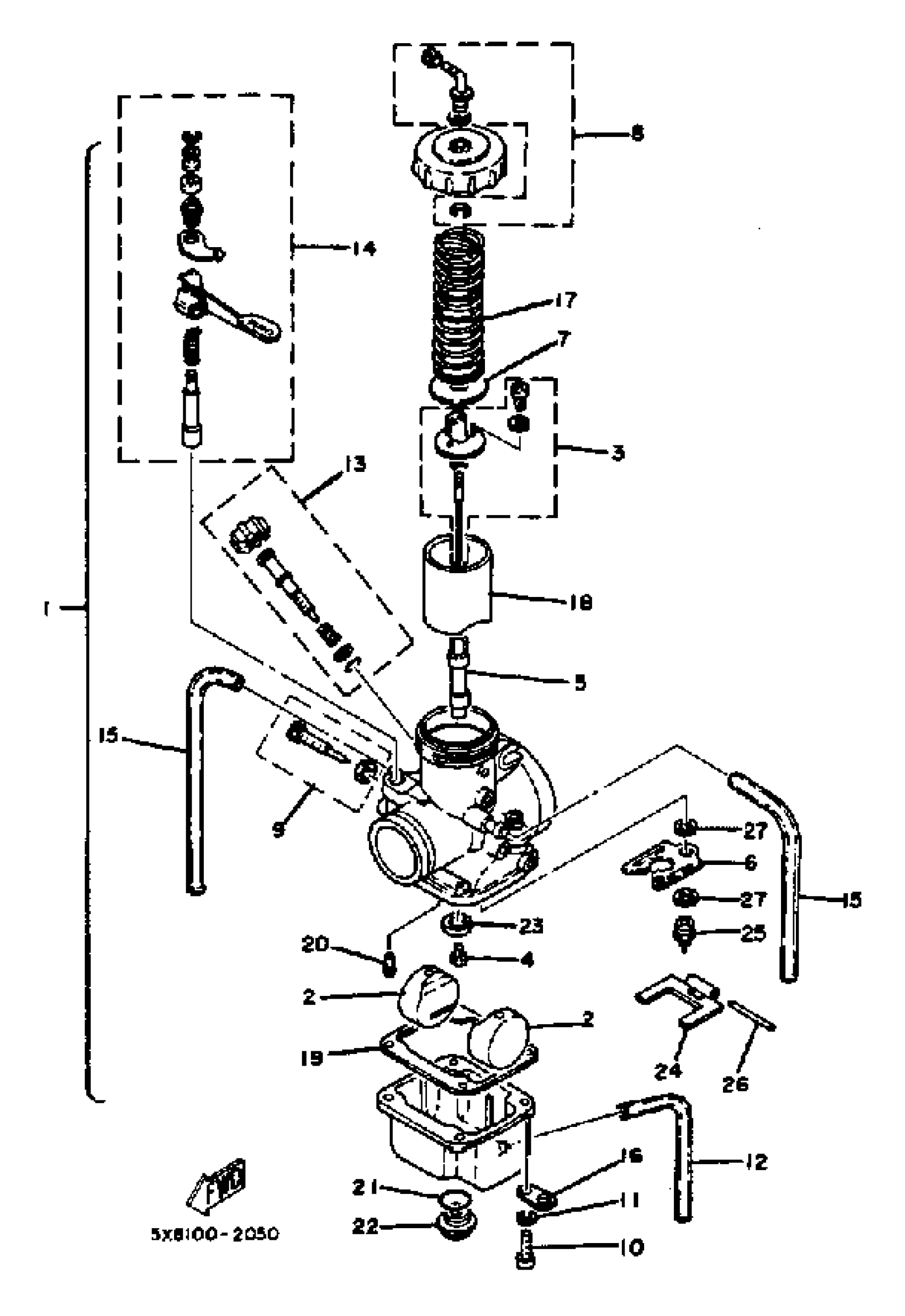

1982 Yamaha IT175 (IT175J) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(5X8-14101-10-00)

1
Out of stock

2

. FLOAT

310-14185-00-00

1
Out of stock

3

. NEEDLE SET (6F21)

239-W1418-00-00

1
Out of stock

4

JET, MAIN #310

137-14143-62-A1

—
Out of stock

4

JET, MAIN #320

137-14143-64-00

—

$9.89

In stock

4

JET, MAIN #330

137-14143-66-A1

—
Out of stock

5

. NOZZLE, MAIN P-4

239-14141-44-00

1
Out of stock

6

. PLATE

483-14146-00-00

1
Out of stock

7

. SEAT, SPRING

509-14136-00-00

1
Out of stock

8

. ADJUSTER SET

3R3-W1415-00-00

1
Out of stock

9

. THROTTLE SCREW SET

204-W1411-00-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

PIPE, OVER FLOW

2J2-14196-00-00

1

$30.20

In stock

13

. AIR SCREW SET

2X3-W1412-00-00

1
Out of stock

14

. STARTER PLNGR SET

1W1-W1414-00-00

1
Out of stock

15

HOSE

89A-14987-00-00

—

$12.62

In stock

16

. PLATE

313-14146-00-00

1
Out of stock

17

. SPRING, THROTTLE VALVE

363-14131-00-00

1
Out of stock

18

. VALVE, THROTTLE 1

5X8-14112-20-00

1
Out of stock

19

GASKET, FLOAT CHAMBER

483-14184-00-00

—

$17.72

In stock

20

. JET, PILOT #60

193-14142-60-00

1
Out of stock

21

O-RING (541)

558-14147-00-00

—
Out of stock

22

PLUG, SCREW

500-14115-00-00

—

$25.29

In stock

23

WASHER, MAIN JET

(1G8-14153-00-00)

1
Out of stock

24

. ARM, FLOAT

310-14187-00-00

1
Out of stock

25

NEEDLE VALVE SET

24X-14107-33-00

—

$44.94

In stock

26

PIN, FLOAT

127-14186-00-00

—

$6.23

In stock

27

WASHER,VALVE SEAT

239-14195-00-00

—

$11.47

In stock
