Description

Price

1

FENDER, FRONT

3R9-21511-11-00

$43.99

2

WASHER, PLATE

90201-06020-00

$9.49

3

BOLT(3DM)

97024-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER (3R8)

90209-06187-00

$8.49

6

FENDER, REAR

3R6-21610-11-00

Unavailable

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

8

BOLT(8CP)

97017-06014-00

$8.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER, SPRING

92995-06100-00

Unavailable

12

GROMMET

90480-14198-00

$9.49

13

COLLAR

90387-06158-00

$8.49

14

GUARD, MUD

(5X8-21620-00-00)

Unavailable

15

. DAMPER

565-21746-00-00

Unavailable

16

. GUARD, FLAP

5X3-21642-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-01-00

Unavailable

18

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

19

SCREW, PAN

98507-06014-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

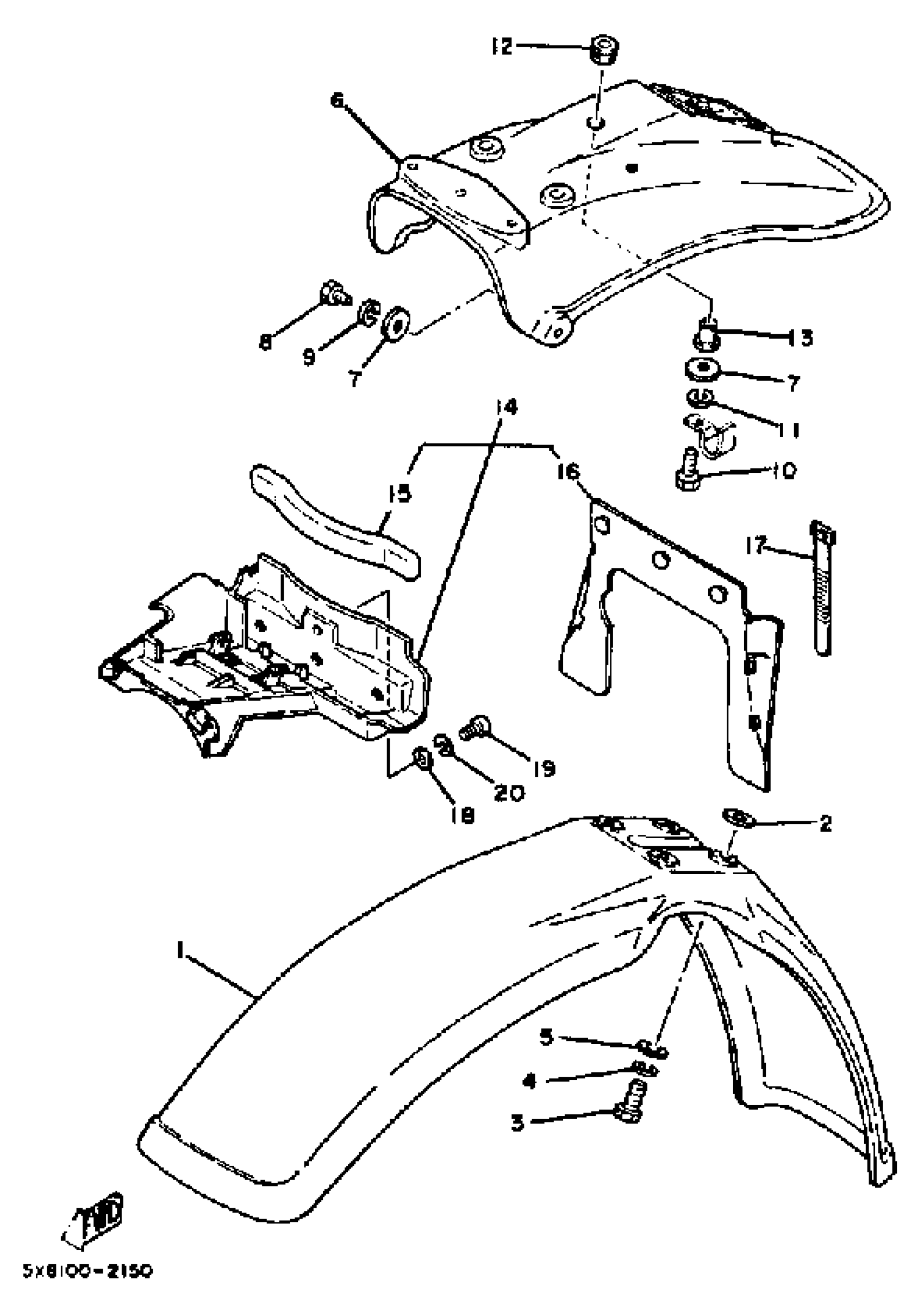

Yamaha IT175J (IT175) 1982 FENDER Diagram

FENDER, FRONT

WASHER, PLATE

BOLT(3DM)

WASHER, SPRING

WASHER (3R8)

FENDER, REAR

WASHER, PLATE (583 REAR FENDER

BOLT(8CP)

WASHER, SPRING

BOLT, HEXAGON

WASHER, SPRING

GROMMET

COLLAR

GUARD, MUD

. DAMPER

. GUARD, FLAP

BAND, SWITCH CORD

WASHER, PLATE (583 REAR FENDER

SCREW, PAN

WASHER, SPRING
