1982 Yamaha IT175 (IT175J) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

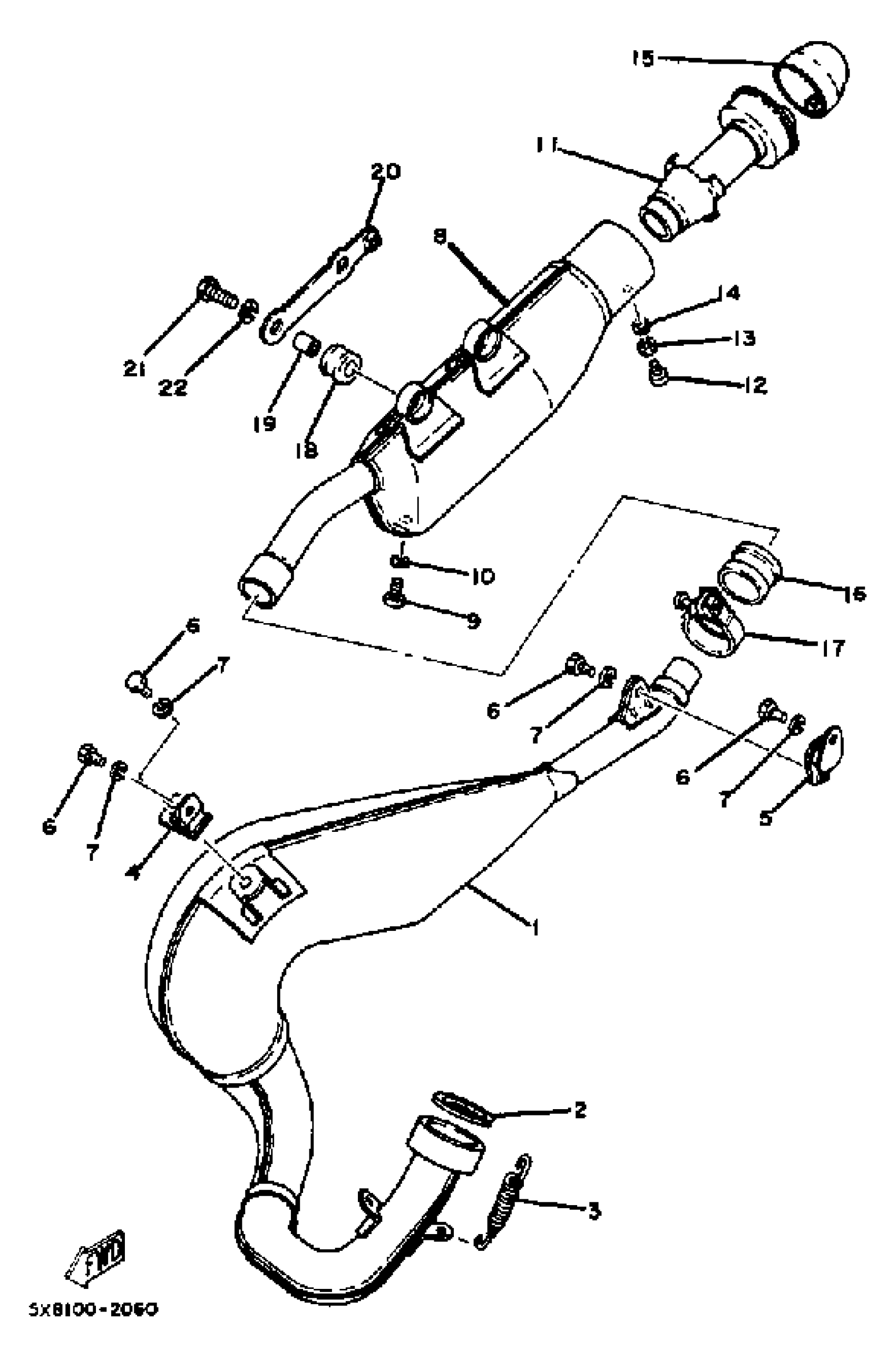

1982 Yamaha IT175 (IT175J) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

5X8-14610-00-00

1
Out of stock

2

GASKET, EXHAUST PIPE

3R6-14613-01-00

1

$22.14

In stock

3

SPRING, TENSION (1W4)

90507-20030-00

1
Out of stock

4

STAY, MUFFLER 2

1M1-14772-00-00

1
Out of stock

5

STAY, MUFFLER 1

565-14771-01-00

1

$16.68

In stock

6

BOLT (661)

97013-06012-00

1

$4.71

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

SILENCER, EXHAUST

(5X8-14753-01-00)

1
Out of stock

9

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

10

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

11

PIPE, OUTLET

5X8-14752-01-00

1
Out of stock

12

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

CAP, SILENCER

1W2-14787-00-00

1
Out of stock

16

GASKET, MUFFLER

5X8-14714-00-00

1
Out of stock

17

CLAMP, HOSE

90460-39202-00

1
Out of stock

18

GROMMET

90480-22269-00

1
Out of stock

19

COLLAR

90387-081A3-00

1
Out of stock

20

STAY, MUFFLER 1

5X8-14771-00-00

1
Out of stock

21

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
