1982 Yamaha IT175 (IT175J) Crankshaft-Piston Diagram

← All diagrams

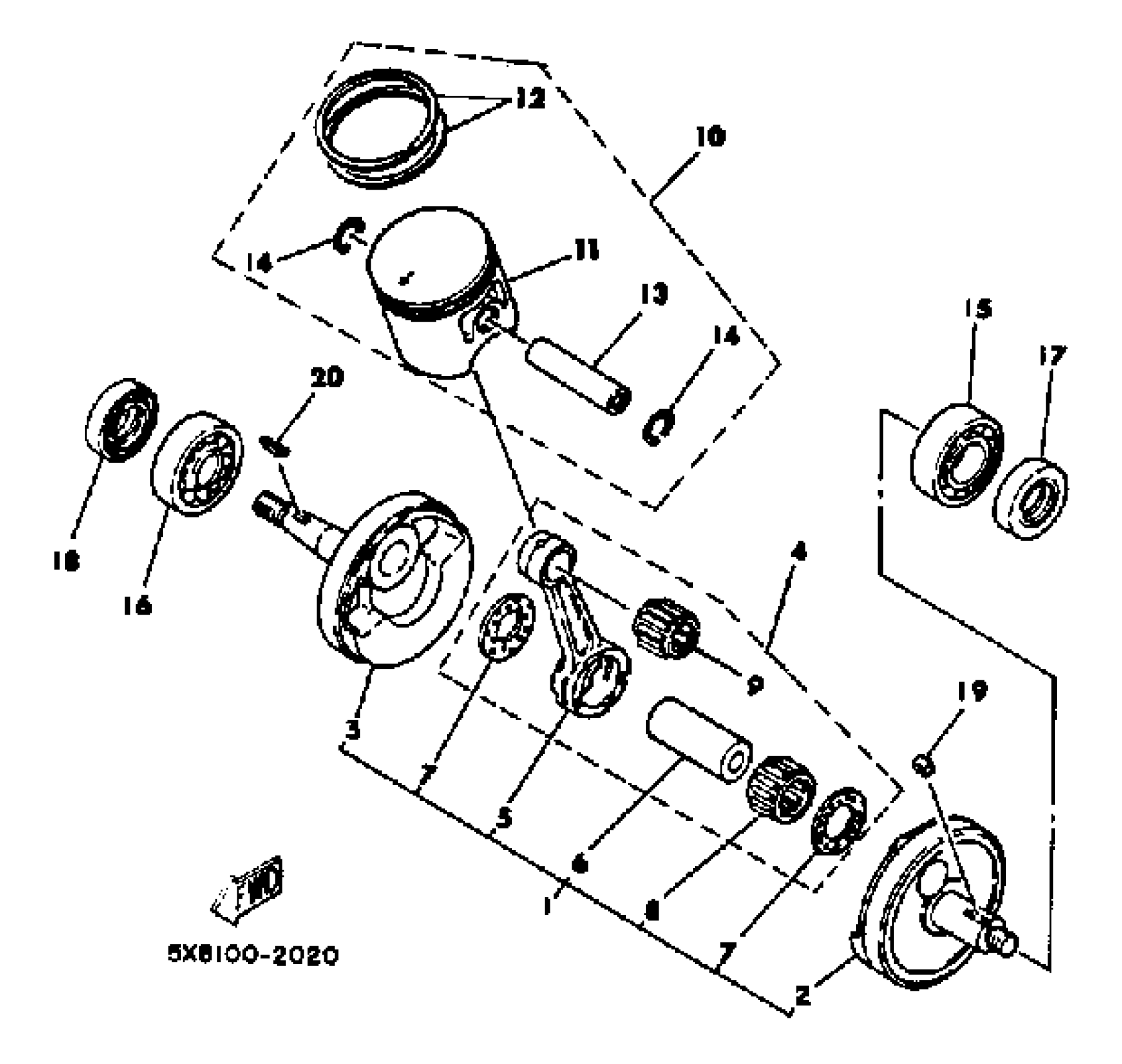

Find the part on the Crankshaft-Piston diagram for your 1982 Yamaha IT175 (IT175J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha IT175 (IT175J) Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

3R6-11400-00-00

1
Out of stock

2

. CRANK 1

3R3-11412-00-00

1
Out of stock

3

. CRANK 2

3R6-11422-00-00

1
Out of stock

4

CONNECTING ROD ASSEMBLY

(3R2-11650-10-00)

1
Out of stock

5

. ROD, CONNECTING

3R2-11651-01-00

1
Out of stock

6

PIN, CRANK 1

3M5-11681-00-00

1

$21.97

In stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

BEARING (3R3)

93310-422H0-00

—

$53.23

In stock

9

1

$23.03

In stock

10

PISTON KIT STD

5X8-11630-00-00

1
Out of stock

11

. PISTON STD

5X8-11631-00-95

1
Out of stock

12

PISTON RING SET (STD)

3JM-11601-00-00

1
Out of stock

13

PIN, PISTON

251-11633-00-00

1

$23.85

In stock

14

CIRCLIP(1AR)

93450-17129-00

1
Out of stock

15

1

$54.91

In stock

16

—

$35.25

In stock

17

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

18

OIL SEAL, SD-TYPE

93102-25258-00

1
Out of stock

19

KEY, STRAIGHT

90282-05038-00

1
Out of stock

20

PISTON RING SET (0.25MM O/S)

3JM-11601-10-00

—
Out of stock

20

PISTON RING SET (0.50MM O/S)

3JM-11601-20-00

—
Out of stock

20

PISTON RINGSET 3RD

43G-11601-30-00

1
Out of stock

20

PISTON RINGSET 4TH

43G-11601-40-00

1
Out of stock

20

PISTON KIT 1ST

5X8-11630-10-00

1
Out of stock

20

PISTON KIT 2ND

5X8-11630-20-00

1
Out of stock

20

PISTON KIT 3RD

5X8-11630-30-00

1
Out of stock

20

PISTON KIT 4TH

5X8-11630-40-00

1
Out of stock

20

PISTON 1 O/S 0.25

5X8-11635-00-00

1
Out of stock

20

PISTON 2 O/S 0.50

5X8-11636-00-00

1
Out of stock

20

PISTON 3 O/S 0.75

5X8-11637-00-00

1
Out of stock

20

PISTON 4 O/S 1.00

5X8-11638-00-00

1
Out of stock

20

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock
