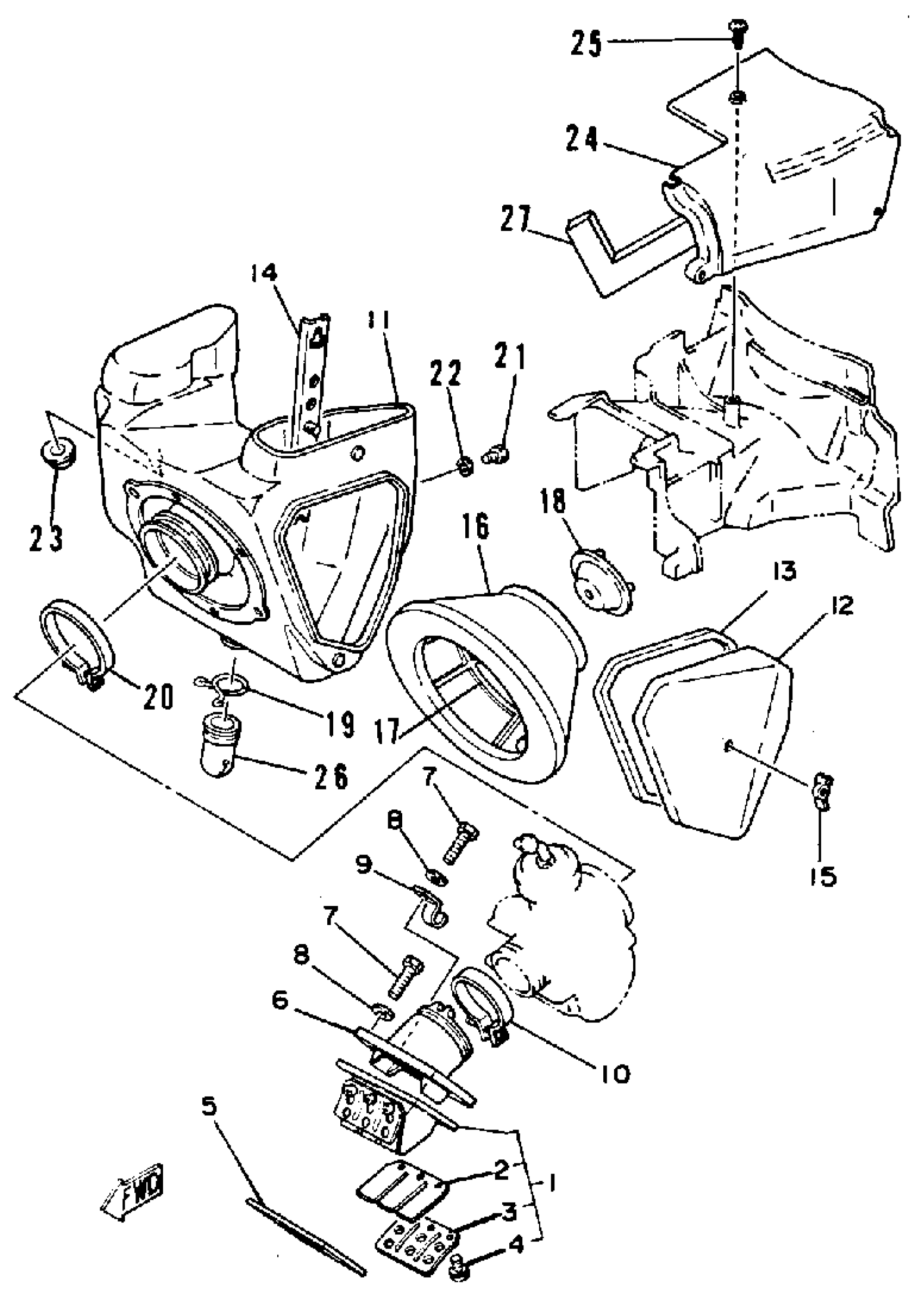

Yamaha IT175H (IT175) 1981 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

43G-13610-00-00

Unavailable

2

. REED, VALVE

3R3-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

55Y-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

GASKET, VALVE SEAT

3R3-13621-01-00

$19.99

6

JOINT, CARBURETOR

3R3-13565-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

CLAMP 363154850100

90462-05005-00

Unavailable

10

CLAMP HOSE 278144550000

90460-49058-00

$7.49

11

AIR CLNR CASE ASSEMBLY

(3R6-14401-01-00)

Unavailable

12

CAP, CLEANER CASE 1

3R3-14412-01-00

Unavailable

13

SEAL

50M-14462-01-00

Unavailable

14

STAY 2

3R3-14494-00-00

Unavailable

15

NUT, WING (646)

90175-06008-00

$2.17

16

ELEMENT, AIR CLNR

3R3-W1442-01-00

Unavailable

17

GUIDE, ELEMENT

3R3-14458-00-00

Unavailable

18

PLATE, ELEMENT FTNG

(3R3-14468-00-00)

Unavailable

19

CLIP

90467-20M15-00

Unavailable

20

HOSE CLAMP ASSY

90450-64004-00

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

GROMMET

90480-13014-00

Unavailable

24

DUCT

(3R6-14437-00-00)

Unavailable

25

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

Unavailable

26

SEAL

1W4-14457-00-00

Unavailable

27

SEAL

(3R6-14457-00-00)

Unavailable
